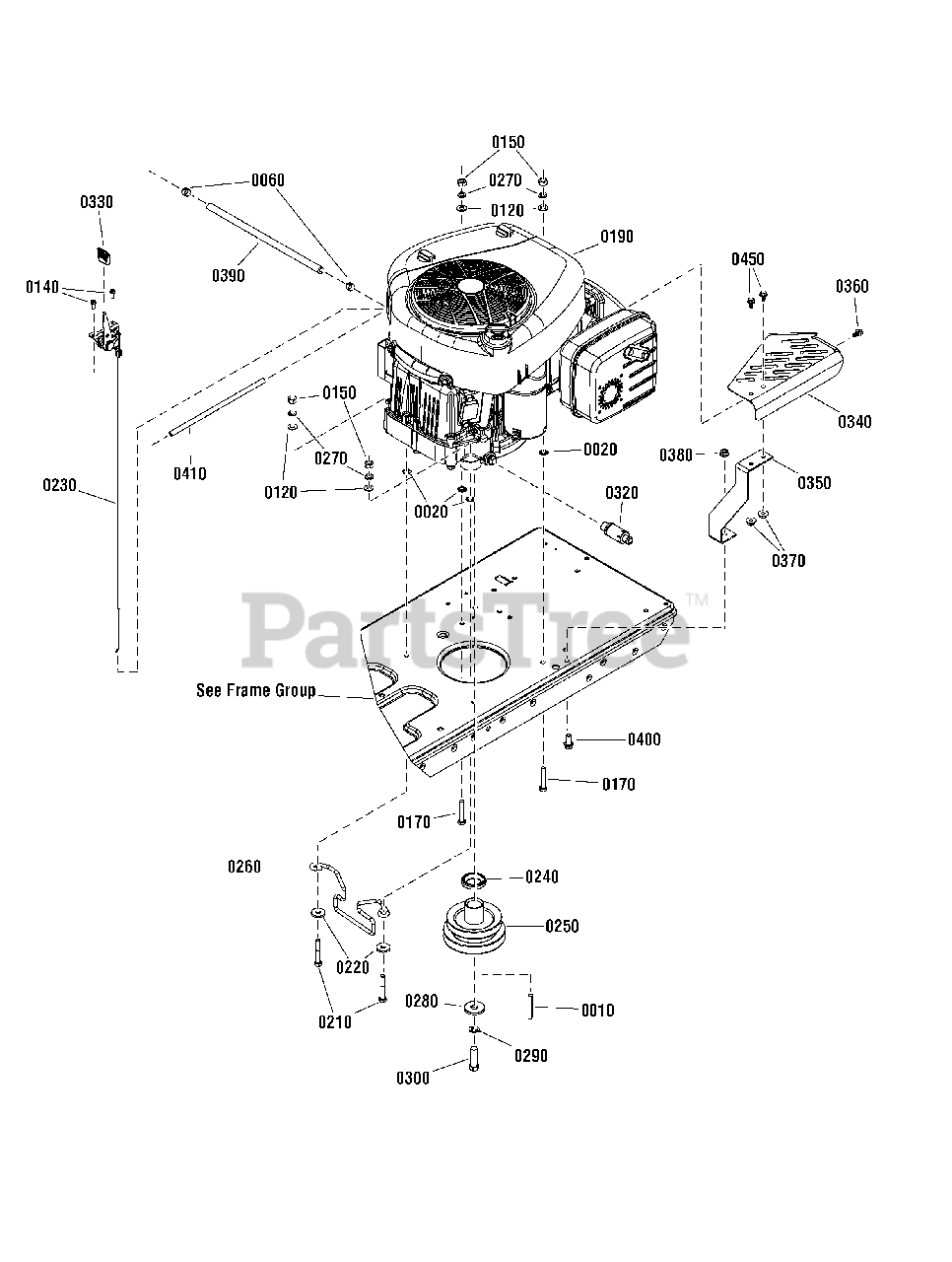

7800933 - Simplicity Coronet 33" Rear-Engine Riding Mower, 14.5hp Engine Group (7503051) Parts Diagram

Coronet 33" Rear-Engine Riding Mower, 14.5hp

Engine Group (7503051) Parts Diagram

  • Title

0010

Simplicity 703890

KEY, 1/4 Square x 2 Long

$5.49

$

In Stock, only 1 left!

0

0020

Simplicity 703297

RETAINER, 5/16, GR5 Zinc/Clear

$3.99

$

In Stock, Qty 6

0

0060

Simplicity 7029900SM

CLAMP, .490 X .31, Fuel Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 5

0

0120

Simplicity 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

$4.49

$

Usually ships in 2-12 days

0

0140

Simplicity 7090913SM

SCREW, 10-24 x 1/2" Hex Washer Self-Tap, Torx, Zinc/Clear
(Superseded to 704060)

$3.99

$

Usually ships in 2-12 days

0

0150

Simplicity 703331

NUT, 5/16-24, Hex, GR5, Zinc/Clear

$4.49

$

In Stock, Qty 14

0

0170

Simplicity 7091513YP

SCREW, 5/16-24 X 1.75, Hex Head Cap, GR5, Zinc/Clear
(Superseded to 5025025X14YP)

$4.49

$

Usually ships in 2-12 days

0

0190

Simplicity 31A507-0144-G5

* ENGINE, 14.5HP, B&S, Mod. 31A507-0144-G5

$

$

Not available

0210

Simplicity 704053

SCREW, 5/16-24 X 2, Hex Head Cap, GR5, Zinc/Clear

$9.99

$

In Stock, only 2 left!

0

0220

Simplicity 703298

WASHER, 5/16 (.34 ID X 1 OD X .13 THK) GR5, Zinc/Clear

$4.49

$

In Stock, Qty 14

0

0230

Simplicity 7105872YP

ASSEMBLY, Throttle Control, 27.6" Long, 1.6" Throw

$27.99

$

Usually ships in 2-12 days

0

0240

Simplicity 721153MA

SPACER, Engine, 1.015 ID, 1.77 OD, .340" Thick
(Superseded to 093077MA)

$16.99

$

In Stock, only 1 left!

0

0250

Simplicity 7105938

PULLEY, Double Stack 4 & 4.5" OD, 1" ID, 3.255 Tall
(Superseded to 7105938YP)

$71.99

$

In Stock, only 1 left!

0

0260

Simplicity 7106040BMYP

GUIDE, Belt, 1/4" Wire, 1" X 4" ID, 3.55" Tall, 7.66" Mount

$15.99

$

Usually ships in 2-12 days

0

0270

Simplicity 703116

WASHER, .32 X .58 X .08, Split Lock, YZ
(Superseded to 5025170SM)

$4.49

$

In Stock, only 3 left!

0

0280

Simplicity 704053

WASHER, .468 ID X 1.5 OD X .19 THK, Special, Zinc/Clear

$9.99

$

In Stock, only 2 left!

0

0290

Simplicity 704007

WASHER, 7/16, Split-Lock, Zinc/Clear

$4.49

$

In Stock, only 3 left!

0

0300

Simplicity 720205

BOLT, 7/16-20 X 1.5, Hex Patch Lock, G5, ZP
(Superseded to 01X140MA)

$5.49

$

In Stock, Qty 9

0

0320

Simplicity 7027972SM

ASSEMBLY, Oil Drain Valve, 2.775" Long

$26.99

$

In Stock, only 4 left!

0

0330

Simplicity 7106008YP

KNOB, Molded Paddle, Black

$5.49

$

Usually ships in 2-12 days

0

0340

Simplicity 7301368BMYP

SHIELD, Muffler, RER

$68.99

$

Usually ships in 2-12 days

0

0350

Simplicity 7301369BMYP

BRACKET, Heatshield Mounting

$18.99

$

Usually ships in 2-12 days

0

0360

Simplicity 1750447YP

SCREW, 1/4-20 x 1/2, Hex Washer Head, Trilob
(Superseded to 704130)

$3.99

$

In Stock, Qty 7

0

0370

Simplicity 703161

NUT, 1/4-20, Hex Flange Whiz Lock, G5, Zinc/Clear

$3.49

$

In Stock, Qty 18

0

0380

Simplicity 703409

NUT, 5/16-18, Serrated Lock Flange, GR5

$5.99

$

In Stock, Qty 20+

0

0390

Simplicity 7200116YP

HOSE, Fuel, Low Perm, 1/4" ID X 14"

$9.49

$

In Stock, only 1 left!

0

0400

Simplicity 9357MA

SCREW, 5/16-18 X .750, Flanged Whiz-Lock, GR5
(Superseded to 703354)

$5.49

$

In Stock, Qty 9

0

0410

Simplicity 7106041YP

HOSE, Vapor, 10" Long

$

$

Not available

0450

Simplicity 7090584YP

BOLT, 1/4-20 x 1/2 Hex Flange Lock, GR 5, ZP
(Superseded to 7091579SM)

$3.99

$

In Stock, only 2 left!

0
