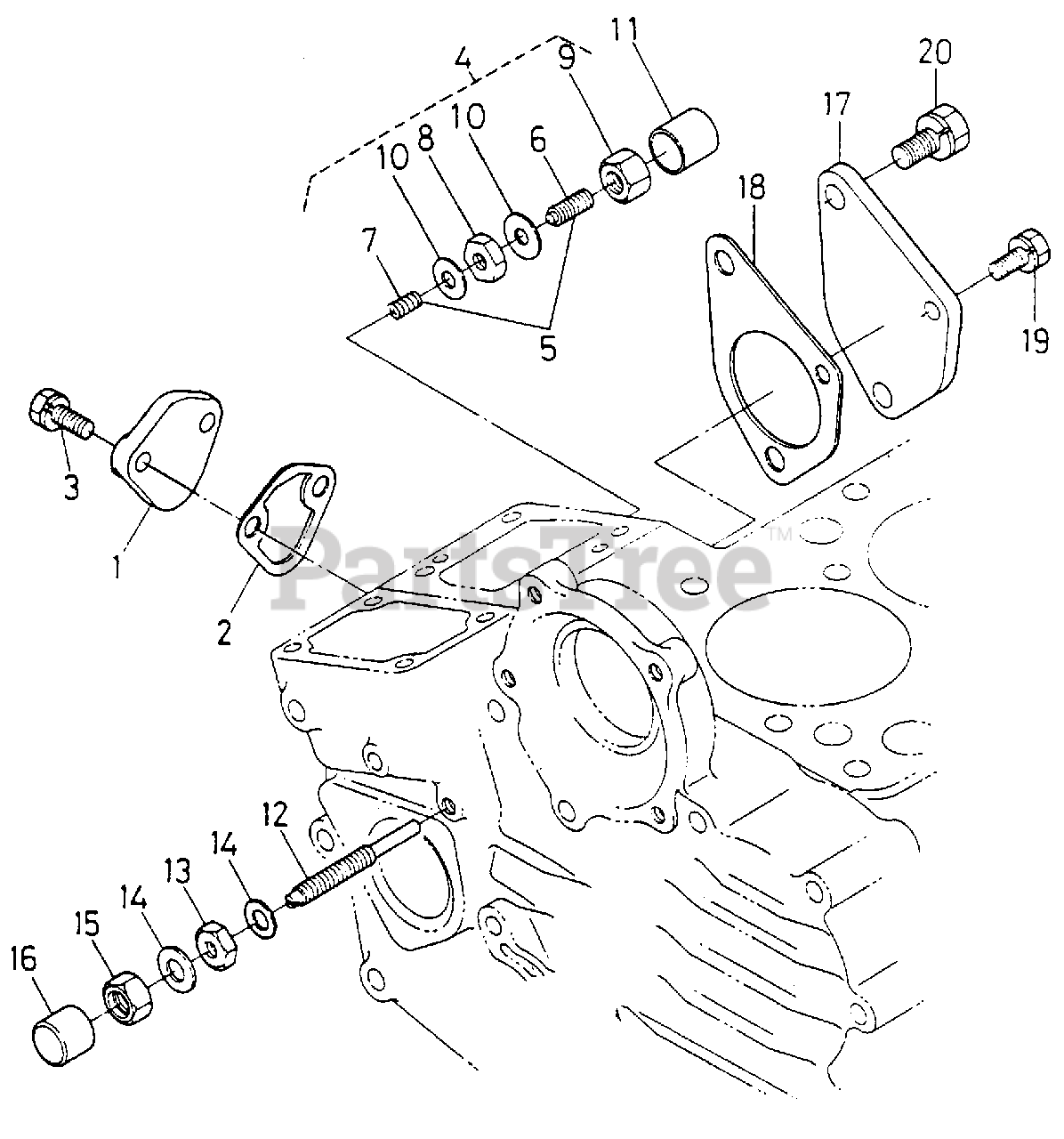

782 D - Cub Cadet Garden Tractor, Diesel Idling Components Parts Diagram

Garden Tractor, Diesel

Idling Components Parts Diagram

  • Title

1

Cub Cadet KB-15852-52850

Cover

$

$

Not available

2

Cub Cadet KB-15841-52140

Gasket

$

$

Not available

3

Cub Cadet KB-01023-50616

Bolt, M6 X 16 Class 8.8 w/Washer

$

$

Not available

4

Cub Cadet KB-15841-54090

Bolt Assy, Idling

Note: (Includes Ref No. 5 thru 10)

$

$

Currently unavailable

5

Cub Cadet KB-15531-54100

Bolt Assy, Adjusting

Note: (Includes Ref No. 6 & 7)

$

$

Currently unavailable

6

Not Serviced Separately

$

$

Not available

7

Cub Cadet KB-15531-54260

Spring

$

$

Currently unavailable

8

Cub Cadet KB-15261-92020

Nut

$

$

Not available

9

Cub Cadet KB-15841-54220

Nut, Cap

$

$

Not available

10

Cub Cadet KB-15021-33660

Washer

$

$

Not available

11

Cub Cadet KB-15841-54270

Cap

$

$

Not available

12

Cub Cadet KB-15841-54122

Bolt, Adjusting

$

$

Not available

13

Cub Cadet KB-15601-92010

Nut

$

$

Currently unavailable

14

Cub Cadet KB-15601-96650

Washer

$

$

Not available

15

Cub Cadet KB-15601-54220

Nut, Cap

$

$

Not available

16

Cub Cadet KB-15601-54420

Cap

$

$

Not available

17

Cub Cadet KB-15841-83350

Cover

$

$

Currently unavailable

18

Cub Cadet KB-15841-83110

Gasket

$

$

Not available

19

Cub Cadet KB-01023-50616

Bolt, M6 X 16 Class 8.8 w/Washer

$

$

Not available

20

Cub Cadet KB-01123-50818

Bolt, M8 X 18 Pln Class 8.8

$

$

Not available

Cub Cadet KB-04512-50080

Washer, 8MM Lock
(Superseded to KB-04512-70080)

$8.99

$

Usually ships in 3-6 days
