78216 - Toro 38" Side-Discharge Mower Deck for 260 Series Tractors (SN: 049000001 - 049999999) (1994) COVER ASSEMBLY Parts Diagram

38" Side-Discharge Mower Deck for 260 Series Tractors

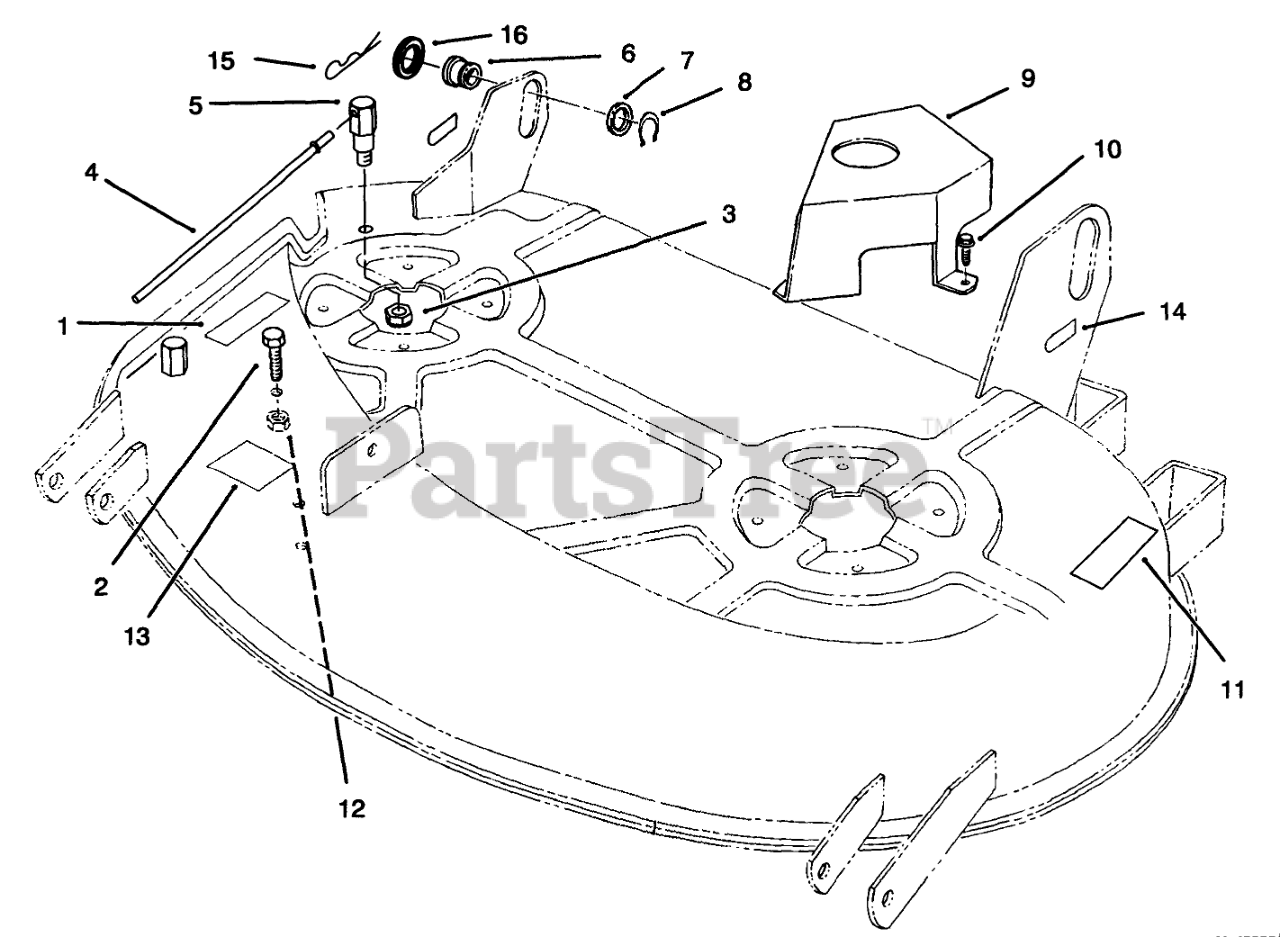

COVER ASSEMBLY Parts Diagram

  • Title

1

Toro 92-7109

DECAL-CAUTION

$11.99

$

Usually ships in 3-6 days

0

2

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 10

0

3

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

4

Toro 57-4380

ROD-HINGE DEFLECTOR

$38.99

$

In Stock, only 2 left!

0

5

Toro 92-7063

PIVOT POST - REAR

$38.99

$

Usually ships in 3-6 days

0

6

Toro 78-7340

ROLLER-LIFT

$12.99

$

In Stock, only 2 left!

0

7

Toro 920239

Washer
(Superseded to 9202394)

$2.49

$

In Stock, only 1 left!

0

8

Toro 32151-29

RING-RETAINING

$5.49

$

In Stock, Qty 18

0

9

Toro 78-6840-03

COVER-BELT

$66.99

$

In Stock, only 1 left!

0

10

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

11

Toro 92-7108

DECAL-DANGER

$6.99

$

Usually ships in 3-6 days

0

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 117137

Decal-Routing
(Superseded to 117-0033)

$6.49

$

In Stock, only 1 left!

0

14

Toro 93-0322

DECAL-ATTACH-A-MATIC

$4.99

$

Usually ships in 3-6 days

0

15

Toro 933507

Pin-Cotter
(Superseded to 9335074)

$4.99

$

In Stock, Qty 5

0

16

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0
