78216 - Toro 38" Side-Discharge Mower Deck for 260 Series Tractors (SN: 220000001 - 220999999) (2002)

38" Side-Discharge Mower Deck for 260 Series Tractors

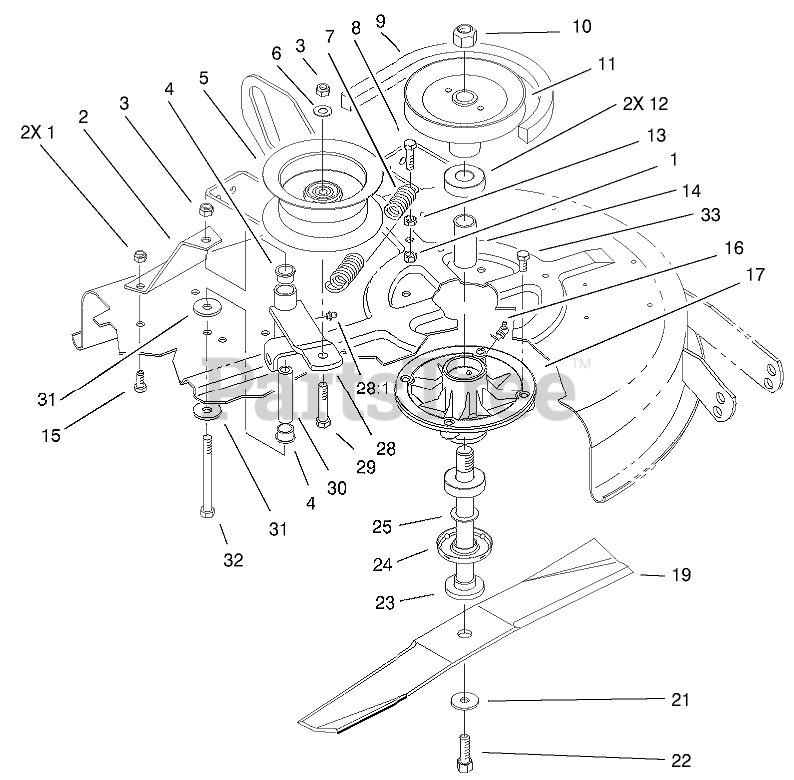

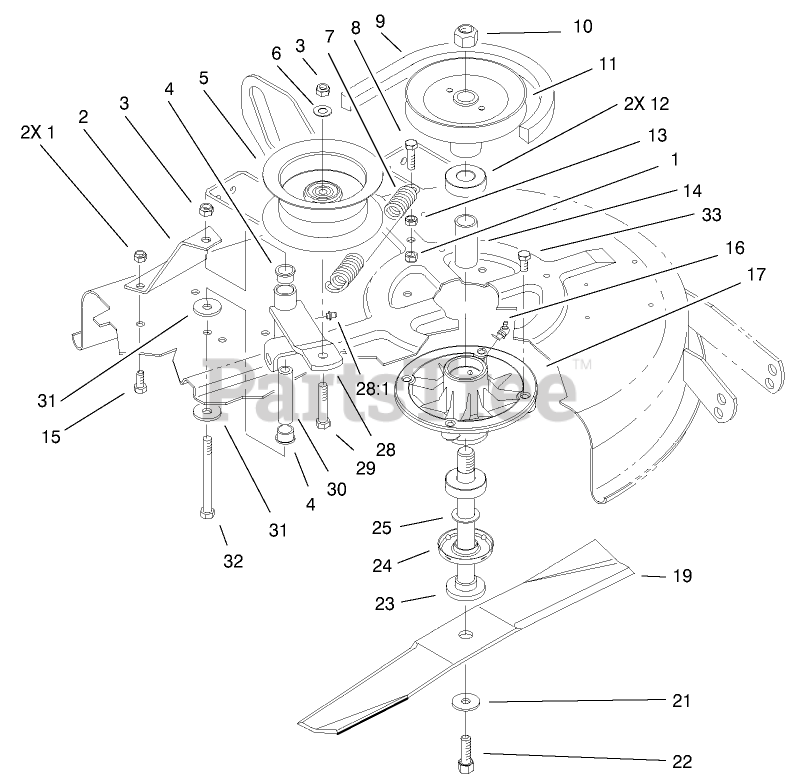

78216 - Toro 38" Side-Discharge Mower Deck for 260 Series Tractors (SN: 220000001 - 220999999) (2002) > Parts Diagrams (3) > BLADE, SPINDLE AND PULLEY ASSEMBLY

  • Title
3296-29

1

NUT-LOCK, NI

Part# 3296-29

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.78

78-8091-03

2

BRACE

Part# 78-8091-03

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $15.55

3296-39

3

NUT-LOCK, NI

Part# 3296-39

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.00

109859

4

BUSHING

Part# 109859

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $10.36

92-7082

5

PULLEY-IDLER

Part# 92-7082

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $77.77

3256-24

6

WASHER-FLAT

Part# 3256-24

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.49

78-6210

7

SPRING-EXTENSION

Part# 78-6210

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $17.99

322-6

8

SCREW-HH

Part# 322-6

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.00

92-7066

9

V-BELT

Part# 92-7066

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $86.51

3219-6

10

NUT-HEX

Part# 3219-6

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.99

100-3546

11

PULLEY

Part# 100-3546

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $73.59

109966

12

BEARING-BALL

Part# 109966

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $12.29

3217-6

13

NUT-HEX

Part# 3217-6

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.00

62-3661

14

SPACER

Part# 62-3661

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $9.50

322-3

15

SCREW-HH

Part# 322-3

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.66

302-11

16

FITTING-LUBE, 45 DEG

Part# 302-11

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.96

100-3547

17

HOUSING-SPINDLE

Part# 100-3547

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $93.29

57-4700

19

Blade

Part# 57-4700 (Superseded to 57-4700-03)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $25.70

112843

21

WASHER

Part# 112843

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.17

26-0671

22

SCREW-HH

Part# 26-0671

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.88

100-3548

23

SHAFT-SPINDLE

Part# 100-3548

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $43.83

80-4360

24

SHIELD-BEARING

Part# 80-4360

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $12.10

80-4380

25

SPACER

Part# 80-4380

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.08

94-9795

28

ARM-IDLER

Part# 94-9795

OEM Warranty Repair Part for Toro

Not available

302-5

28:1

FITTING-GREASE

Part# 302-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.36

323-10

29

SCREW-HH

Part# 323-10

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.59

109950

30

SPACER

Part# 109950

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $13.11

2844

31

WASHER

Part# 2844

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.95

323-16

32

SCREW-HH

Part# 323-16

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.08

32144-41

33

SCREW-TAPTITE

Part# 32144-41

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.68
