78216 - Toro 38" Side-Discharge Mower Deck for 260 Series Tractors (SN: 220000001 - 220999999) (2002)

38" Side-Discharge Mower Deck for 260 Series Tractors

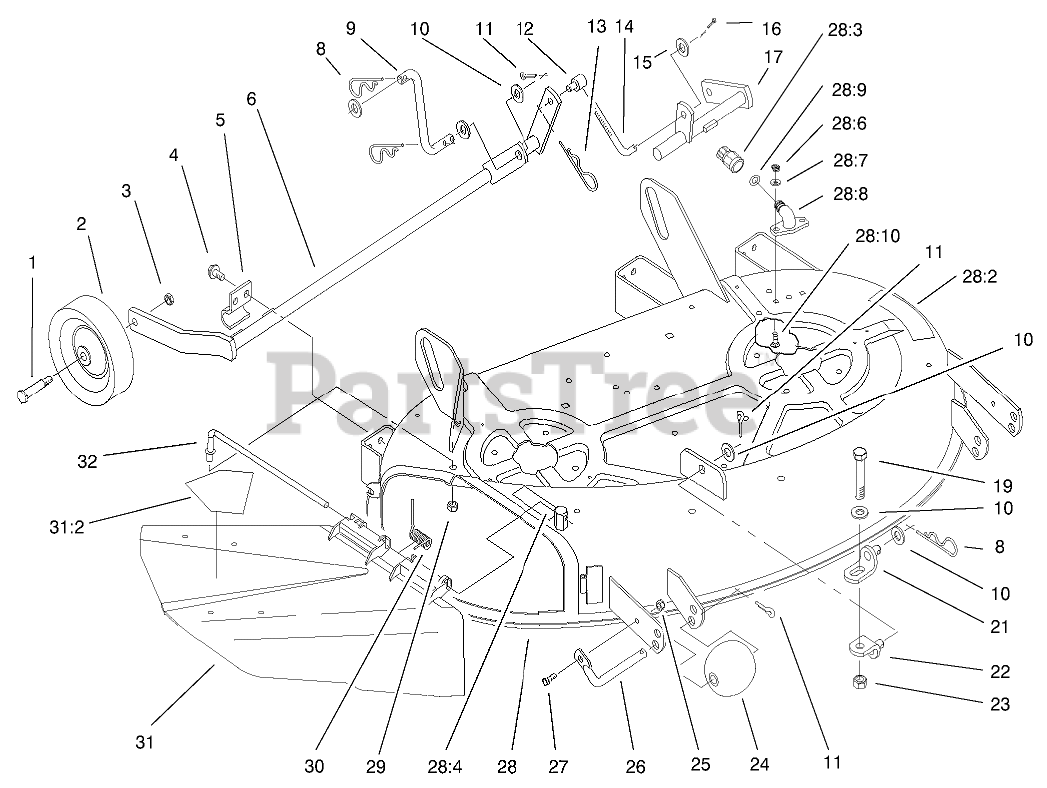

78216 - Toro 38" Side-Discharge Mower Deck for 260 Series Tractors (SN: 220000001 - 220999999) (2002) > Parts Diagrams (3) > CUTTING UNIT ASSEMBLY

  • Title
92-1057

1

BOLT-SHOULDER

Part# 92-1057

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.12

92-6959

2

WHEEL

Part# 92-6959

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $36.87

32146-2

3

NUT-HEX

Part# 32146-2 (Superseded to 32153-2)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.38

9267154

4

SCREW-HWH, TAPTITE

Part# 9267154

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.19

78-6400-03

5

CLAMP

Part# 78-6400-03

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.24

78-8011-03

6

SHAFT-RH

Part# 78-8011-03

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $83.13

9335064

8

PIN-COTTER, HAIR

Part# 9335064

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.47

78-8071

9

LINK-REAR

Part# 78-8071

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $32.57

3256-26

10

WASHER-FLAT

Part# 3256-26

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.44

3272-21

11

PIN-COTTER

Part# 3272-21

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.14

101161

12

TRUNNION

Part# 101161

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $14.17

9335044

13

PIN-HAIR

Part# 9335044

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.92

121010

14

ROD-LIFT

Part# 121010

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $14.58

3256-24

15

WASHER-FLAT

Part# 3256-24

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.49

3272-6

16

PIN-COTTER

Part# 3272-6

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.21

92-7073-03

17

SHAFT-LH

Part# 92-7073-03

OEM Warranty Repair Part for Toro

Not available

325-13

19

SCREW-HH

Part# 325-13

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.31

86-9240

21

BRACKET-LIFT, LOWER

Part# 86-9240

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $64.65

86-9250

22

BRACKET-LIFT, UPPER

Part# 86-9250

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $55.48

3218-5

23

NUT-JAM

Part# 3218-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.77

29-4820

24

ROLLER

Part# 29-4820

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $11.92

3296-42

25

NUT-LOCK, NI

Part# 3296-42

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.34

118960-03

26

Shaft-Roller

Part# 118960-03

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $25.14

321-4

27

SCREW-HH

Part# 321-4

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.77

92-6834

28

DECK ASM

Part# 92-6834

OEM Warranty Repair Part for Toro

Not available

92-7110

28:2

DECAL-DANGER

Part# 92-7110

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $23.00

95-3270

28:3

CONNECTOR-HOSE

Part# 95-3270

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $15.59

92-7109

28:4

DECAL-CAUTION

Part# 92-7109

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.32

3296-16

28:6

NUT-LOCK, NI

Part# 3296-16

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.06

3256-1

28:7

WASHER-FLAT

Part# 3256-1

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.77

95-2747

28:8

FITTING-WASHOUT

Part# 95-2747 (Superseded to 133-9289)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.73

46-6290

28:9

O-RING

Part# 46-6290

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.59

3229-1

28:10

BOLT-CARR

Part# 3229-1

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.56

3296-39

29

NUT-LOCK, NI

Part# 3296-39

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.00

57-6950

30

SPRING

Part# 57-6950

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $16.97

93-0317

31

DEFLECTOR ASM

Part# 93-0317

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $47.53

93-1122

31:2

DECAL-DANGER

Part# 93-1122

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $6.70

95-1661

32

ROD-PIVOT

Part# 95-1661

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $13.29
