78225 - Toro 38" Recycler Mower Deck for 260 Series Tractors (SN: 039000001 - 039999999) (1993) BLADE & SPINDLE ASSEMBLY Parts Diagram

38" Recycler Mower Deck for 260 Series Tractors

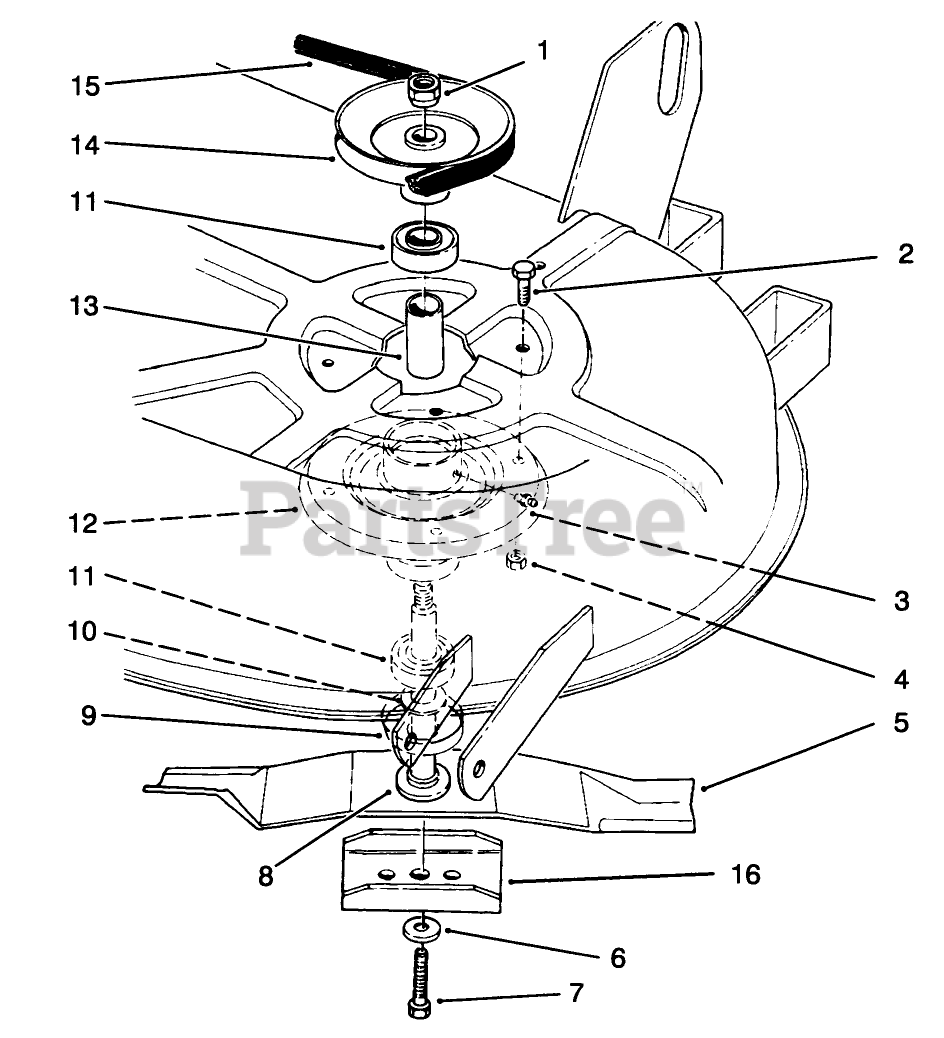

BLADE & SPINDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 915007

Nut
(Superseded to 3219-7)

$2.49

$

In Stock, Qty 10

0

2

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 302-16

ZERK FITTING

$8.49

$

Usually ships in 3-6 days

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 14-7799

BLADE KIT

$62.99

$

In Stock, Qty 8

0

6

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

7

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

8

Toro 80-4351

SHAFT-SPINDLE

$153.99

$

In Stock, only 1 left!

0

9

Toro 80-4370

SHIELD-BEARING

$14.99

$

In Stock, only 2 left!

0

10

Toro 80-4390

SPACER-HARDNED

$3.99

$

Usually ships in 3-6 days

0

11

Toro 79-1090

BEARING-BALL
(Superseded to 251-318)

$17.99

$

In Stock, only 3 left!

0

12

Toro 79-1050

Housing-Spindle
(Superseded to 79-1050-03)

$230.99

$

Usually ships in 3-6 days

0

13

Toro 79-2780

SPACER

$19.99

$

In Stock, only 1 left!

0

14

Toro 78-6042

Pulley-Spindle
(Superseded to 92-7081)

$

$

Not available

15

Toro 79-5980

V-BELT

$43.99

$

In Stock, only 2 left!

0

16

Toro 80-0510

Stiffener
(Superseded to 80-0510-03)

$17.99

$

In Stock, Qty 7

0
