78225 - Toro 38" Recycler Mower Deck for 260 Series Tractors (SN: 039000001 - 039999999) (1993) COVER ASSEMBLY Parts Diagram

38" Recycler Mower Deck for 260 Series Tractors

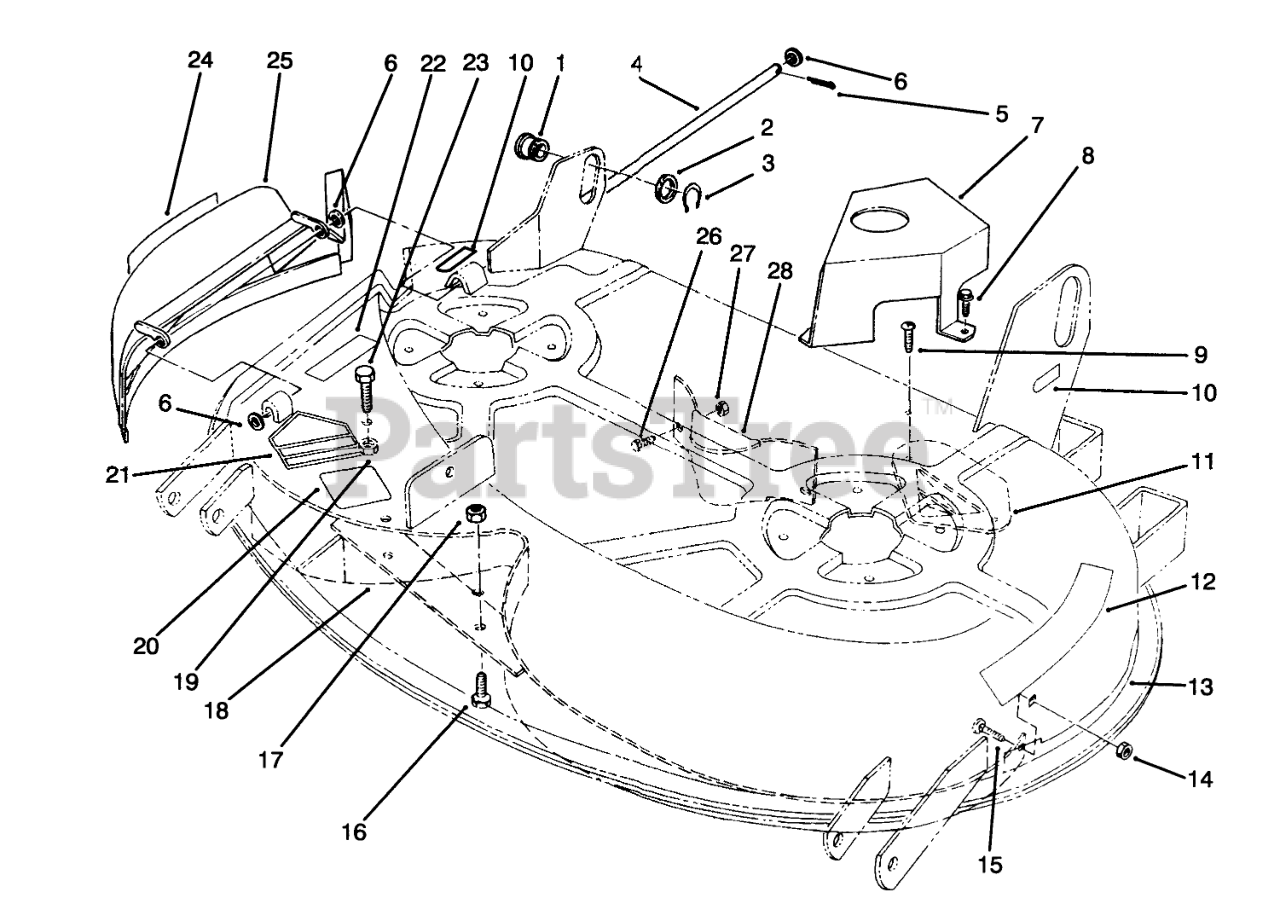

COVER ASSEMBLY Parts Diagram

  • Title

1

Toro 78-7340

ROLLER-LIFT

$12.99

$

In Stock, only 2 left!

0

2

Toro 9202394

WASHER

$2.49

$

In Stock, only 1 left!

0

3

Toro 32151-29

RING-RETAINING

$5.49

$

In Stock, Qty 18

0

4

Toro 78-0820

ROD

$

$

Not available

5

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

6

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Toro 78-6840

Cover-Belt
(Superseded to 78-6840-03)

$66.99

$

In Stock, only 1 left!

0

8

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

9

Toro 32104-130

#8 X .625" PHILPS PAN H

$1.99

$

Usually ships in 3-6 days

0

10

Toro 115196

Decal-Attach-A-Matic
(Superseded to 93-0322)

$4.99

$

Usually ships in 3-6 days

0

11

Toro 76-2160

PLATE-KICKER

$15.99

$

In Stock, Qty 5

0

12

Toro 79-3140

DECAL-DANGER

$15.99

$

Usually ships in 3-6 days

0

13

Toro 79-1311

DECAL-38" RECYCLER
(Superseded to 92-9520)

$38.99

$

Usually ships in 3-6 days

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

16

Toro 323-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

17

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

18

Toro 79-1600

Baffle-38"
(Superseded to 79-1600-03)

$94.99

$

Usually ships in 3-6 days

0

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 117137

Decal-Routing
(Superseded to 117-0033)

$6.49

$

In Stock, only 1 left!

0

21

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$8.99

$

In Stock, Qty 16

0

22

Toro 66-6380

DECAL-DANGER

$8.99

$

Usually ships in 3-6 days

0

23

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 10

0

24

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 3 left!

0

25

Toro 92-5787

38 RECYLE PLUG / DECAL

$

$

Not available

26

Toro 321-3

SCREW-HH

$1.49

$

In Stock, only 3 left!

0

27

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

28

Toro 79-1640

Baffle-Rear
(Superseded to 79-1640-03)

$59.99

$

Usually ships in 3-6 days

0
