78226 - Toro 38" Recycler Mower Deck for 260 Series Tractors (SN: 049000001 - 049999999) (1994) CUTTING UNIT ASSEMBLY Parts Diagram

38" Recycler Mower Deck for 260 Series Tractors

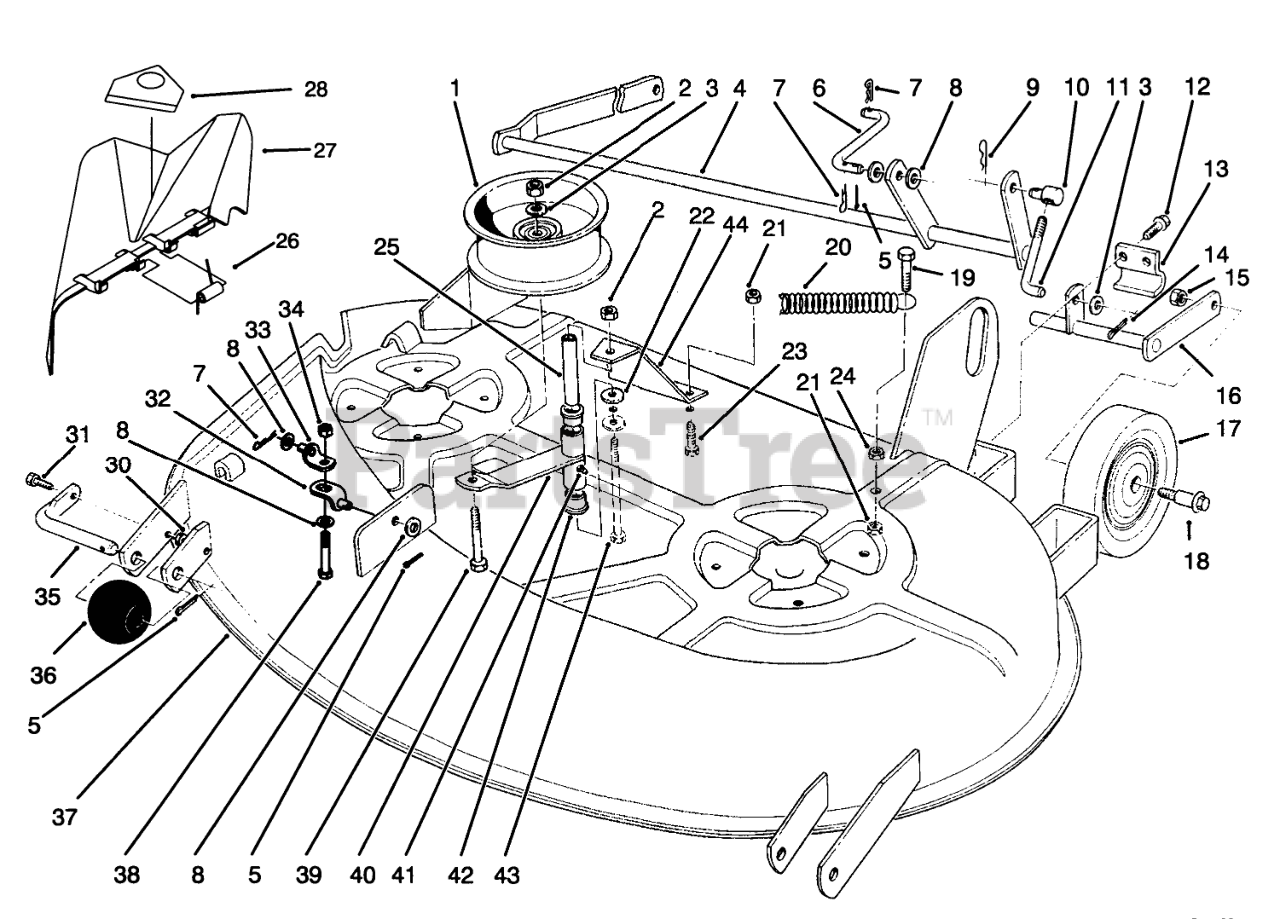

CUTTING UNIT ASSEMBLY Parts Diagram

  • Title

1

Toro 92-7082

PULLEY-IDLER

$117.99

$

Usually ships in 3-6 days

0

2

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

3

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 78-8011-03

SHAFT-RH

$125.99

$

Usually ships in 3-6 days

0

5

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, Qty 6

0

6

Toro 78-8071

LINK-REAR

$49.99

$

Usually ships in 3-6 days

0

7

Toro 933506

Hairpin
(Superseded to 9335064)

$2.49

$

In Stock, Qty 12

0

8

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 14

0

10

Toro 110656

TRUNNION
(Superseded to 101161)

$

$

Not available

11

Toro 121010

ROD-LIFT

$22.99

$

Usually ships in 3-6 days

0

12

Toro 926715

Bolt
(Superseded to 9267154)

$3.49

$

In Stock, Qty 6

0

13

Toro 78-6400-03

CLAMP

$9.49

$

Usually ships in 3-6 days

0

14

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

15

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

16

Toro 92-7073-03

SHAFT-LH

$

$

Not available

17

Toro 110506

WHEEL

$37.99

$

In Stock, Qty 15

0

18

Toro 5188

BOLT-SHOULDER

$5.99

$

In Stock, Qty 7

0

19

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

20

Toro 78-6210

SPRING-EXTENSION

$

$

Not available

21

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

22

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

23

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

24

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 5

0

25

Toro 109950

SPACER

$19.99

$

Usually ships in 3-6 days

0

26

Toro 57-6950

SPRING

$25.99

$

In Stock, only 4 left!

0

27

Toro 93-0317

DEFLECTOR ASM

$71.99

$

In Stock, Qty 5

0

28

Toro 93-1122

DECAL-DANGER

$8.99

$

In Stock, Qty 16

0

30

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

31

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

32

Toro 86-9240

BRACKET-LIFT, LOWER

$99.99

$

In Stock, only 4 left!

0

33

Toro 86-9250

BRACKET-LIFT, UPPER

$83.99

$

In Stock, only 1 left!

0

34

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 10

0

35

Toro 118960

SHAFT-ROLLER
(Superseded to 118960-03)

$37.99

$

In Stock, only 3 left!

0

36

Toro 29-4820

ROLLER

$16.99

$

In Stock, Qty 6

0

37

Toro 92-6834-01

Deck/Safety Decal Assy.(Incl. Items 12,& 22, pg. 3)
(Superseded to 92-6834)

$

$

Not available

38

Toro 325-13

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

39

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

40

Toro 78-3370-03

WLDMT-IDLER ARM (BLACK)

$

$

Not available

41

Toro 302-26

FITTING-GREASE

$6.49

$

In Stock, only 1 left!

0

42

Toro 109859

BUSHING

$15.99

$

Usually ships in 3-6 days

0

43

Toro 323-16

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

44

Toro 78-8091-03

BRACE

$

$

Not available
