78230 - Toro 42" Side-Discharge Mower Deck for 260 Series Tractors (SN: 039000001 - 039999999) (1993) SPINDLE ASSEMBLY Parts Diagram

42" Side-Discharge Mower Deck for 260 Series Tractors

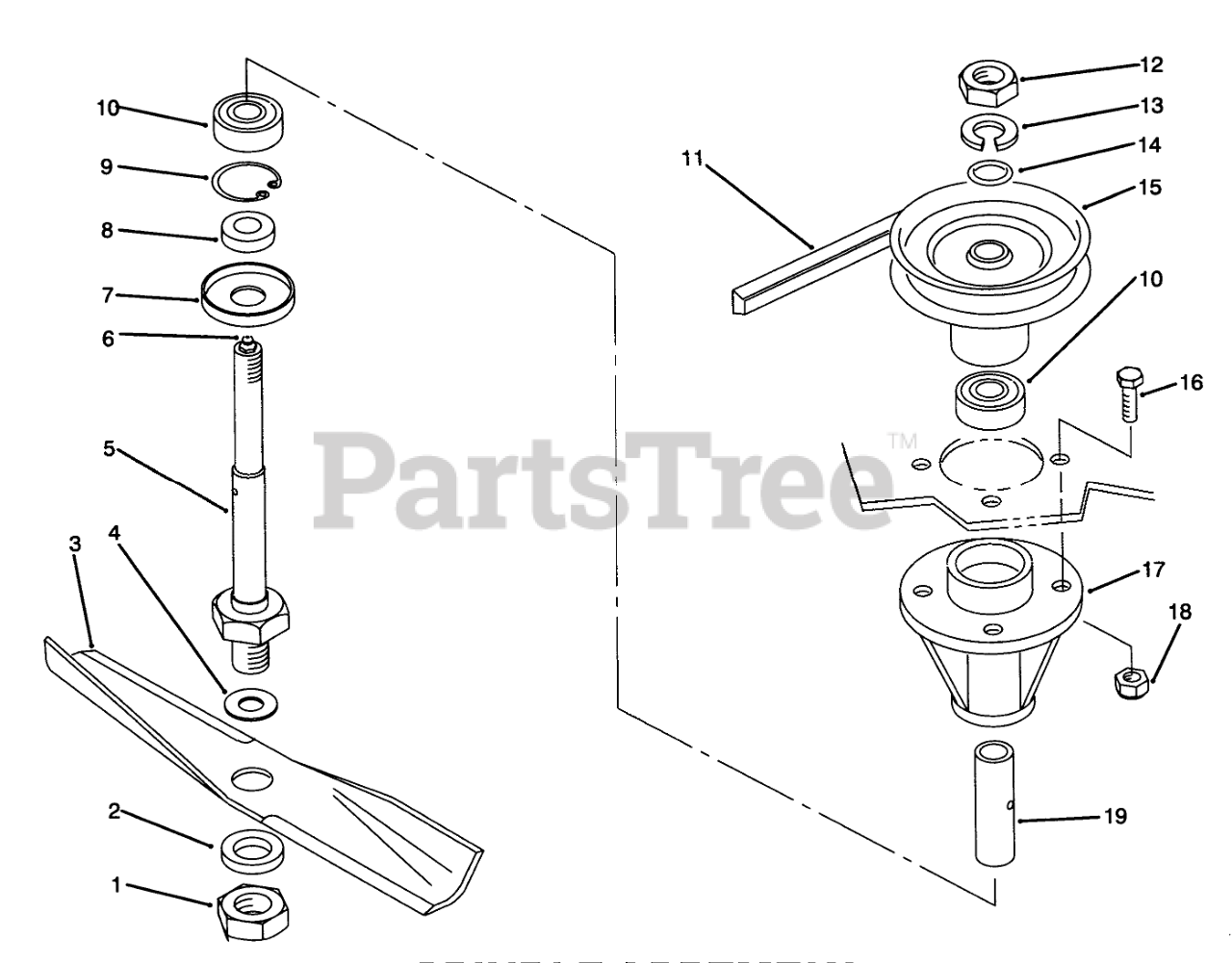

SPINDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 3220-7

NUT-JAM

$4.49

$

In Stock, Qty 20+

0

2

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

3

Toro 106636

14IN BLADE KIT

$64.99

$

In Stock, Qty 8

0

4

Toro 9202574

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

5

Toro 78-6710

SHAFT-SPINDLE

$98.99

$

In Stock, only 1 left!

0

6

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 15

0

7

Toro 106077

BLADE-14IN
(Superseded to 106636)

$64.99

$

In Stock, Qty 8

0

8

Toro 106068

SPACER-BLADE

$7.99

$

In Stock, Qty 20+

0

9

Toro 32120-42

RING-RETAINING

$1.49

$

In Stock, Qty 20+

0

10

Toro 109966

BEARING-BALL

$14.99

$

In Stock, Qty 20+

0

11

Toro 78-6240

Belt
(Superseded to 92-6991)

$88.99

$

In Stock, only 3 left!

0

12

Toro 3220-6

NUT-JAM

$1.49

$

In Stock, Qty 13

0

13

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

14

Toro 971015

O RING

$1.99

$

In Stock, Qty 20+

0

15

Toro 78-1210

Pulley-Spindle
(Superseded to 92-7080)

$83.99

$

Usually ships in 3-6 days

0

16

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, Qty 19

0

17

Toro 114568

HOUSING-SPINDLE

$99.99

$

In Stock, Qty 12

0

18

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

19

Toro 116085

TUBE

$31.99

$

In Stock, Qty 5

0
