78231 - Toro 42" Side-Discharge Mower Deck for 260 Series Tractors (SN: 230000001 - 230999999) (2003) Cover Assembly Parts Diagram

42" Side-Discharge Mower Deck for 260 Series Tractors

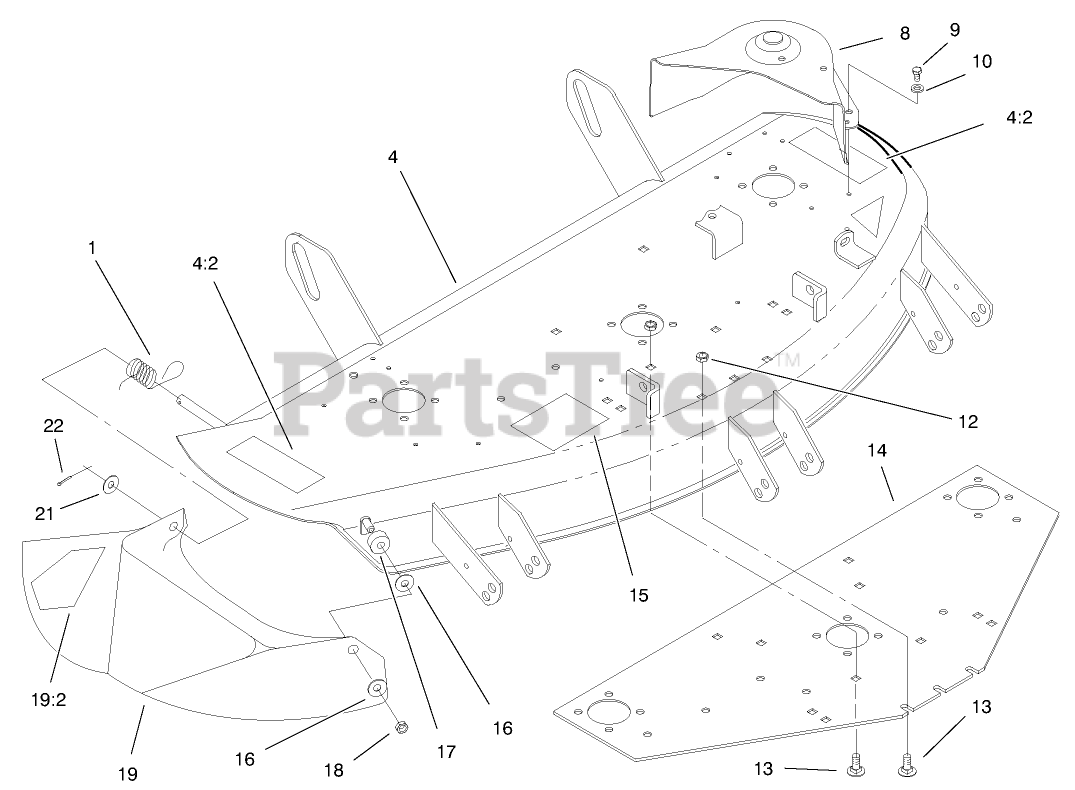

Cover Assembly Parts Diagram

  • Title

1

Toro 93-1631

SPRING-DEFLECTOR

$34.99

$

Usually ships in 3-6 days

0

4

Toro 98-1797

DISCONTINUED

$

$

Not available

4:2

Toro 92-7108

DECAL-DANGER

$7.99

$

Usually ships in 3-6 days

0

8

Toro 78-6891

COVER-BELT

$170.99

$

Usually ships in 3-6 days

0

9

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

10

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

12

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

13

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 15

0

14

Toro 78-8530-03

DISCONTINUED

$

$

Not available

15

Toro 116286

DECAL-BELT INSTALL

$11.99

$

Usually ships in 3-6 days

0

16

Toro 93-1633

WASHER

$3.49

$

In Stock, Qty 10

0

17

Toro 116080

BUSHING-PIVOT

$20.99

$

Usually ships in 3-6 days

0

18

Toro 9152366

NUT-HJ

$3.99

$

In Stock, only 1 left!

0

19

Toro 99-3708

CHUTE ASM

$297.99

$

Usually ships in 3-6 days

0

19:2

Toro 93-1122

DECAL-DANGER

$10.99

$

In Stock, Qty 10

0

21

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 17

0

22

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0
