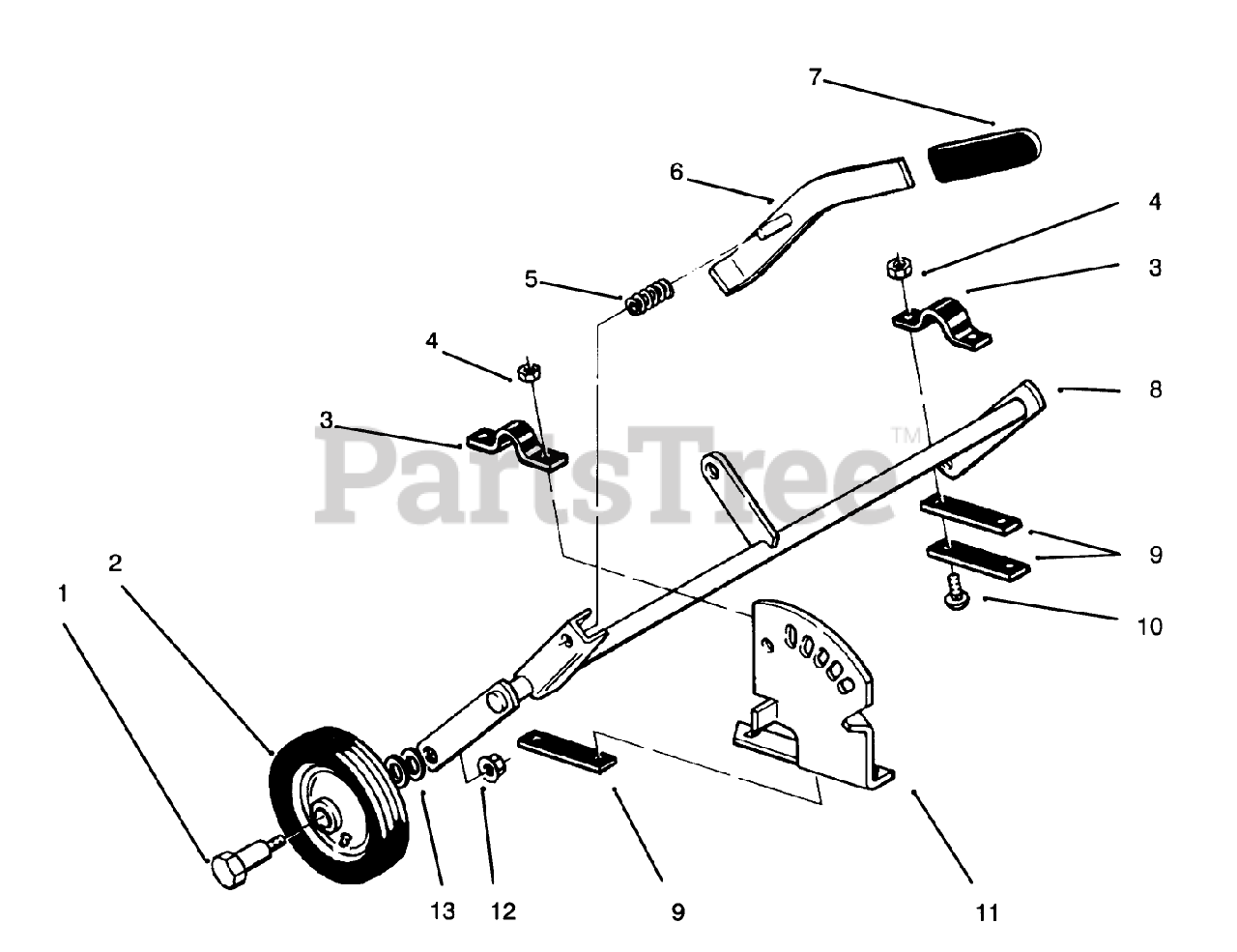

78300 - Toro 36" Rear-Discharge Mower Deck for 300 Series GT Tractors (SN: 039000001 - 039999999) (1993) Height Of Cut Adjustment Lever Parts Diagram

36" Rear-Discharge Mower Deck for 300 Series GT Tractors

Height Of Cut Adjustment Lever Parts Diagram

  • Title

1

Toro 5188

BOLT-SHOULDER

$5.99

$

In Stock, Qty 13

0

2

Toro 109375

WHEEL ASM

$

$

Not available

3

Toro 110841

CLAMP

$9.49

$

Usually ships in 3-6 days

0

4

Toro 32146-2

See Supercession: 32153-2
(Superseded to 32153-2)

$

$

Not available

5

Toro 101853

SPRING-COMPRESSION

$32.99

$

In Stock, only 3 left!

0

6

Toro 102431

DISCONTINUED
(Superseded to 102431-01)

$

$

Not available

7

Toro 102597

GRIP

$2.49

$

In Stock, only 2 left!

0

8

Toro 107961

DISCONTINUED
(Superseded to 107961-01)

$

$

Not available

9

Toro 110840

See Supercession: 110840-03
(Superseded to 110840-03)

$23.99

$

In Stock, only 1 left!

0

10

Toro 3232-3

BOLT-CARR

$3.99

$

In Stock, Qty 5

0

11

Toro 106392

See Supercession: 106392-01
(Superseded to 106392-01)

$36.99

$

In Stock, only 3 left!

0

12

Toro 32146-2

See Supercession: 32153-2
(Superseded to 32153-2)

$

$

Not available

13

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

In Stock, only 3 left!

0
