78305 - Toro 36" Rear-Discharge Mower Deck for 300 Series GT Tractors (SN: 240000001 - 240999999) (2004) Deck Drive Belt Attachment Parts Diagram

36" Rear-Discharge Mower Deck for 300 Series GT Tractors

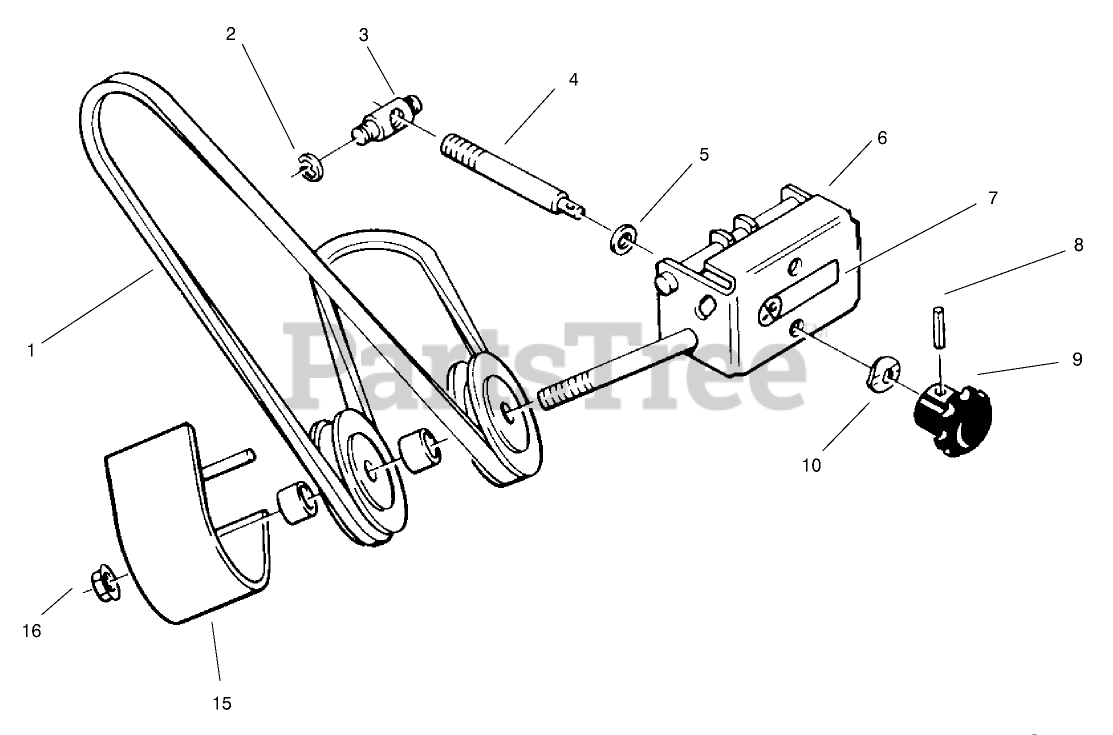

Deck Drive Belt Attachment Parts Diagram

  • Title

1

Toro 102741

V-BELT

$39.99

$

In Stock, only 2 left!

0

2

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 17

0

3

Toro 101708

TRUNNION-DOUBLE

$34.99

$

Usually ships in 3-6 days

0

4

Toro 101842

ROD ADJ

$68.99

$

Usually ships in 3-6 days

0

5

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 101728-01

WA FRONT SUPPORT

$234.99

$

Usually ships in 3-6 days

0

7

Toro 92-8747

DECAL-ATTACH A-MATIC

$7.99

$

In Stock, only 1 left!

0

8

Toro 933156

PIN-ROLL

$1.49

$

In Stock, Qty 8

0

9

Toro 101851

KNOB-ADJUSTMENT

$27.99

$

In Stock, only 2 left!

0

10

Toro 108571

WASHER-SPRING

$10.99

$

Usually ships in 3-6 days

0

11

Toro 92-7103

PULLEY-IDLER

$59.99

$

In Stock, Qty 5

0

12

Toro 101734

SPACER

$5.49

$

In Stock, only 2 left!

0

13

Toro 104875

DISCONTINUED

$

$

Not available

14

Toro 101757

SPACER-OUTER

$6.99

$

In Stock, only 1 left!

0

15

Toro 102582-01

COVER WA - BELT

$110.99

$

Usually ships in 3-6 days

0

16

Toro 9150076

NUT
(Superseded to 116-7306)

$2.99

$

In Stock, Qty 20+

0

Toro 101657

ASM-SUPPORT,IDLER

Note: Not illustrated

$682.99

$

Usually ships in 3-6 days

0
