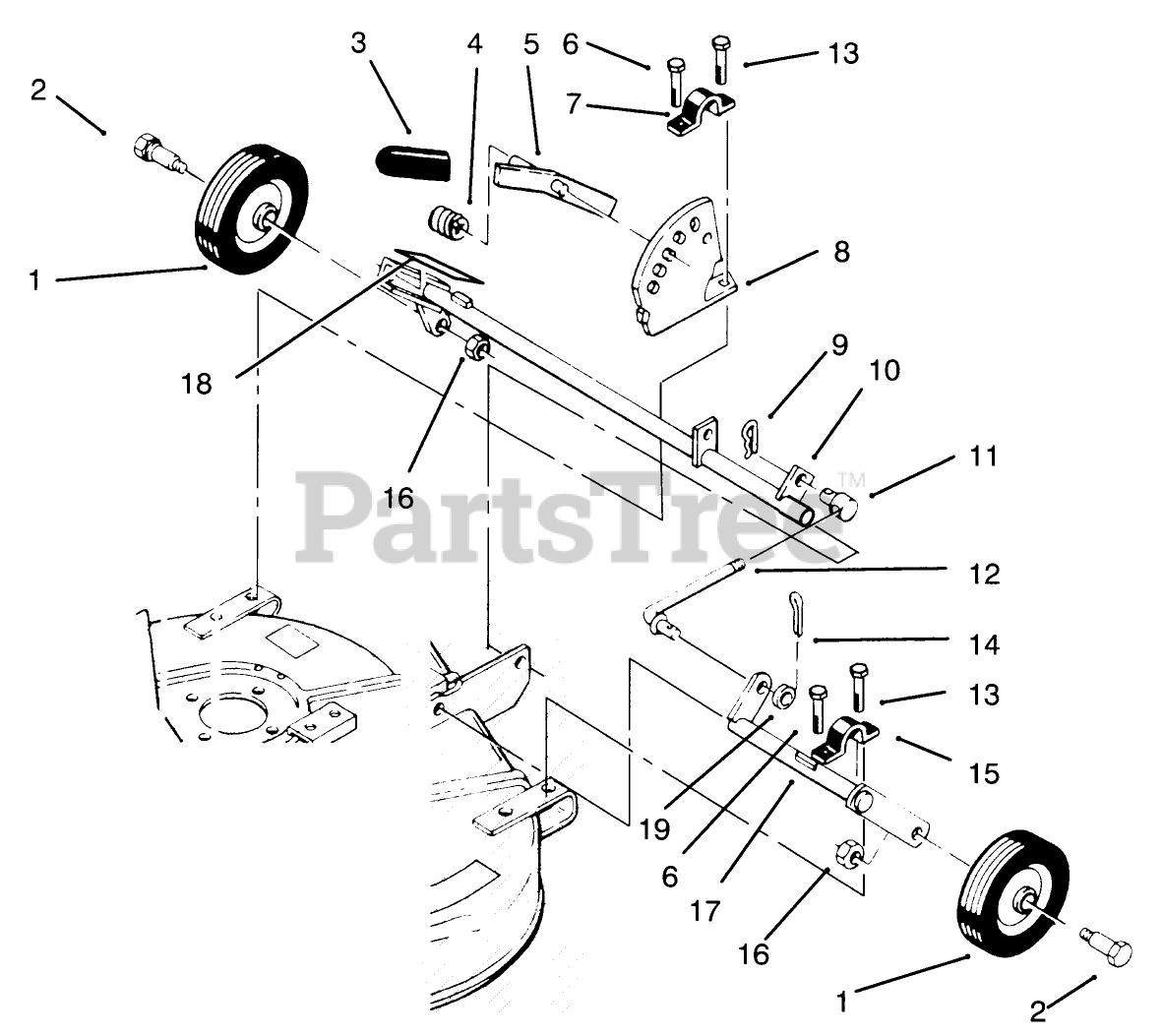

78315 - Toro 37" Side-Discharge Mower Deck (SN: 059000001 - 059999999) (1995) Height Of Cut Adjustment Parts Diagram

37" Side-Discharge Mower Deck

Height Of Cut Adjustment Parts Diagram

  • Title

1

Toro 110506

WHEEL

$39.99

$

In Stock, Qty 8

0

2

Toro 5188

BOLT-SHOULDER

$5.99

$

In Stock, Qty 13

0

3

Toro 102597

GRIP

$2.49

$

In Stock, only 2 left!

0

4

Toro 101853

SPRING-COMPRESSION

$32.99

$

In Stock, only 3 left!

0

5

Toro 102431

DISCONTINUED
(Superseded to 102431-01)

$

$

Not available

6

Toro 9267164

DISCONTINUED

$

$

Not available

7

Toro 110841

CLAMP

$9.49

$

Usually ships in 3-6 days

0

8

Toro 106392

See Supercession: 106392-01
(Superseded to 106392-01)

$36.99

$

In Stock, only 3 left!

0

9

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

10

Toro 111172

See Supercession: 111172-01
(Superseded to 111172-01)

$

$

Not available

11

Toro 110656

See Supercession: 101161
(Superseded to 101161)

$

$

Not available

12

Toro 110844

ROD CONNECTING

$

$

Not available

13

Toro 9267154

SCREW-HWH, TAPTITE

$3.99

$

In Stock, Qty 6

0

14

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

15

Toro 112930

CLAMP *B

$

$

Not available

16

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

17

Toro 108187

See Supercession: 108187-01
(Superseded to 108187-01)

$

$

Not available

18

Toro 111655

DECAL-HOC

$4.49

$

Usually ships in 3-6 days

0

19

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
