78315 - Toro 37" Side-Discharge Mower Deck (SN: 059000001 - 059999999) (1995) SPINDLE & BLADE Parts Diagram

37" Side-Discharge Mower Deck

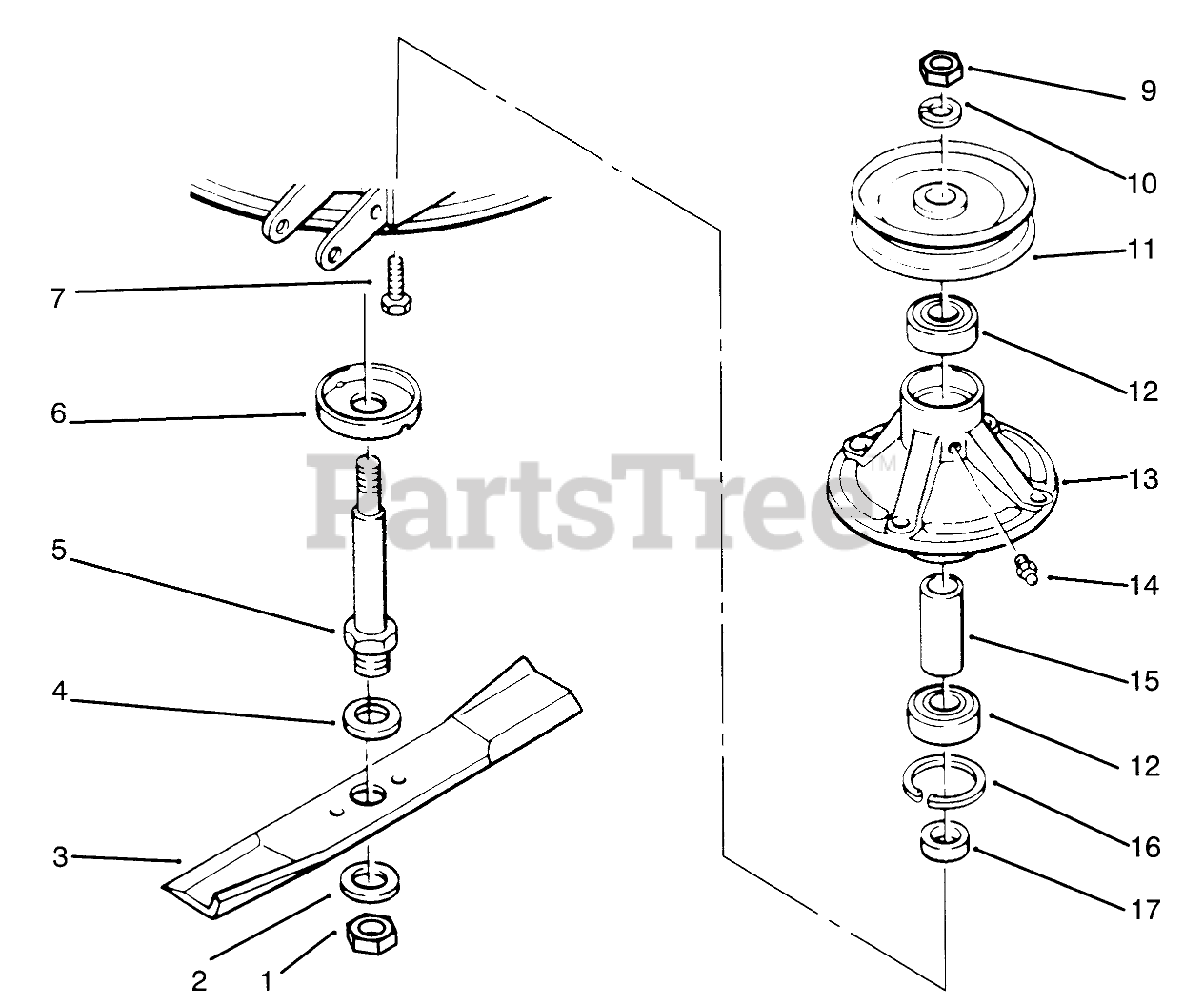

SPINDLE & BLADE Parts Diagram

  • Title

1

Toro 3220-7

NUT-JAM

$4.99

$

In Stock, Qty 16

0

2

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

3

Toro 109079

ASSY BLADE KIT

$107.99

$

Usually ships in 3-6 days

0

4

Toro 9202574

WASHER-FLAT

$2.49

$

In Stock, Qty 20+

0

5

Toro 109912

SHAFT SPINDLE

$

$

Not available

6

Toro 106067

CUP-SPINDLE
(Superseded to 106067-03)

$16.99

$

In Stock, Qty 6

0

7

Toro 3235-22

SCREW-HH, LOCK

$3.49

$

In Stock, only 2 left!

0

9

Toro 3220-6

NUT-JAM

$1.49

$

In Stock, Qty 7

0

10

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

11

Toro 111169

BLADE PULLEY

$81.99

$

Usually ships in 3-6 days

0

12

Toro 109966

BEARING-BALL

$15.99

$

In Stock, Qty 20+

0

13

Toro 109913

HOUSING SPINDLE

$

$

Not available

14

Toro 302-16

ZERK FITTING

$

$

Not available

15

Toro 110200

TUBE

$

$

Not available

16

Toro 32120-42

RING-RETAINING

$1.49

$

In Stock, Qty 20+

0

17

Toro 106068

SPACER-BLADE

$8.49

$

In Stock, Qty 8

0

Toro 109911

Spindle Assembly (Incl. Ref. # 5,6&12-17)

Note: Not illustrated

$

$

Not available
