78315 - Toro 37" Side-Discharge Mower Deck (SN: 069000001 - 069999999) (1996) Deck Carrier Assembly Parts Diagram

37" Side-Discharge Mower Deck

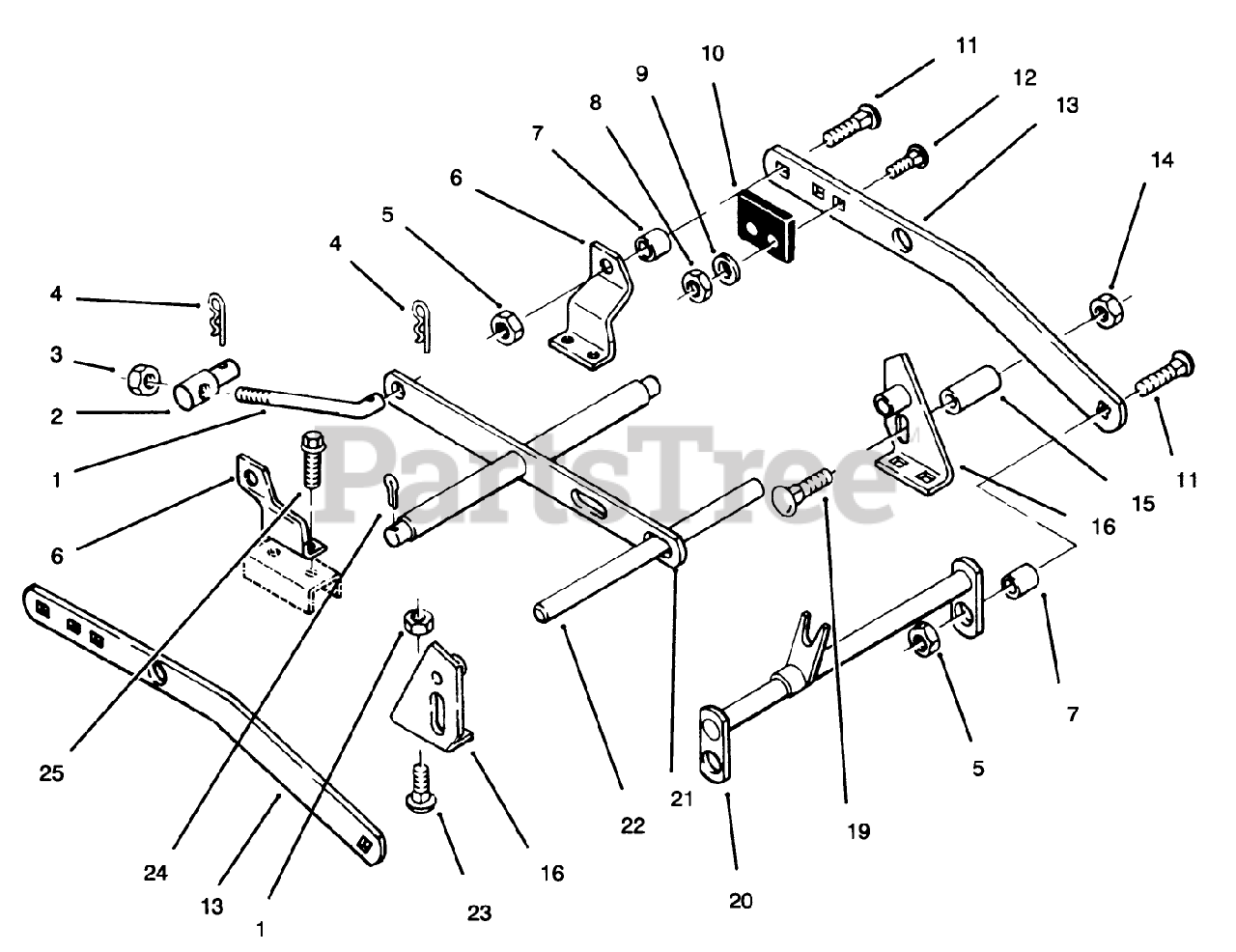

Deck Carrier Assembly Parts Diagram

  • Title

1

Toro 92-9841

LIFT ROD

$49.99

$

In Stock, only 2 left!

0

2

Toro 6739

TRUNNION-LIFT

$25.99

$

In Stock, only 3 left!

0

3

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

4

Toro 9335044

PIN-HAIR

$1.49

$

In Stock, Qty 5

0

5

Toro 102809

See Supercession: 32128-19
(Superseded to 32128-19)

$1.99

$

In Stock, Qty 5

0

6

Toro 111175

DISCONTINUED
(Superseded to 111175-01)

$

$

Not available

7

Toro 111044

SPACER

$1.49

$

In Stock, Qty 20+

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

10

Toro 102322

BUMPER

$8.99

$

Usually ships in 3-6 days

0

11

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 15

0

12

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, only 4 left!

0

13

Toro 101777

See Supercession: 101777-01
(Superseded to 101777-01)

$96.99

$

Usually ships in 3-6 days

0

14

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

15

Toro 9793604

SPACER

$13.99

$

Usually ships in 3-6 days

0

16

Toro 111176

See Supercession: 111176-01
(Superseded to 111176-01)

$

$

Not available

19

Toro 3232-3

BOLT-CARR

$3.99

$

In Stock, Qty 5

0

20

Toro 101758

See Supercession: 101758-01
(Superseded to 101758-01)

$139.99

$

Usually ships in 3-6 days

0

21

Toro 110268

See Supercession: 110268-01
(Superseded to 110268-01)

$136.99

$

Usually ships in 3-6 days

0

22

Toro 102570

See Supercession: 102570-03
(Superseded to 102570-03)

$143.99

$

Usually ships in 3-6 days

0

23

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

24

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 8

0

25

Toro 9267154

SCREW-HWH, TAPTITE

$3.99

$

In Stock, Qty 6

0
