78345 - Toro 42" Side-Discharge Mower Deck for 300 Series GT Tractors (SN: 069000001 - 069999999) (1996) CUTTING UNIT ASSEMBLY Parts Diagram

42" Side-Discharge Mower Deck for 300 Series GT Tractors

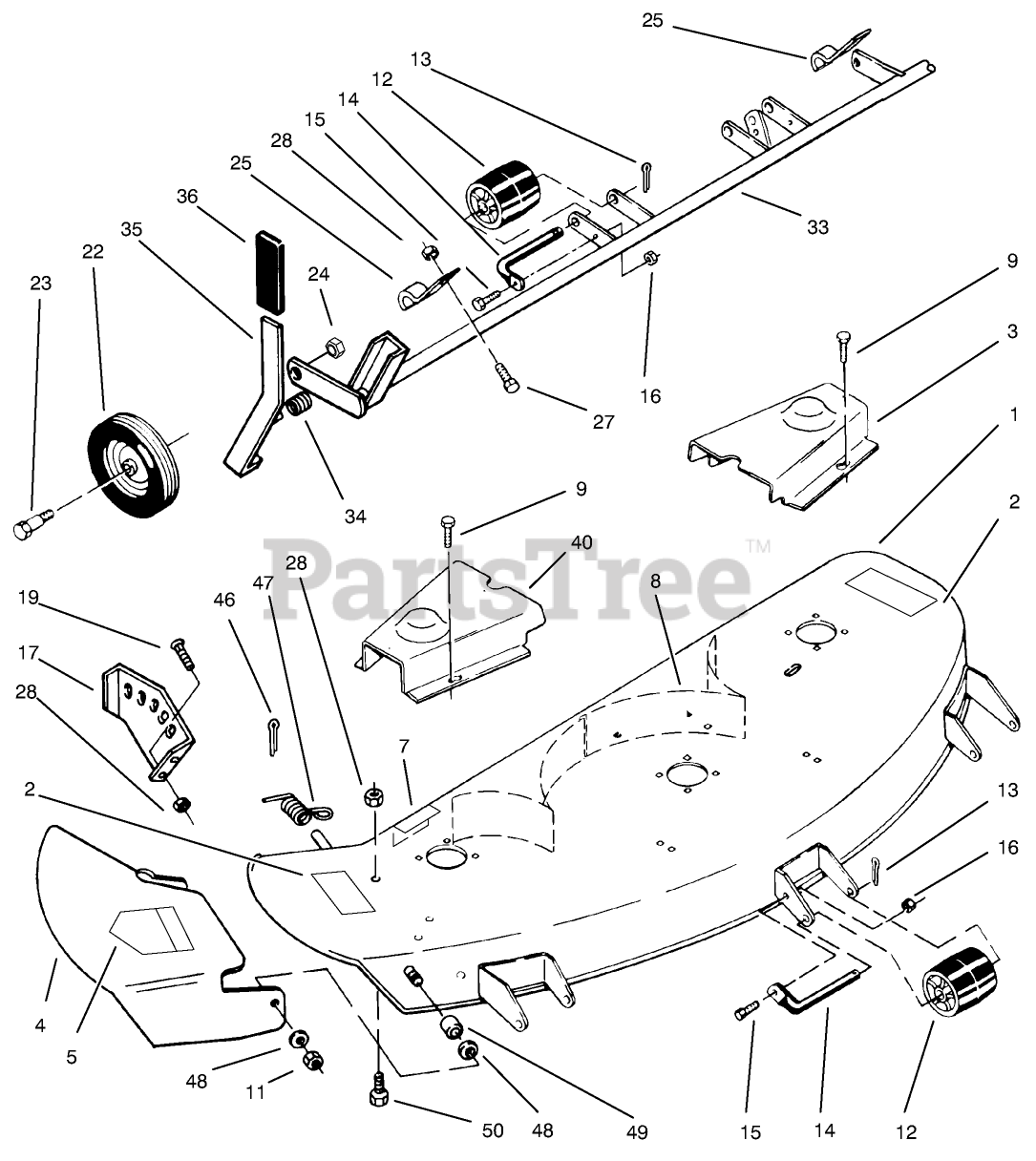

CUTTING UNIT ASSEMBLY Parts Diagram

  • Title

1

Toro 88-2740

Deck-Assembly (Incl. Ref. #2 & 8)
(Superseded to 88-2730)

$2242.99

$

In Stock, only 1 left!

0

2

Toro 92-7108

DECAL-DANGER

$7.99

$

Usually ships in 3-6 days

0

3

Toro 107029

Belt Cover LH
(Superseded to 107029-01)

$109.99

$

Usually ships in 3-6 days

0

4

Toro 88-2750

Chute Assembly (Incl. Ref. #5)
(Superseded to 99-3708)

$297.99

$

Usually ships in 3-6 days

0

5

Toro 93-1122

DECAL-DANGER

$10.99

$

In Stock, Qty 10

0

7

Toro 106748

DECAL-HEIGHT & BELT

$12.99

$

In Stock, only 1 left!

0

8

Toro 115062

BAFFLE-DECK R.H.

$

$

Not available

Toro 115063

BAFFLE-DECK L.H.

$76.99

$

Usually ships in 3-6 days

0

9

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 20+

0

11

Toro 9142366

Nut

$

$

Currently unavailable

12

Toro 108798

Roller
(Superseded to 94-1599)

$14.99

$

In Stock, only 2 left!

0

13

Toro 3272-21

PIN-COTTER

$3.99

$

In Stock, only 3 left!

0

14

Toro 110847

ROLLER-SHAFT

$30.99

$

In Stock, Qty 5

0

15

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

17

Toro 102654

Quadrant
(Superseded to 102654-01)

$78.99

$

Usually ships in 3-6 days

0

19

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

22

Toro 110506

WHEEL

$39.99

$

In Stock, Qty 10

0

23

Toro 5188

BOLT-SHOULDER

$5.99

$

In Stock, Qty 15

0

24

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$

$

Not available

25

Toro 110837

Clamp
(Superseded to 110837-03)

$37.99

$

In Stock, Qty 5

0

27

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 17

0

28

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

33

Toro 115064

Support-Gage Wheel
(Superseded to 115064-01)

$

$

Not available

34

Toro 101853

SPRING-COMPRESSION

$32.99

$

In Stock, only 3 left!

0

35

Toro 115229

Lever
(Superseded to 115229-01)

$63.99

$

Usually ships in 3-6 days

0

36

Toro 103712

GRIP

$9.49

$

Usually ships in 3-6 days

0

40

Toro 107028

Belt Cover RH
(Superseded to 107028-01)

$109.99

$

Usually ships in 3-6 days

0

46

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

47

Toro 93-1631

SPRING-DEFLECTOR

$34.99

$

Usually ships in 3-6 days

0

48

Toro 93-1633

WASHER

$3.49

$

In Stock, Qty 10

0

49

Toro 116080

BUSHING-PIVOT

$20.99

$

Usually ships in 3-6 days

0

50

Toro 323-24

Bolt
(Superseded to 01-178-0672)

$

$

Not available
