78345 - Toro 42" Side-Discharge Mower Deck for 300 Series GT Tractors (SN: 089000001 - 089999999) (1998) BELT & SPINDLE ASSEMBLY Parts Diagram

42" Side-Discharge Mower Deck for 300 Series GT Tractors

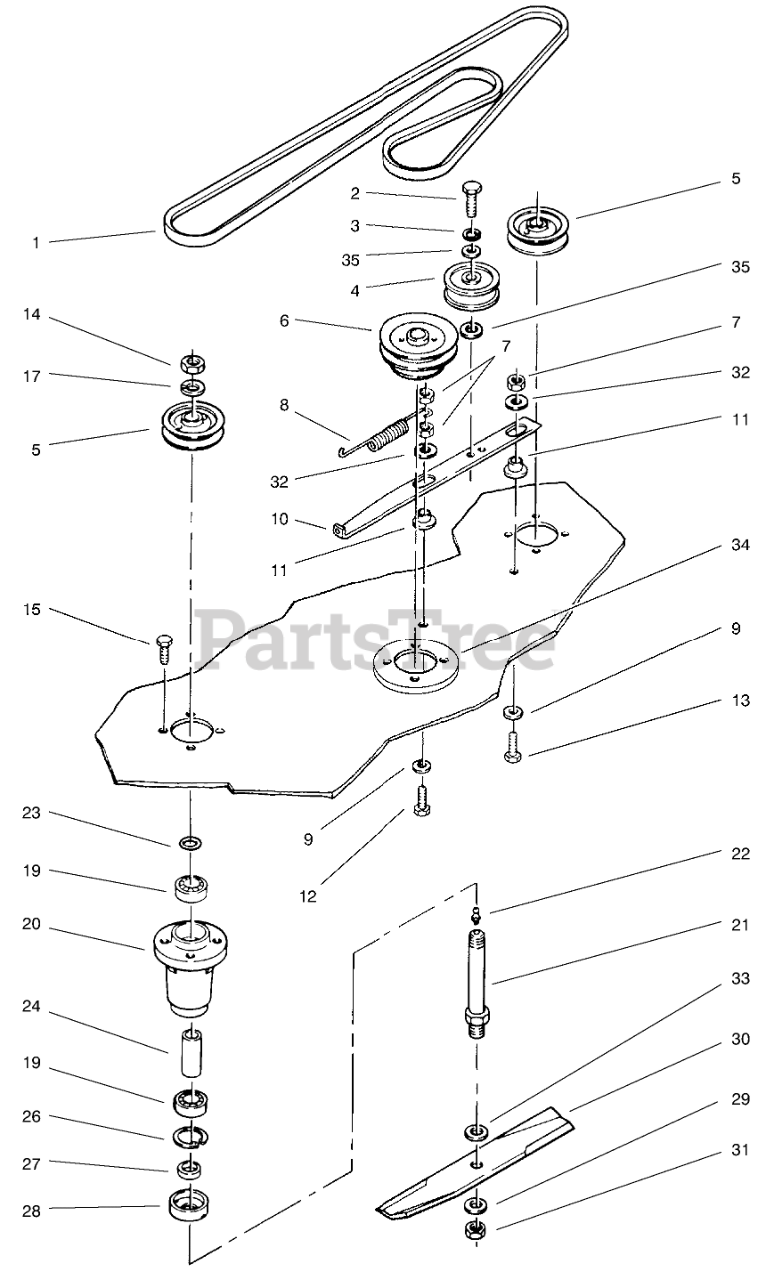

BELT & SPINDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 6738

V BELT

$37.99

$

In Stock, Qty 11

0

2

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

3

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 8

0

4

Toro 92-7101

PULLEY-IDLER, FLAT

$44.99

$

In Stock, only 1 left!

0

5

Toro 109967

PULLEY

$87.99

$

In Stock, only 1 left!

0

6

Toro 110148

PULLEY

$131.99

$

In Stock, only 2 left!

0

7

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

8

Toro 100071

SPRING-EXTENSION

$12.99

$

In Stock, only 3 left!

0

9

Toro 2844

WASHER

$3.49

$

In Stock, Qty 14

0

10

Toro 106120

BAR-IDLER SUPPORT

$83.99

$

In Stock, only 2 left!

0

11

Toro 107674

SPACER-BUSHING

$2.49

$

In Stock, Qty 20+

0

12

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

14

Toro 3220-6

NUT-JAM

$1.49

$

In Stock, Qty 7

0

15

Toro 9080326

SCREW-HH

$2.49

$

In Stock, Qty 15

0

16

Toro 110172

Spindle Assembly (Incl. Ref.# 19-28)
(Superseded to 111726)

$296.99

$

In Stock, only 3 left!

0

17

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

19

Toro 109966

BEARING-BALL

$17.99

$

In Stock, Qty 20+

0

20

Toro 114568

HOUSING-SPINDLE

$107.99

$

In Stock, Qty 6

0

21

Toro 112674

SHAFT-SPINDLE

$94.99

$

In Stock, only 2 left!

0

22

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

23

Toro 971015

O RING

$2.49

$

In Stock, Qty 11

0

24

Toro 116085

TUBE

$36.99

$

In Stock, only 1 left!

0

26

Toro 32120-42

RING-RETAINING

$1.49

$

In Stock, Qty 20+

0

27

Toro 106068

SPACER-BLADE

$8.49

$

In Stock, Qty 8

0

28

Toro 106067

CUP-SPINDLE
(Superseded to 106067-03)

$16.99

$

In Stock, Qty 6

0

29

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

30

Toro 106636

14IN BLADE KIT

$102.99

$

In Stock, Qty 7

0

31

Toro 3220-7

NUT-JAM

$4.99

$

In Stock, Qty 16

0

32

Toro 107675

WASHER

$3.49

$

In Stock, Qty 20+

0

33

Toro 9202574

WASHER-FLAT

$2.49

$

In Stock, Qty 20+

0

34

Toro 106117

PLATE-SPINDLE

$22.99

$

Usually ships in 3-6 days

0

35

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
