78346 - Toro 42" Side-Discharge Mower Deck (SN: 059000001 - 059999999) (1995) Spindle Assembly Parts Diagram

42" Side-Discharge Mower Deck

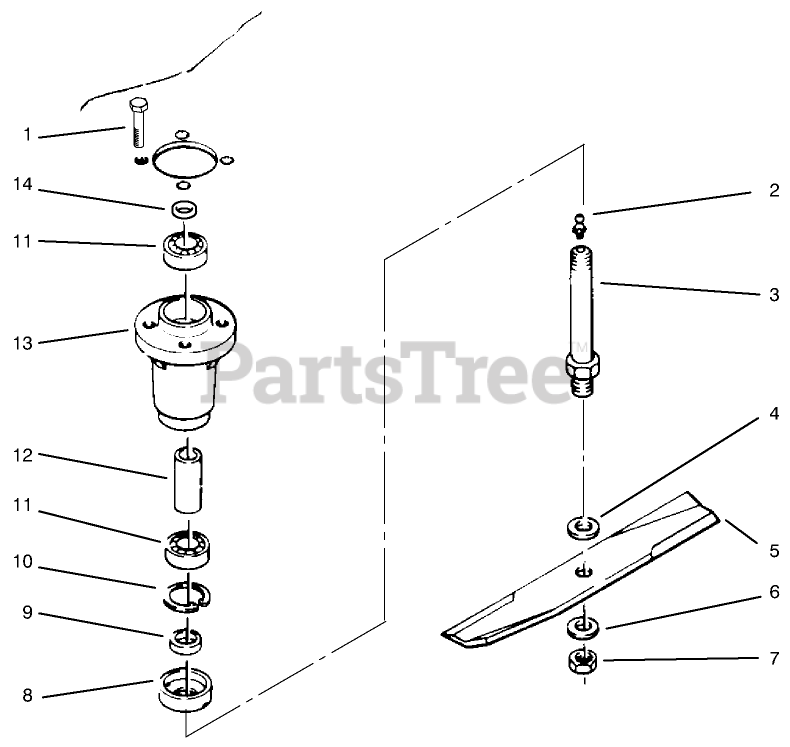

Spindle Assembly Parts Diagram

  • Title

1

Toro 9080326

SCREW-HH

$2.49

$

In Stock, only 3 left!

0

2

Toro 302-5

FITTING-GREASE

$3.99

$

In Stock, Qty 20+

0

3

Toro 112674

SHAFT-SPINDLE

$96.99

$

In Stock, only 4 left!

0

4

Toro 920257

See Supercession: 9202574
(Superseded to 9202574)

$2.49

$

In Stock, Qty 20+

0

5

Toro 106636

BLADE KIT (3 PACK)

$106.99

$

In Stock, only 2 left!

0

6

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

7

Toro 3220-7

NUT-JAM

$4.99

$

In Stock, Qty 20+

0

8

Toro 106067

See Supercession: 106067-03
(Superseded to 106067-03)

$16.99

$

In Stock, only 2 left!

0

9

Toro 106068

SPACER-BLADE

$8.49

$

In Stock, Qty 5

0

10

Toro 32120-42

RING-RETAINING

$1.49

$

In Stock, Qty 20+

0

11

Toro 109966

BEARING-BALL

$17.99

$

In Stock, Qty 11

0

12

Toro 116085

TUBE

$37.99

$

In Stock, only 2 left!

0

13

Toro 114568

HOUSING-SPINDLE

$110.99

$

In Stock, Qty 5

0

14

Toro 971015

O RING

$2.49

$

In Stock, Qty 8

0

Toro 110172

See Supercession: 111726
(Superseded to 111726)

Note: Not illustrated

$305.99

$

In Stock, only 1 left!

0
