78346 - Toro 42" Side-Discharge Mower Deck (SN: 059000001 - 059999999) (1995) SPINDLE ASSEMBLY Parts Diagram

42" Side-Discharge Mower Deck

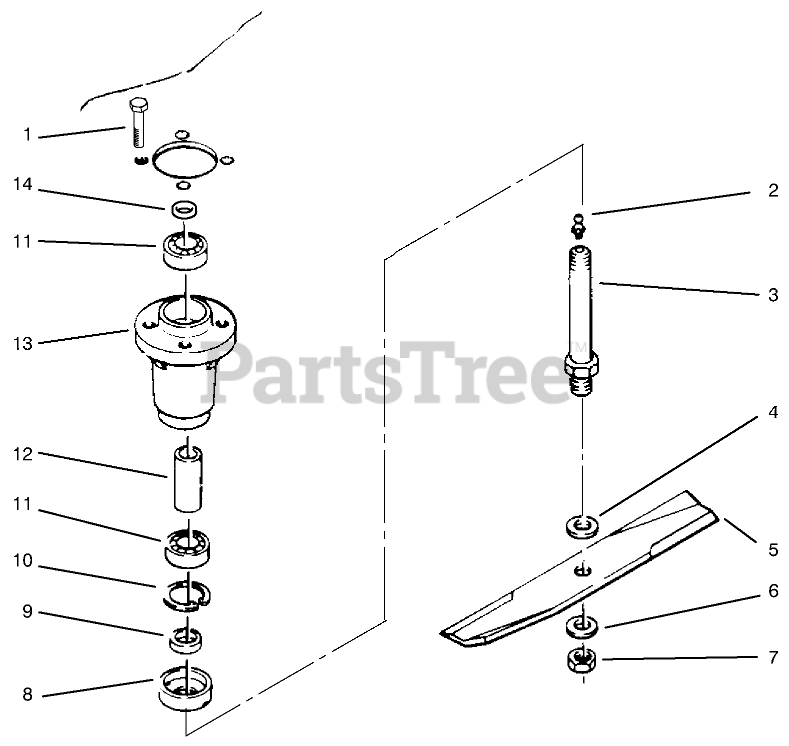

SPINDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 9080326

SCREW-HH

$2.49

$

In Stock, Qty 15

0

2

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

3

Toro 112674

SHAFT-SPINDLE

$90.99

$

In Stock, only 2 left!

0

4

Toro 920257

Washer
(Superseded to 9202574)

$2.49

$

In Stock, Qty 20+

0

5

Toro 106636

14IN BLADE KIT

$101.99

$

In Stock, Qty 8

0

6

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

7

Toro 3220-7

NUT-JAM

$4.99

$

In Stock, Qty 20+

0

8

Toro 106067

CUP-SPINDLE
(Superseded to 106067-03)

$16.99

$

In Stock, Qty 9

0

9

Toro 106068

SPACER-BLADE

$8.49

$

In Stock, Qty 10

0

10

Toro 32120-42

RING-RETAINING

$1.49

$

In Stock, Qty 20+

0

11

Toro 109966

BEARING-BALL

$15.99

$

In Stock, Qty 20+

0

12

Toro 116085

TUBE

$35.99

$

Usually ships in 3-6 days

0

13

Toro 114568

HOUSING-SPINDLE

$107.99

$

In Stock, only 3 left!

0

14

Toro 971015

O RING

$2.49

$

In Stock, Qty 20+

0

Toro 110172

Spindle Assembly (Incl. Ref. #8-14)
(Superseded to 111726)

Note: Not illustrated

$282.99

$

In Stock, only 4 left!

0
