78347 - Toro 42" Side-Discharge Mower Deck for Low Cut Mower (SN: 069000001 - 069999999) (1996) LIFT ASSEMBLY Parts Diagram

42" Side-Discharge Mower Deck for Low Cut Mower

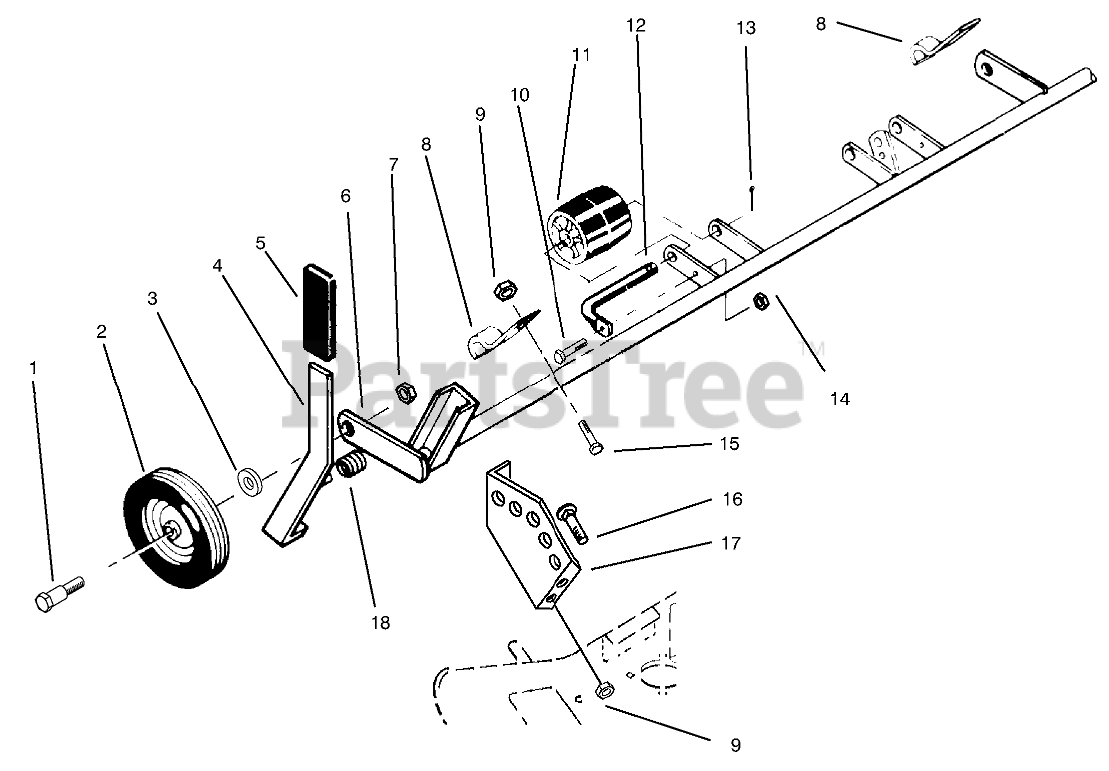

LIFT ASSEMBLY Parts Diagram

  • Title

1

Toro 5188

BOLT-SHOULDER

$5.99

$

In Stock, Qty 20+

0

2

Toro 109375

WHEEL ASM

$

$

Not available

3

Toro 9202424

Spacer
(Superseded to 920242)

$6.99

$

Usually ships in 3-6 days

0

4

Toro 115229

Lever
(Superseded to 115229-01)

$62.99

$

Usually ships in 3-6 days

0

5

Toro 103712

GRIP

$9.49

$

Usually ships in 3-6 days

0

6

Toro 115064

Support-Gage Wheel
(Superseded to 115064-01)

$

$

Not available

7

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

Usually ships in 3-6 days

0

8

Toro 110837

Clamp
(Superseded to 110837-03)

$37.99

$

In Stock, Qty 5

0

9

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 109376

ROLLER ASSY

$

$

Not available

12

Toro 110847

ROLLER-SHAFT

$29.99

$

In Stock, Qty 8

0

13

Toro 3272-21

PIN-COTTER

$3.99

$

In Stock, only 3 left!

0

14

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

15

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

16

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

17

Toro 102654

Quadrant
(Superseded to 102654-01)

$78.99

$

Usually ships in 3-6 days

0

18

Toro 101853

SPRING-COMPRESSION

$1.49

$

In Stock, Qty 5

0
