78355 - Toro 42" Recycler Mower Deck (SN: 039000001 - 039999999) (1993) SUSPENSION ASSEMBLY Parts Diagram

42" Recycler Mower Deck

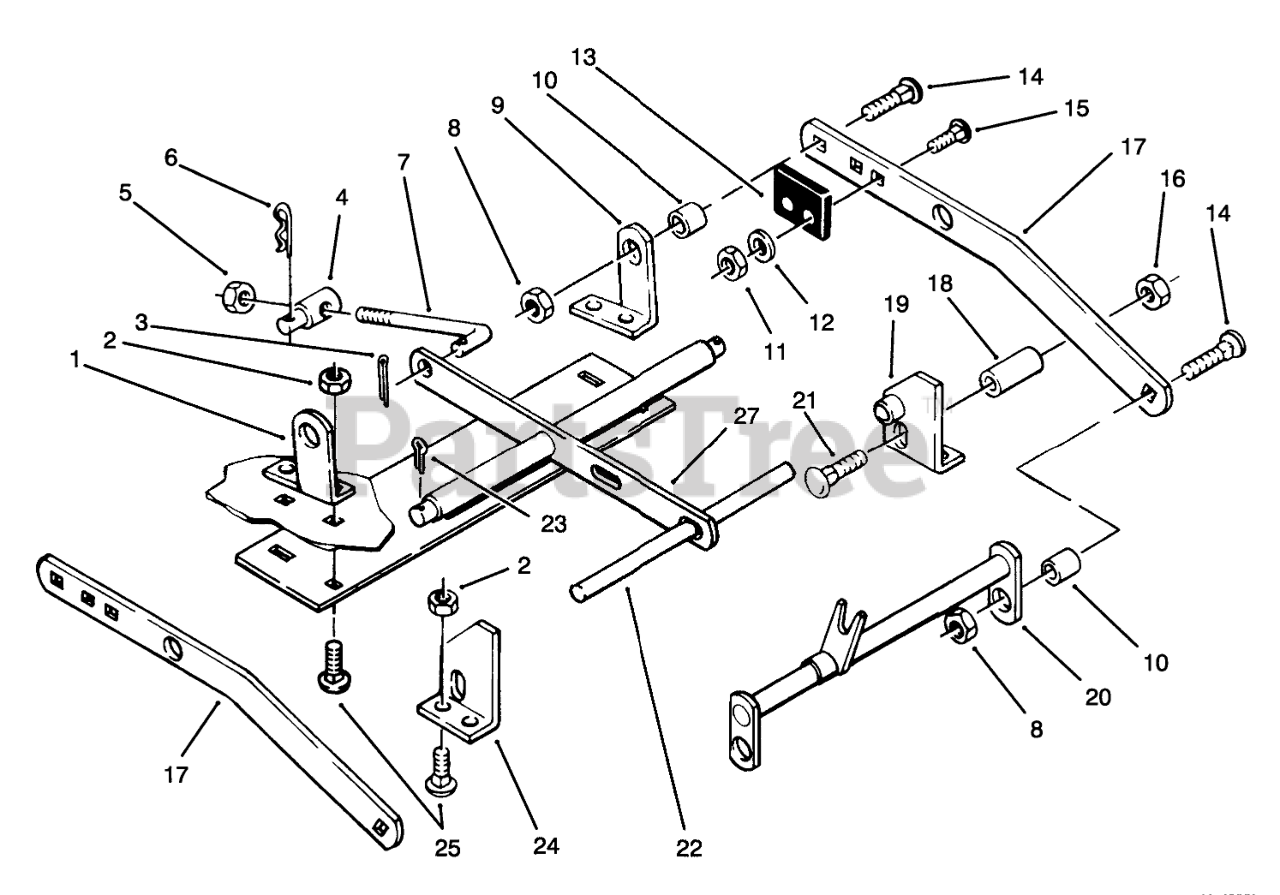

SUSPENSION ASSEMBLY Parts Diagram

  • Title

1

Toro 107512

Rear Bracket RH
(Superseded to 107512-01)

$49.99

$

Usually ships in 3-6 days

0

2

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

3

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

4

Toro 6739

TRUNNION-LIFT

$25.99

$

In Stock, only 4 left!

0

5

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

6

Toro 9335044

PIN-HAIR

$1.49

$

In Stock, Qty 13

0

7

Toro 101828

ROD-LEVEL ADJUST

$29.99

$

In Stock, only 1 left!

0

8

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.99

$

In Stock, Qty 20+

0

9

Toro 107511

LH Rear Bracket
(Superseded to 107511-01)

$49.99

$

Usually ships in 3-6 days

0

10

Toro 111044

SPACER

$1.49

$

In Stock, Qty 13

0

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 102322

BUMPER

$8.99

$

Usually ships in 3-6 days

0

14

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

15

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

16

Toro 9156644

Nut

$

$

Currently unavailable

17

Toro 101777

Bar Draft
(Superseded to 101777-01)

$106.99

$

Usually ships in 3-6 days

0

18

Toro 9793604

SPACER

$13.99

$

Usually ships in 3-6 days

0

19

Toro 102567

Front Bracket LH
(Superseded to 102567-01)

$64.99

$

Usually ships in 3-6 days

0

20

Toro 101758

Hitch
(Superseded to 101758-01)

$139.99

$

In Stock, only 1 left!

0

21

Toro 3232-3

BOLT-CARR

$3.99

$

In Stock, Qty 5

0

22

Toro 102570

Front Shaft
(Superseded to 102570-03)

$136.99

$

Usually ships in 3-6 days

0

23

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 16

0

24

Toro 102566

Front Bracket RH
(Superseded to 102566-01)

$64.99

$

Usually ships in 3-6 days

0

25

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

27

Toro 110268

Leveler
(Superseded to 110268-01)

$136.99

$

Usually ships in 3-6 days

0
