78360 - Toro 48" Side-Discharge Mower Deck (SN: 059000001 - 059999999) (1995)

48" Side-Discharge Mower Deck

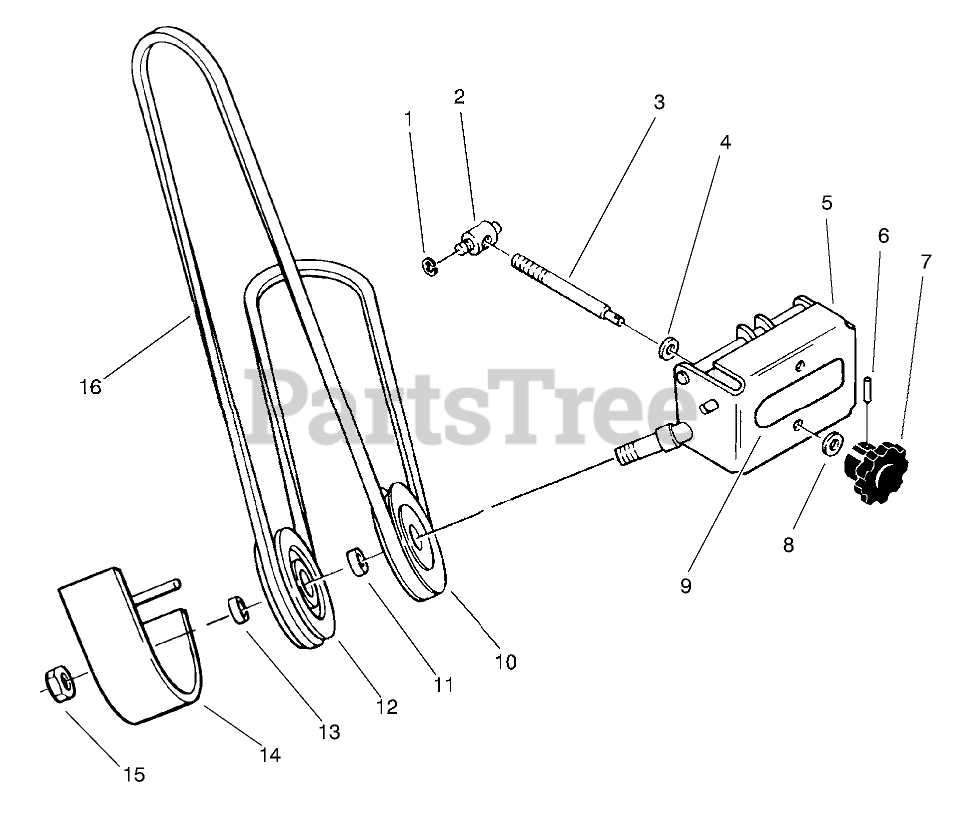

78360 - Toro 48" Side-Discharge Mower Deck (SN: 059000001 - 059999999) (1995) > Parts Diagrams (5) > IDLER ASSEMBLY

  • Title
105797

1

RING-RETAINING

Part# 105797

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.47

101708

2

TRUNNION-DOUBLE

Part# 101708

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $21.20

101842

3

ROD ADJ

Part# 101842

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $41.29

3256-24

4

WASHER-FLAT

Part# 3256-24

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.50

101728

5

Front Support

Part# 101728 (Superseded to 101728-01)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $141.58

933156

6

PIN-ROLL

Part# 933156

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.11

101851

7

KNOB-ADJUSTMENT

Part# 101851

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $16.25

108571

8

WASHER-SPRING

Part# 108571

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $6.90

92-8747

9

DECAL-ATTACH A-MATIC

Part# 92-8747

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.39

92-7103

10

PULLEY-IDLER

Part# 92-7103

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $39.12

101734

11

SPACER

Part# 101734

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.15

104975

12

PULLEY-FLAT IDLER

Part# 104975

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $39.12

101757

13

SPACER-OUTER

Part# 101757

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.20

9150076

14

Nut

Part# 9150076 (Superseded to 116-7306)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.23

102582

15

Belt Cover

Part# 102582 (Superseded to 102582-01)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $66.39

102742

16

V-BELT

Part# 102742 (Superseded to 94-2501)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $38.00

101657

Front Idler Assembly (Inc. Ref. #1-8 & 10-15)

Part# 101657

Note: Not illustrated

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $425.86
