78363 - Toro 48" Side-Discharge Mower Deck for 5xi Tractors (SN: 089000001 - 089999999) (1998) REINFORCEMENT PLATE ASSEMBLY Parts Diagram

48" Side-Discharge Mower Deck for 5xi Tractors

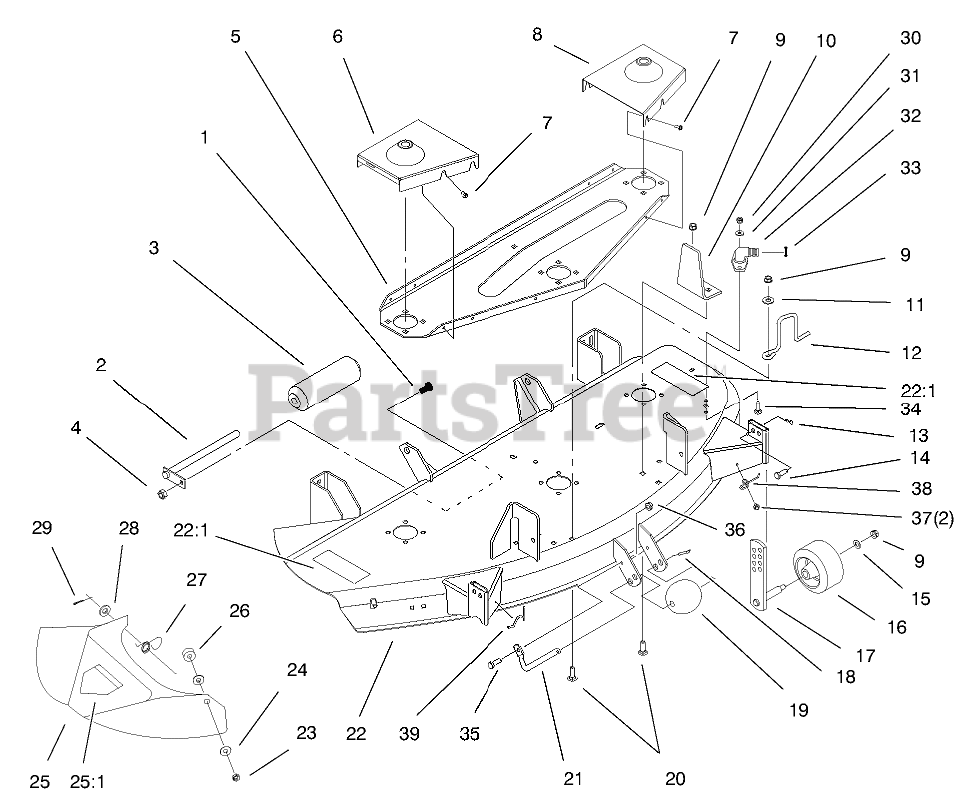

REINFORCEMENT PLATE ASSEMBLY Parts Diagram

  • Title

1

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

2

Toro 113603

ROLLER-SHAFT

$40.99

$

Usually ships in 3-6 days

0

3

Toro 113349

ROLLER-ANTI SCALP

$67.99

$

In Stock, only 2 left!

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 95-3879-01

PLATE-REINFORCE

$290.99

$

Usually ships in 3-6 days

0

6

Toro 95-3949-01

COVER-BELT, RH

$169.99

$

Usually ships in 3-6 days

0

7

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 20+

0

8

Toro 95-3950-01

COVER-BELT, LH

$

$

Not available

9

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 94-7642-01

BRACKET-GUIDE

$

$

Not available

11

Toro 3256-41

WASHER

$1.99

$

In Stock, Qty 6

0

12

Toro 95-3953

GUIDE-BELT

$

$

Not available

13

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

14

Toro 283-2

PIN-CLEVIS

$13.99

$

In Stock, only 3 left!

0

15

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 68-2730

WHEEL-GAGE
(Superseded to 1-603299)

$22.99

$

In Stock, Qty 20+

0

17

Toro 68-2350

GAGE-WHEEL

$115.99

$

In Stock, only 3 left!

0

18

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, Qty 6

0

19

Toro 29-4820

ROLLER

$16.99

$

In Stock, Qty 6

0

20

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 16

0

21

Toro 118960

SHAFT-ROLLER
(Superseded to 118960-03)

$37.99

$

In Stock, only 3 left!

0

22

Toro 98-5090

Deck ASM (Only On: 78363, 78364)
(Superseded to 99-8082)

$1781.99

$

Usually ships in 3-6 days

0

22

Toro 98-5091

Deck ASM (Only On: 78448)

$

$

Not available

22:1

Toro 92-7108

Decal-Danger (Only On: 78363, 78364)

$6.99

$

Usually ships in 3-6 days

0

22:1

Toro 93-7317

Decal-Danger (Only On: 78448)

$11.99

$

Usually ships in 3-6 days

0

23

Toro 9152366

NUT-HJ

$3.49

$

In Stock, only 2 left!

0

24

Toro 93-1633

WASHER

$2.99

$

In Stock, Qty 12

0

25

Toro 88-2750-01

Deflector ASM (Only On: 78363, 78364)
(Superseded to 99-3708)

$263.99

$

Usually ships in 3-6 days

0

25

Toro 94-1836-01

Deflector ASM (Only On: 78448)

$

$

Currently unavailable

25:1

Toro 93-1122

Decal-Danger (Only On: 78363, 78364)

$8.99

$

In Stock, Qty 16

0

25:1

Toro 93-7316

Decal-Danger (Only On: 78448)

$9.49

$

In Stock, Qty 20+

0

26

Toro 116080

BUSHING-PIVOT

$19.99

$

Usually ships in 3-6 days

0

27

Toro 93-1630

SPRING-DEFLECTOR

$18.99

$

Usually ships in 3-6 days

0

28

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

30

Toro 3296-16

Nut-Lock (Only On: 78448)

$1.49

$

In Stock, Qty 6

0

31

Toro 3256-1

Washer-Flat (Only On: 78448)

$0.99

$

In Stock, Qty 20+

0

32

Toro 95-2747

Fitting-Washout (Only On: 78448)
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 16

0

33

Toro 46-6290

0-Ring (Only On: 78448)

$2.99

$

In Stock, Qty 16

0

34

Toro 3229-1

Bolt-CARR (Only On: 78448)

$3.99

$

In Stock, Qty 11

0

35

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

36

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

37

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 20+

0

38

Toro 98-5032

SPRING-GAGE WHEEL, LH

$

$

Not available

39

Toro 98-5033

SPRING-GAGE WHEEL, RH

$18.99

$

Usually ships in 3-6 days

0
