78365 - Toro 48" Recycler Cutting Unit for 300 Series GT Classic Tractors (SN: 079000001 - 079999999) (1997)

48" Recycler Cutting Unit for 300 Series GT Classic Tractors

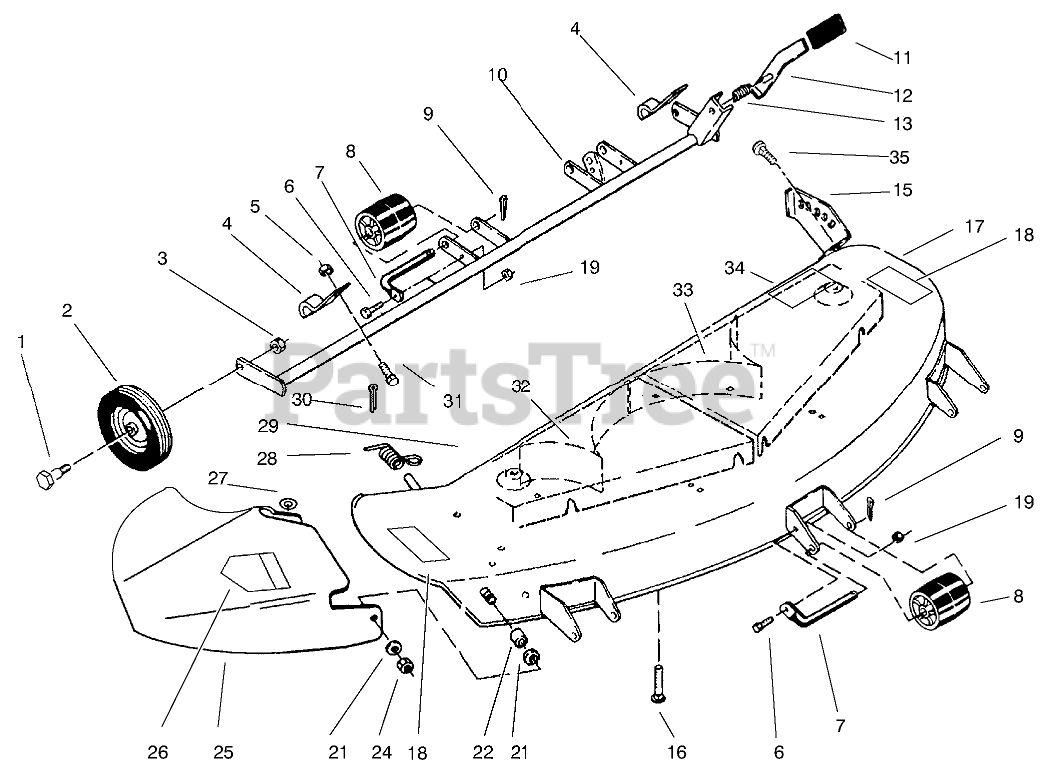

78365 - Toro 48" Recycler Cutting Unit for 300 Series GT Classic Tractors (SN: 079000001 - 079999999) (1997) > Parts Diagrams (6) > DECK ASSEMBLY

  • Title
5188

1

BOLT-SHOULDER

Part# 5188

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.46

110506

2

WHEEL

Part# 110506

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $24.59

32146-2

3

NUT-HEX

Part# 32146-2 (Superseded to 32153-2)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.48

110837

4

Clamp

Part# 110837 (Superseded to 110837-03)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $17.64

3296-39

5

NUT-LOCK, NI

Part# 3296-39

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.05

321-4

6

SCREW-HH

Part# 321-4

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.78

110847

7

ROLLER-SHAFT

Part# 110847

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $19.31

94-1599

8

ROLLER

Part# 94-1599

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $8.37

3272-21

9

PIN-COTTER

Part# 3272-21

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.19

119750

10

Support-Gage Wheel

Part# 119750 (Superseded to 119750-01)

OEM Warranty Repair Part for Toro

Not available

103712

11

GRIP

Part# 103712

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $6.38

115213

12

Lever

Part# 115213 (Superseded to 115213-01)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $20.00

101853

13

SPRING-COMPRESSION

Part# 101853

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.89

102654

15

Quadrant

Part# 102654 (Superseded to 102654-01)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $48.67

3231-2

16

BOLT-CARR

Part# 3231-2

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.36

94-9769

17

Deck-Assembly (Incl. Ref. #18, 32 & 33)

Part# 94-9769

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1364.57

92-7108

18

DECAL-DANGER

Part# 92-7108

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.45

3296-42

19

NUT-LOCK, NI

Part# 3296-42

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.35

93-1633

21

WASHER

Part# 93-1633

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.23

116080

22

BUSHING-PIVOT

Part# 116080

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $12.87

9152366

24

NUT-HJ

Part# 9152366

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.34

88-2750

25

Chute Assembly (Incl. Ref. #26)

Part# 88-2750 (Superseded to 99-3708)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $170.60

93-1122

26

DECAL-DANGER

Part# 93-1122

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $7.19

3256-26

27

WASHER-FLAT

Part# 3256-26

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.45

93-1630

28

SPRING-DEFLECTOR

Part# 93-1630

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $12.72

3272-10

30

PIN-COTTER

Part# 3272-10

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.84

3231-25

31

BOLT-CARR

Part# 3231-25

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.02

115074

32

BAFFLE-DECK RH

Part# 115074

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $122.23

115073

33

BAFFLE-DECK LH

Part# 115073

OEM Warranty Repair Part for Toro

Not available

106753

34

DECAL-HEIGHT & BELT

Part# 106753

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.09

3274-80

35

SCREW-HH

Part# 3274-80

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.76
