78390 - Toro 60" Side-Discharge Mower Deck (SN: 059000001 - 059999999) (1995) DECK DRIVE BELT, IDLER AND SPINDLE PULLEY Parts Diagram

60" Side-Discharge Mower Deck

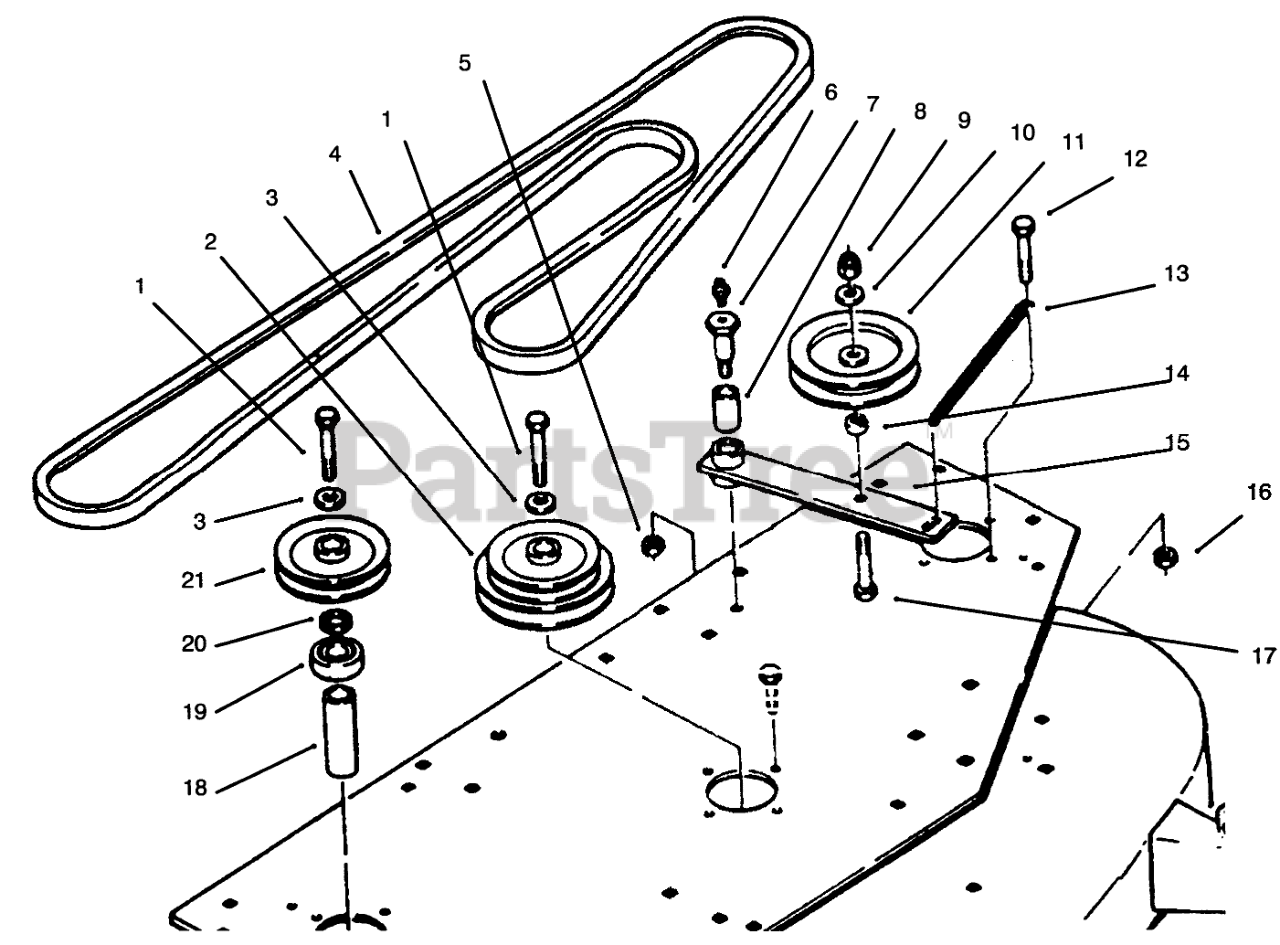

DECK DRIVE BELT, IDLER AND SPINDLE PULLEY Parts Diagram

  • Title

1

Toro 113054

Pulley-Center Spindle
(Superseded to 113054-03)

$

$

Not available

3

Toro 114810

WASHER-SPECIAL

$

$

Not available

4

Toro 112449

BELT-V

$270.99

$

In Stock, only 3 left!

0

5

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

6

Toro 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 19

0

7

Toro 120060

BOLT-SHOULDER

$

$

Not available

8

Toro 113628

BUSHING

$

$

Not available

9

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 114144

PULLEY-IDLER

$160.99

$

Usually ships in 3-6 days

0

12

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Toro 100071

SPRING-EXTENSION

$12.99

$

In Stock, Qty 11

0

14

Toro 9118

SPACER

$

$

Not available

15

Toro 114835

Idler Arm Assembly (Incl. Ref. #9)
(Superseded to 99-5856)

$

$

Not available

16

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 12

0

17

Toro 325-10

SCREW-HH

$5.99

$

In Stock, only 3 left!

0

18

Toro Ref

Spacer

$

$

Currently unavailable

19

Toro Ref

Spacer

$

$

Currently unavailable

20

Toro Ref

Spacer

$

$

Currently unavailable

21

Toro 114139

PULLEY-OUTER

$153.99

$

Usually ships in 3-6 days

0
