78390 - Toro 60" Side-Discharge Mower Deck (SN: 069000001 - 069999999) (1996) DRIVE ATTACHMENT Parts Diagram

60" Side-Discharge Mower Deck

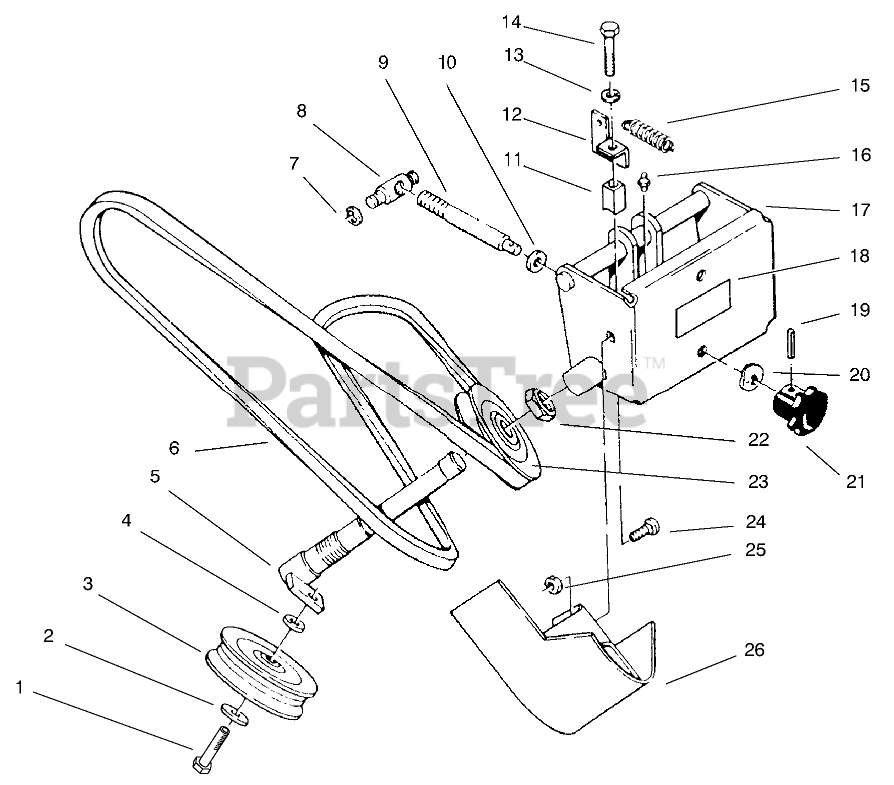

DRIVE ATTACHMENT Parts Diagram

  • Title

1

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

2

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

3

Toro 104975

PULLEY-FLAT IDLER

$60.99

$

In Stock, only 2 left!

0

4

Toro 113100

SPACER

$

$

Not available

5

Toro 113097

ASS'Y-IDLER ARM

$

$

Not available

6

Toro 113072

BELT-103" A SECTION

$47.99

$

In Stock, only 3 left!

0

7

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 20+

0

8

Toro 101708

TRUNNION-DOUBLE

$34.99

$

Usually ships in 3-6 days

0

9

Toro 101842

ROD ADJ

$66.99

$

Usually ships in 3-6 days

0

10

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 113101

BLOCK-GUIDE

$

$

Not available

12

Toro 113102

Bracket
(Superseded to 113102-03)

$

$

Not available

13

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

14

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 107677

SPRING-BRAKE

$18.99

$

In Stock, only 3 left!

0

16

Toro 302-26

FITTING-GREASE

$7.49

$

In Stock, only 1 left!

0

17

Toro 113076

Front Idler Support
(Superseded to 113076-01)

$349.99

$

Usually ships in 3-6 days

0

18

Toro 92-8747

DECAL-ATTACH A-MATIC

$7.99

$

In Stock, only 1 left!

0

19

Toro 933156

PIN-ROLL

$1.49

$

In Stock, only 3 left!

0

20

Toro 108571

WASHER-SPRING

$10.99

$

Usually ships in 3-6 days

0

21

Toro 101851

KNOB-ADJUSTMENT

$26.99

$

In Stock, only 4 left!

0

22

Toro 3220-7

NUT-JAM

$4.99

$

In Stock, Qty 20+

0

23

Toro 92-7103

PULLEY-IDLER

$56.99

$

In Stock, Qty 5

0

24

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

25

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

26

Toro 113073

Cover
(Superseded to 113073-01)

$179.99

$

In Stock, only 1 left!

0

Toro 115441

Pulley Box Assembly (Incl. Ref.#1-5, 7-17, & 19-26)

Note: Not illustrated

$

$

Not available
