78390 - Toro 60" Side-Discharge Mower Deck (SN: 089000001 - 089999999) (1998) DECK SUSPENSION Parts Diagram

60" Side-Discharge Mower Deck

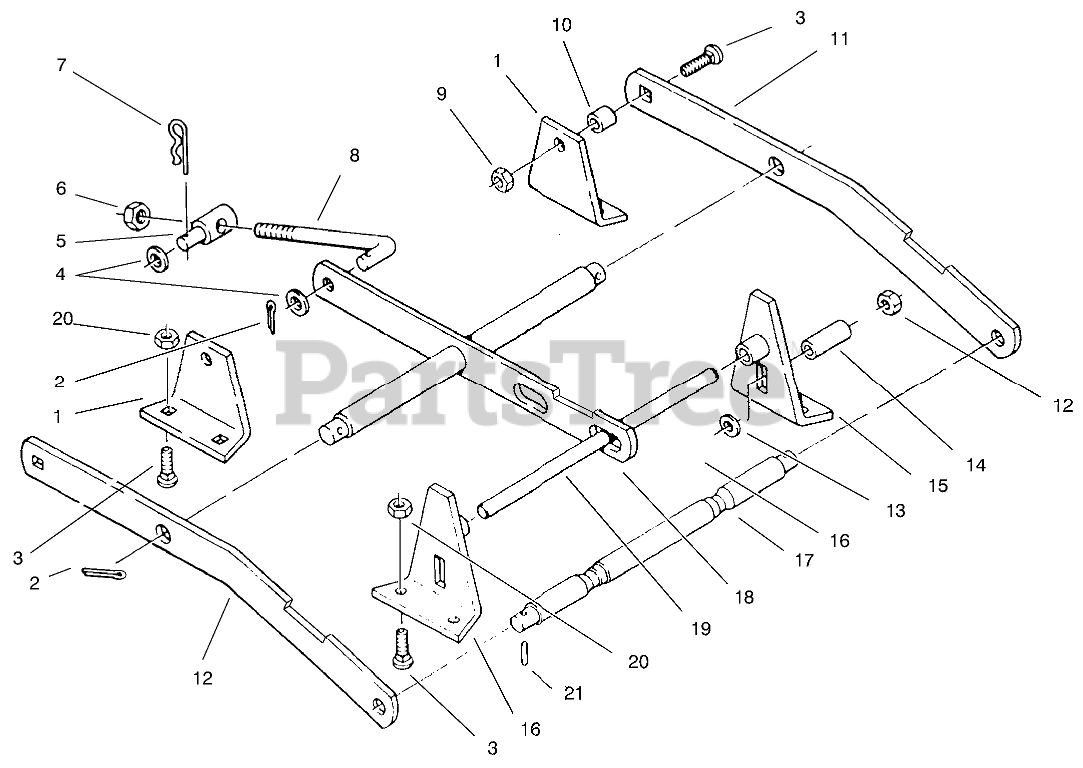

DECK SUSPENSION Parts Diagram

  • Title

1

Toro 113055

Rear Deck Bracket
(Superseded to 113055-01)

$

$

Not available

2

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 16

0

3

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

4

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 102213

TRUNION

$84.99

$

Usually ships in 3-6 days

0

6

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 9335124

PIN-HAIR

$2.99

$

In Stock, Qty 5

0

8

Toro 113070

ROD LEVELER

$

$

Not available

9

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.99

$

In Stock, Qty 20+

0

10

Toro 114127

SPACER

$9.49

$

Usually ships in 3-6 days

0

11

Toro 115350

Bar-Draft
(Superseded to 115350-01)

$124.99

$

Usually ships in 3-6 days

0

12

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

13

Toro 9202154

WASHER-FLAT

$3.49

$

In Stock, Qty 15

0

14

Toro 7361

SPACER

$

$

Not available

15

Toro 113064

Front Deck Bracket
(Superseded to 113064-01)

$89.99

$

Usually ships in 3-6 days

0

16

Toro 3232-3

BOLT-CARR

$3.99

$

In Stock, Qty 5

0

17

Toro 113069

Shaft
(Superseded to 113069-01)

$

$

Not available

18

Toro 113061

Leveler
(Superseded to 113061-01)

$

$

Not available

19

Toro 102570

Front Shaft
(Superseded to 102570-03)

$136.99

$

Usually ships in 3-6 days

0

20

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

21

Toro 933270

PIN

$6.99

$

In Stock, Qty 6

0
