78425 - Toro 42" Recycler Mower Deck (SN: 039000001 - 039999999) (1993) Pulley Assembly Parts Diagram

42" Recycler Mower Deck

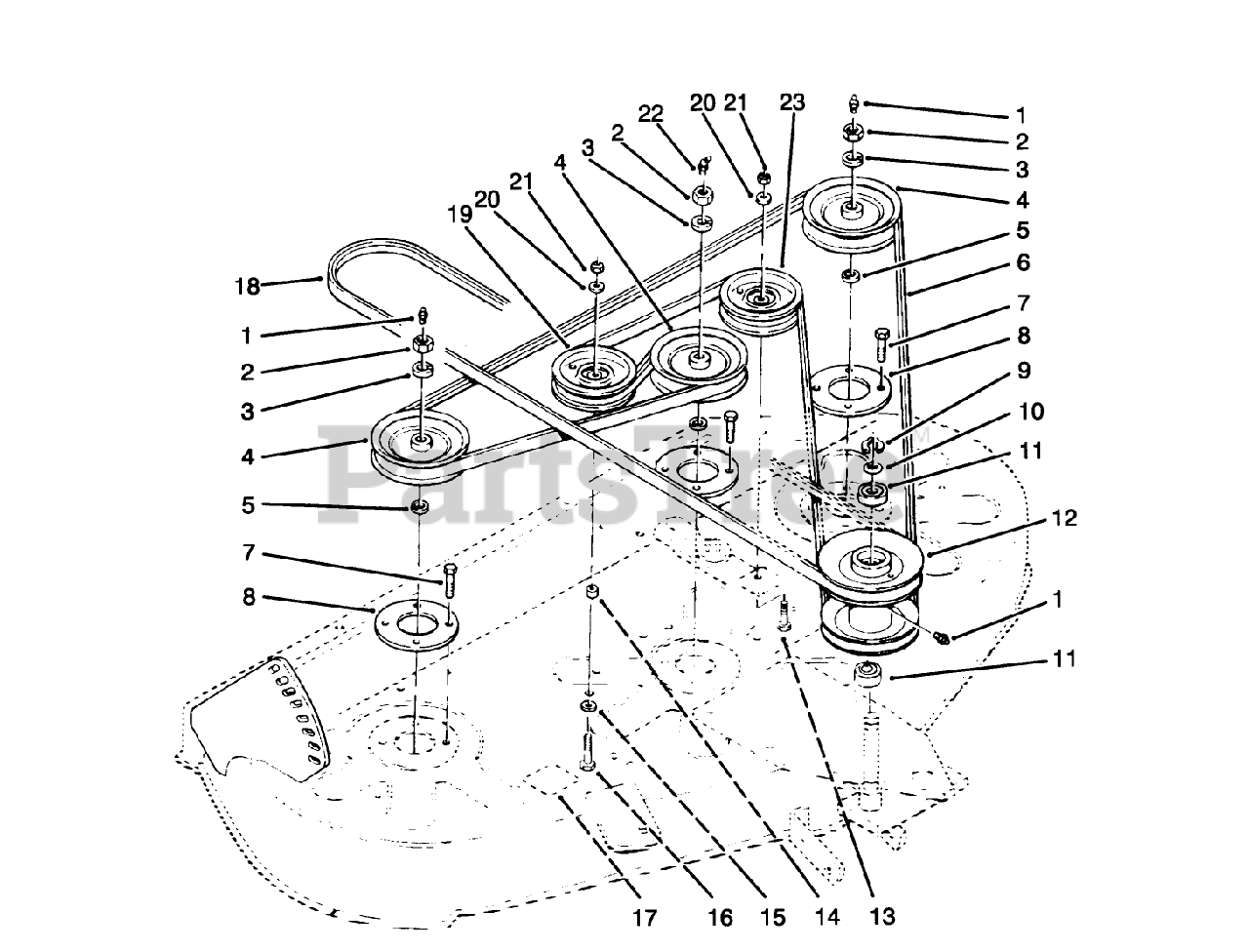

Pulley Assembly Parts Diagram

  • Title

1

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

2

Toro 3220-6

NUT-JAM

$1.49

$

In Stock, Qty 7

0

3

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

4

Toro 116170

See Supercession: 79-7510
(Superseded to 79-7510)

$115.99

$

In Stock, only 1 left!

0

5

Toro 920215

See Supercession: 9202154
(Superseded to 9202154)

$3.49

$

In Stock, Qty 14

0

6

Toro 116409

V-BELT

$

$

Not available

7

Toro 9080326

SCREW-HH

$2.49

$

In Stock, Qty 15

0

8

Toro 116073

SPACER-SPINDLE

$85.99

$

Usually ships in 3-6 days

0

9

Toro 105005

RETAINING RING

$

$

Not available

10

Toro 971015

O RING

$2.49

$

In Stock, Qty 11

0

11

Toro 109966

BEARING-BALL

$17.99

$

In Stock, Qty 20+

0

12

Toro 116425

PULLEY-COUNTER SHAFT

$859.99

$

Usually ships in 3-6 days

0

13

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 110856

DISCONTINUED

$

$

Not available

15

Toro 2844

WASHER

$3.49

$

In Stock, Qty 14

0

16

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

17

Toro 116286

DECAL-BELT INSTALL

$11.99

$

Usually ships in 3-6 days

0

18

Toro 116408

V-BELT

$156.99

$

Usually ships in 3-6 days

0

19

Toro 115119

See Supercession: 92-7084
(Superseded to 92-7084)

$41.99

$

In Stock, only 2 left!

0

20

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

22

Toro 1481

FITTING-GREASE

$6.99

$

In Stock, only 2 left!

0

23

Toro 116859

PULLEY-FLAT IDLER

$99.99

$

Usually ships in 3-6 days

0
