78425 - Toro 42" Recycler Mower Deck (SN: 039000001 - 039999999) (1993) Spindle Blade Assembly Parts Diagram

42" Recycler Mower Deck

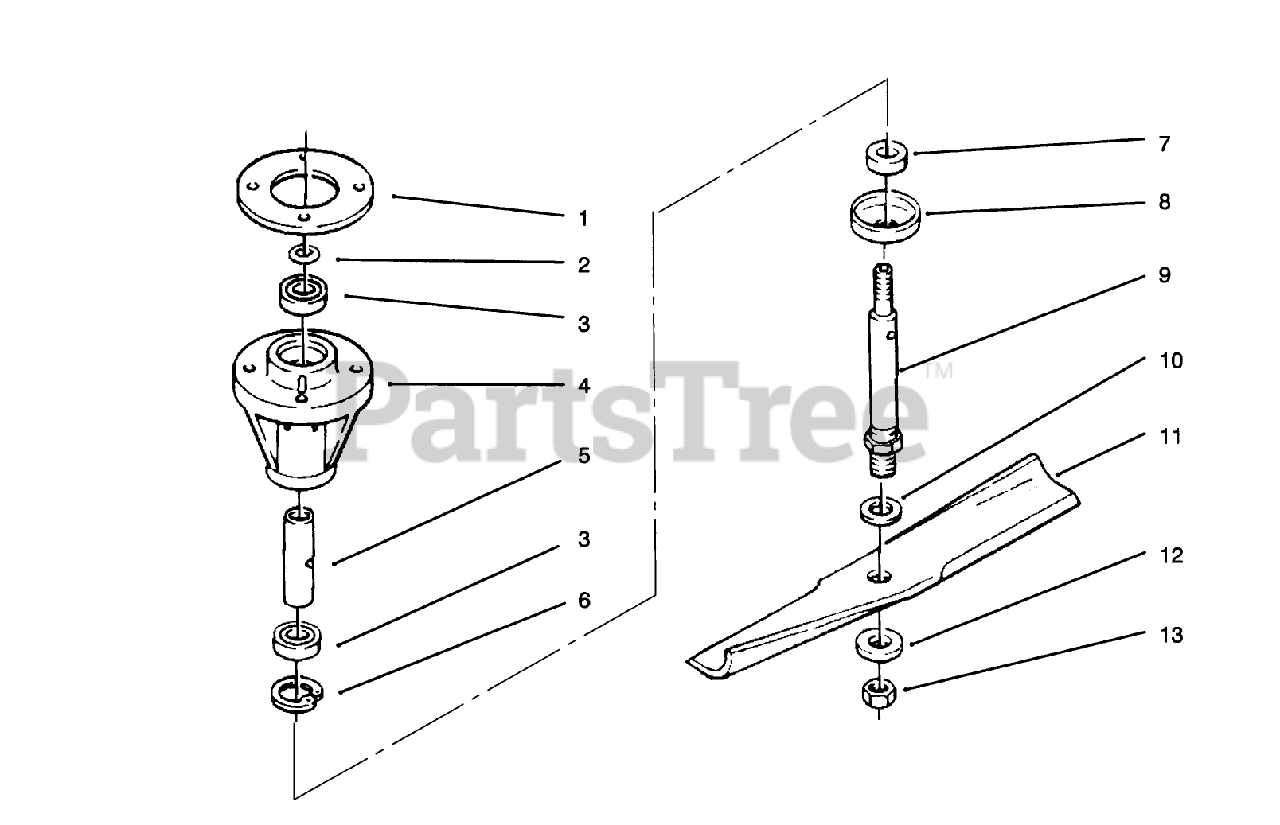

Spindle Blade Assembly Parts Diagram

  • Title

1

Toro 116073

SPACER-SPINDLE

$85.99

$

Usually ships in 3-6 days

0

2

Toro 971015

O RING

$2.49

$

In Stock, Qty 11

0

3

Toro 109966

BEARING-BALL

$17.99

$

In Stock, Qty 20+

0

4

Toro 114568

HOUSING-SPINDLE

$107.99

$

In Stock, Qty 6

0

5

Toro 116085

TUBE

$36.99

$

In Stock, only 1 left!

0

6

Toro 32120-42

RING-RETAINING

$1.49

$

In Stock, Qty 20+

0

7

Toro 106068

SPACER-BLADE

$8.49

$

In Stock, Qty 8

0

8

Toro 106067

See Supercession: 106067-03
(Superseded to 106067-03)

$16.99

$

In Stock, Qty 6

0

9

Toro 112674

SHAFT-SPINDLE

$94.99

$

In Stock, only 2 left!

0

10

Toro 920257

See Supercession: 9202574
(Superseded to 9202574)

$2.49

$

In Stock, Qty 20+

0

11

Toro 14-4879

BLADE KIT (3- 79-2920)

$135.99

$

In Stock, only 2 left!

0

12

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

13

Toro 3320-7

Nut-Jam

$

$

Currently unavailable

Toro 110172

See Supercession: 111726
(Superseded to 111726)

$296.99

$

In Stock, only 3 left!

0
