78431 - Toro E-Z Vac HD Twin Bagger for Titan HD Mower (SN: 400000000 - 407089999) Twin Bagger and Hood Assembly Parts Diagram

E-Z Vac HD Twin Bagger for Titan HD Mower

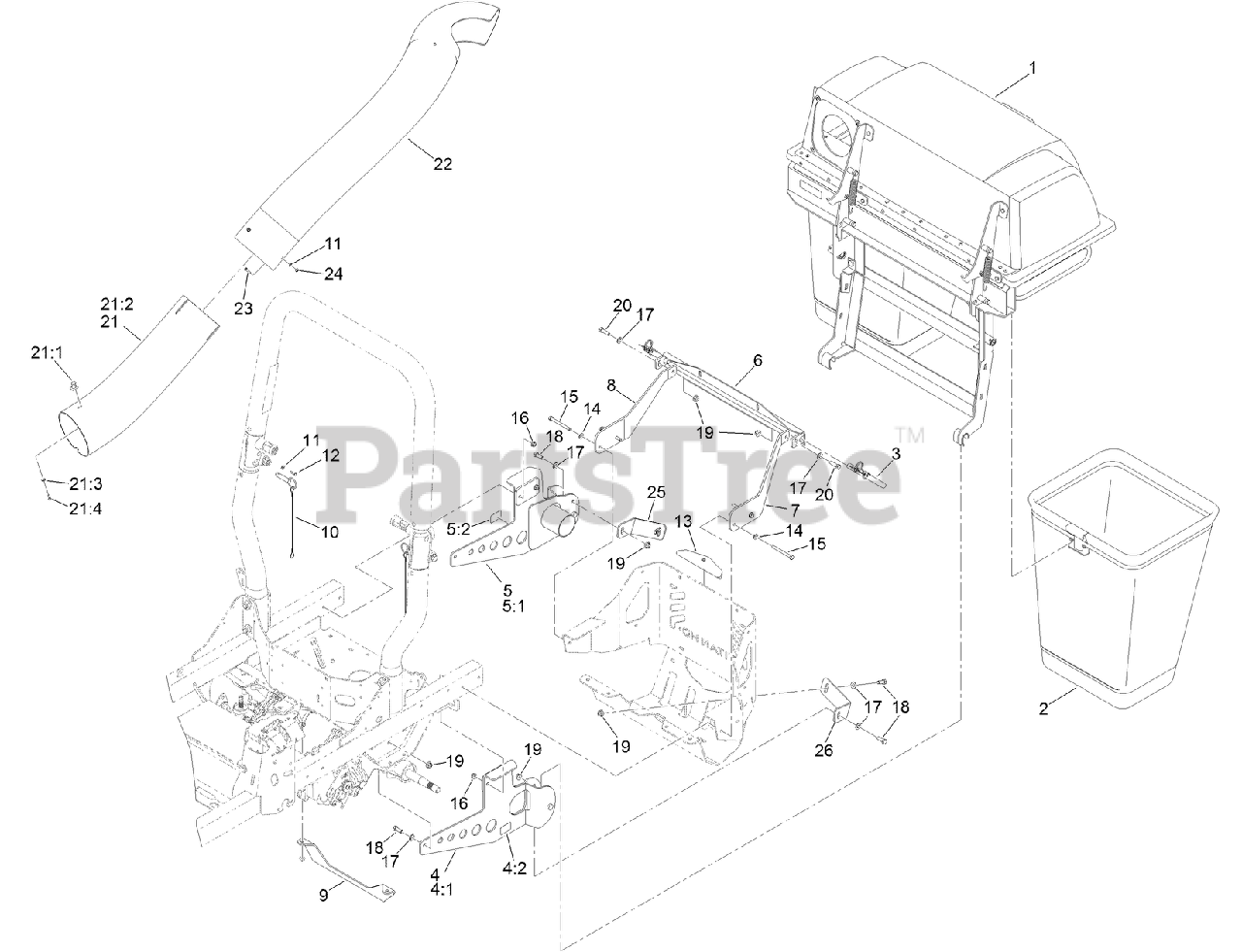

Twin Bagger and Hood Assembly Parts Diagram

  • Title

1

Toro 126-8579

TWIN BAG HOOD ASM

$1296.99

$

Usually ships in 3-6 days

0

2

Toro 116-0754

BAG AND FRAME ASM

$208.99

$

In Stock, only 1 left!

0

3

Toro 116-0458

PIN-MOUNT, BAGGER

$17.99

$

In Stock, Qty 5

0

4

Toro 126-9661

SUPPORT-BAGGER, LOWER LH

$247.99

$

Usually ships in 3-6 days

0

4:1

Toro 126-9146-03

SUPPORT-BAGGER, LOWER LH

$212.99

$

Usually ships in 3-6 days

0

4:2

Toro 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 1 left!

0

5

Toro 126-9660

SUPPORT-BAGGER, LOWER RH

$263.99

$

Usually ships in 3-6 days

0

5:1

Toro 126-9149-03

SUPPORT-BAGGER, LOWER RH

$

$

Currently unavailable

5:2

Toro 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 1 left!

0

6

Toro 126-9262-03

SUPPORT-BAGGER, UPPER

$136.99

$

Usually ships in 3-6 days

0

7

Toro 126-9266-03

BRACKET-UPPER, LH

$47.99

$

Usually ships in 3-6 days

0

8

Toro 126-9265-03

BRACKET-UPPER, RH

$47.99

$

Usually ships in 3-6 days

0

9

Toro 126-5672-03

SUPPORT-TRANSMISSION

$77.99

$

Usually ships in 3-6 days

0

10

Toro 106-9951

HITCH PIN ASM

$54.99

$

In Stock, only 1 left!

0

11

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 32104-4

SCREW

$1.49

$

Usually ships in 3-6 days

0

13

Toro 126-8299

COVER-HITCH

$8.99

$

Usually ships in 3-6 days

0

14

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 10

0

15

Toro 126-8742

SCREW-HH

$1.99

$

In Stock, only 4 left!

0

16

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 13

0

17

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

19

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

20

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

21

Toro 109-2043

LOWER TUBE ASM

$290.99

$

Usually ships in 3-6 days

0

21:1

Toro 109-2038

TUBE-LOWER, SHORT

$

$

Currently unavailable

21:2

Toro 103-4081

LATCH-KEEPER

Note: Kit No. 103-4188 - Contains catch, rubber latch, and mounting hardware

$15.99

$

Usually ships in 3-6 days

0

21:3

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

21:4

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 109-2036

TUBE-UPPER

$313.99

$

Usually ships in 3-6 days

0

23

Toro 32105-13

SCREW-HWH

$1.99

$

Usually ships in 3-6 days

0

24

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 11

0

25

Toro 126-9612-03

BRACKET-BAGGER, RH

$21.99

$

Usually ships in 3-6 days

0

26

Toro 126-9613-03

BRACKET-BAGGER, LH

$21.99

$

Usually ships in 3-6 days

0
