78434 - Toro 52" Blower and Drive Kit for E-Z Vac HD Bagger (SN: 400000000 - 999999999) BLOWER AND DRIVE ASSEMBLY Parts Diagram

52" Blower and Drive Kit for E-Z Vac HD Bagger

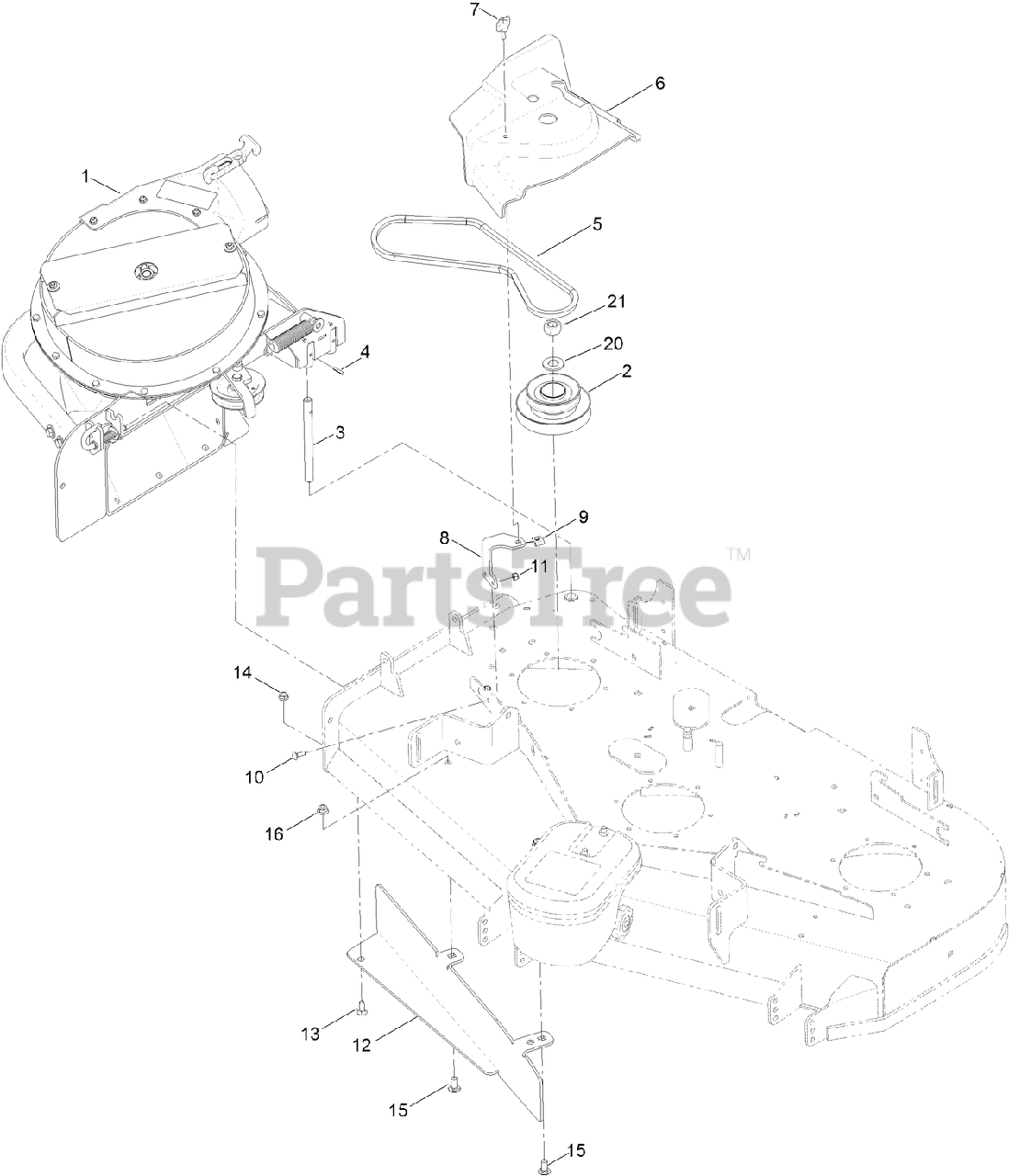

BLOWER AND DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 126-7697

BLOWER ASM

$2512.99

$

Usually ships in 3-6 days

0

2

Toro 126-7716

DRIVE-JACKSHAFT

$172.99

$

Usually ships in 3-6 days

0

3

Toro 1-353050

SHAFT-CATCHER, GRASS

$18.99

$

In Stock, only 2 left!

0

4

Toro 1-806323

PIN-ROLL

$1.49

$

In Stock, Qty 5

0

5

Toro 112-2343

BELT-V

$43.99

$

In Stock, only 3 left!

0

6

Toro 126-9163

BELT-COVER

$198.99

$

Usually ships in 3-6 days

0

7

Toro 98-8332

KNOB

$5.49

$

In Stock, Qty 5

0

8

Toro 115-3637-01

BRACKET-COVER, BELT

$27.99

$

Usually ships in 3-6 days

0

9

Toro 609900

NUT-SPEED

$9.49

$

Usually ships in 3-6 days

0

10

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

11

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

12

Toro 120-3250-01

BAFFLE-BAGGER

$129.99

$

Usually ships in 3-6 days

0

13

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

14

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 3231-27

SCREW-CARR

$4.99

$

In Stock, Qty 6

0

16

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

20

Toro 103-2802

WASHER

$5.49

$

In Stock, Qty 20+

0

21

Toro 116-7306

NUT-HEX

$2.99

$

In Stock, Qty 20+

0
