78442 - Toro 42" Rear-Discharge Mower Deck for 5xi Tractors (SN: 089000001 - 089999999) (1998) SPINDLE & BLADE ASSEMBLY Parts Diagram

42" Rear-Discharge Mower Deck for 5xi Tractors

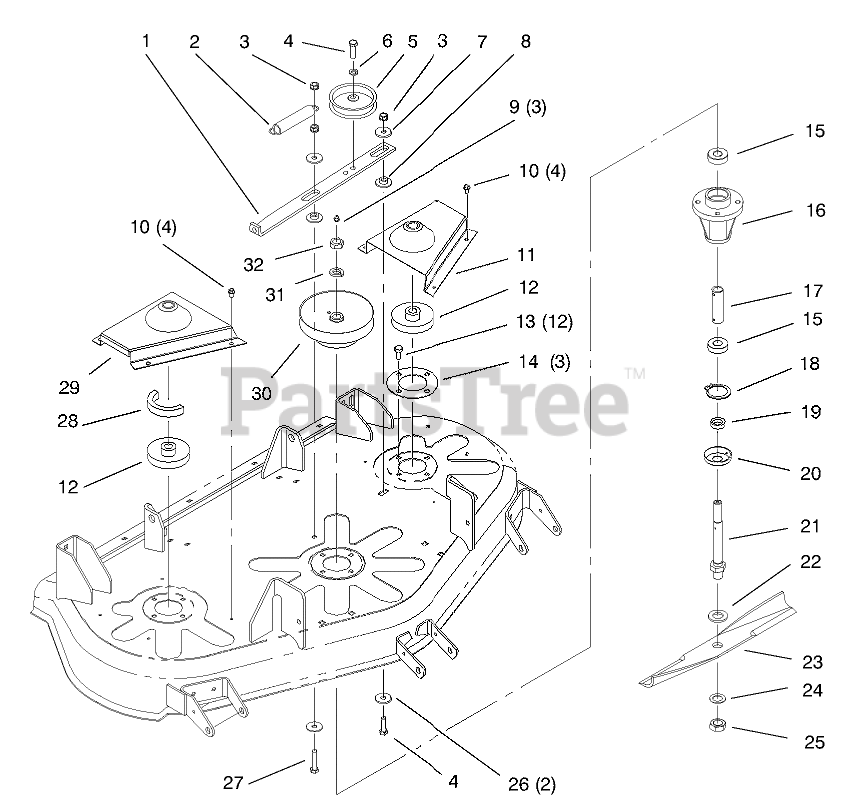

SPINDLE & BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 106120

BAR-IDLER SUPPORT

$83.99

$

In Stock, only 2 left!

0

2

Toro 100071

SPRING-EXTENSION

$12.99

$

In Stock, only 3 left!

0

3

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

4

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

5

Toro 92-7101

PULLEY-IDLER, FLAT

$44.99

$

In Stock, only 1 left!

0

6

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 8

0

7

Toro 107675

WASHER

$3.49

$

In Stock, Qty 20+

0

8

Toro 107674

SPACER-BUSHING

$2.49

$

In Stock, Qty 20+

0

9

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

10

Toro 46-8560

SCREW-HHFTF

$2.49

$

In Stock, Qty 20+

0

11

Toro 95-4098-01

COVER-BELT 42 DECK (RED)

$133.99

$

Usually ships in 3-6 days

0

12

Toro 109967

PULLEY

$87.99

$

In Stock, only 1 left!

0

13

Toro 9080326

SCREW-HH

$2.49

$

In Stock, Qty 15

0

14

Toro 106117

PLATE-SPINDLE

$22.99

$

Usually ships in 3-6 days

0

15

Toro 109966

BEARING-BALL

$17.99

$

In Stock, Qty 20+

0

16

Toro 114568

HOUSING-SPINDLE

$107.99

$

In Stock, Qty 6

0

17

Toro 116085

TUBE

$36.99

$

In Stock, only 1 left!

0

18

Toro 32120-42

RING-RETAINING

$1.49

$

In Stock, Qty 20+

0

19

Toro 106068

SPACER-BLADE

$8.49

$

In Stock, Qty 8

0

20

Toro 106067

CUP-SPINDLE
(Superseded to 106067-03)

$16.99

$

In Stock, Qty 6

0

21

Toro 112674

SHAFT-SPINDLE

$94.99

$

In Stock, only 2 left!

0

22

Toro 9202574

WASHER-FLAT

$2.49

$

In Stock, Qty 20+

0

23

Toro 106108

BLADE-14.5IN
(Superseded to 106635)

$104.99

$

In Stock, only 2 left!

0

24

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

25

Toro 3220-7

NUT-JAM

$4.99

$

In Stock, Qty 16

0

26

Toro 2844

WASHER

$3.49

$

In Stock, Qty 14

0

27

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Toro 95-4230

V-BELT-42IN DECK

$124.99

$

Usually ships in 3-6 days

0

29

Toro 95-4099-01

COVER - BELT 42 DECK (RED)

$

$

Not available

30

Toro 95-4049

PULLEY-DOUBLE

$398.99

$

In Stock, only 1 left!

0

31

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

32

Toro 3220-6

NUT-JAM

$1.49

$

In Stock, Qty 7

0
