78445 - Toro 50" Side-Discharge Mower Deck (SN: 049000001 - 049999999) (1994) PULLEY & SPINDLE ASSEMBLY Parts Diagram

50" Side-Discharge Mower Deck

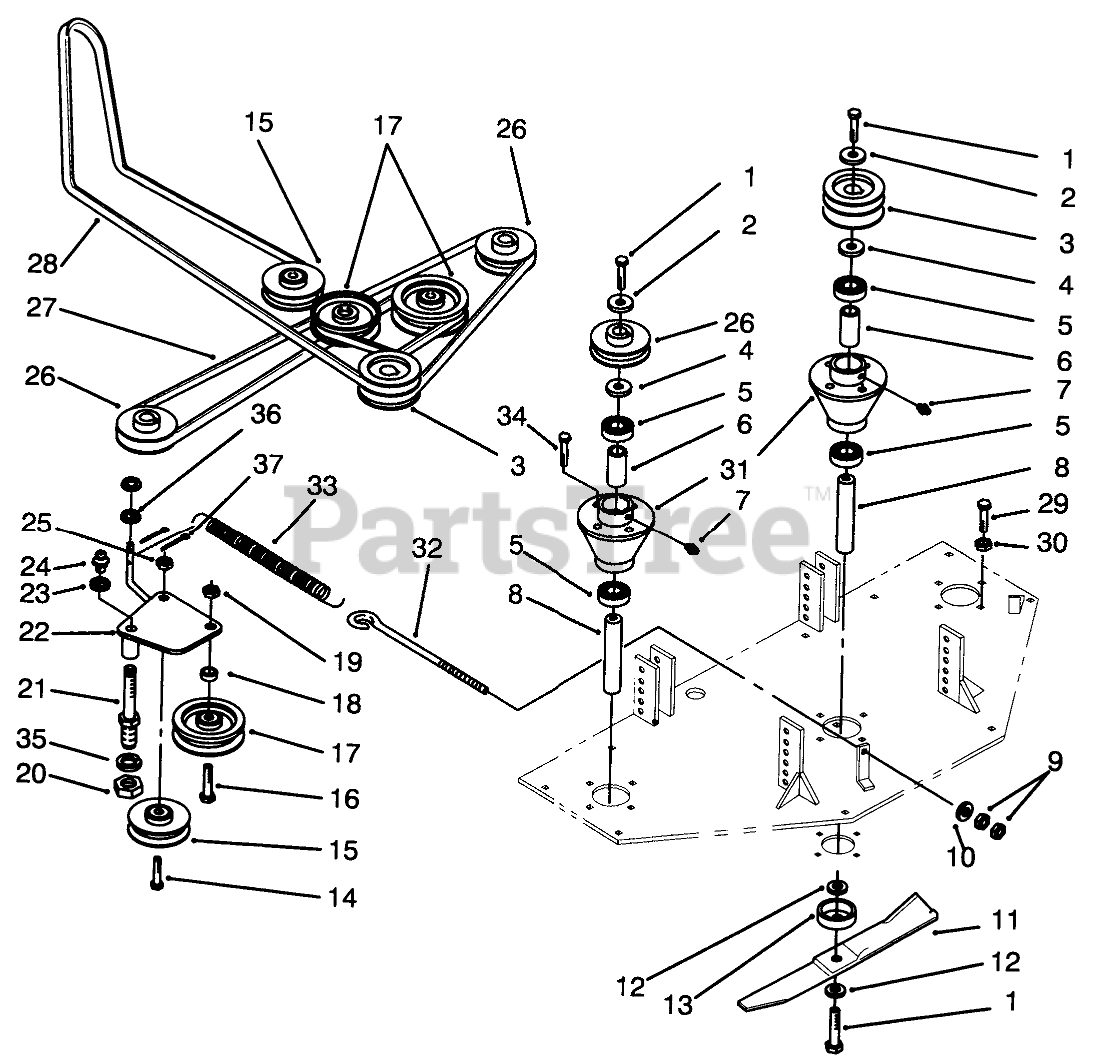

PULLEY & SPINDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 327-60

Bolt

$

$

Currently unavailable

2

Toro 114810

WASHER-SPECIAL

$

$

Not available

3

Toro 113524

PULLEY-CENTER

$253.99

$

In Stock, only 1 left!

0

Toro 113526

PULLEY-CENTER

Note: Not illustrated

$

$

Not available

4

Toro 110047

SPACER

$

$

Not available

5

Toro 113514

BEARING-BALL

$19.99

$

In Stock, Qty 19

0

6

Toro 113511

TUBE

$43.99

$

Usually ships in 3-6 days

0

7

Toro 1481

FITTING-GREASE

$6.49

$

In Stock, only 4 left!

0

8

Toro 113513

SHAFT-SPINDLE

$

$

Not available

9

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 5

0

10

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

11

Toro 113579

MOWER BLADE 17"

$30.99

$

In Stock, only 3 left!

0

Toro 112947

BLADE

Note: Not illustrated

$35.99

$

In Stock, only 4 left!

0

12

Toro 920260

WASHER-SPECIAL

$2.49

$

In Stock, Qty 9

0

13

Toro 113512

CUP-SPINDLE

$

$

Not available

14

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Toro 111170

PULLEY-IDLER

$125.99

$

Usually ships in 3-6 days

0

16

Toro 325-8

SCREW-HH

$5.49

$

In Stock, Qty 7

0

17

Toro 113633

PULLEY FLAT B
(Superseded to 113633-03)

$118.99

$

Usually ships in 3-6 days

0

18

Toro 9118

SPACER

$

$

Not available

19

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

20

Toro 3296-50

NUT-LOCK, NI

$3.49

$

Usually ships in 3-6 days

0

21

Toro 114911

SHAFT-BELT TEN PI

$120.99

$

Usually ships in 3-6 days

0

22

Toro 79-3090

WLDMT-IDLER PLATE R
(Superseded to 79-3090-01)

$

$

Not available

23

Toro 105005

RETAINING RING

$

$

Not available

24

Toro 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

25

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

26

Toro 113523

PULLEY-OUTER

$163.99

$

In Stock, only 1 left!

0

Toro 113525

PULLEY-OUTER SPIND

Note: Not illustrated

$

$

Not available

27

Toro 113625

BELT-V

$100.99

$

Usually ships in 3-6 days

0

Toro 112449

BELT-V

Note: Not illustrated

$224.99

$

In Stock, only 3 left!

0

28

Toro 114200

BELT-50" MOW DR 724Z

$96.99

$

Usually ships in 3-6 days

0

Toro 114202

BELT-60" MOW DR 724Z

Note: Not illustrated

$112.99

$

Usually ships in 3-6 days

0

29

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

30

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

31

Toro 113516

HOUSING-SPINDLE

$

$

Not available

32

Toro 79-3120

EYE-BOLT

$53.99

$

Usually ships in 3-6 days

0

33

Toro 114868

Spring-Idler
(Superseded to 114868-01)

$

$

Not available

34

Toro 3235-22

SCREW-HH, LOCK

$2.99

$

In Stock, only 2 left!

0

35

Toro 67-9410

WASHER

$3.99

$

Usually ships in 3-6 days

0

36

Toro 9202634

WASHER

$6.49

$

Usually ships in 3-6 days

0

37

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0
