78464 - Toro 48" Completion Kit for Z Master 4000 Series Mower (SN: 400000000 - 999999999) Blower and Drive Assembly Parts Diagram

48" Completion Kit for Z Master 4000 Series Mower

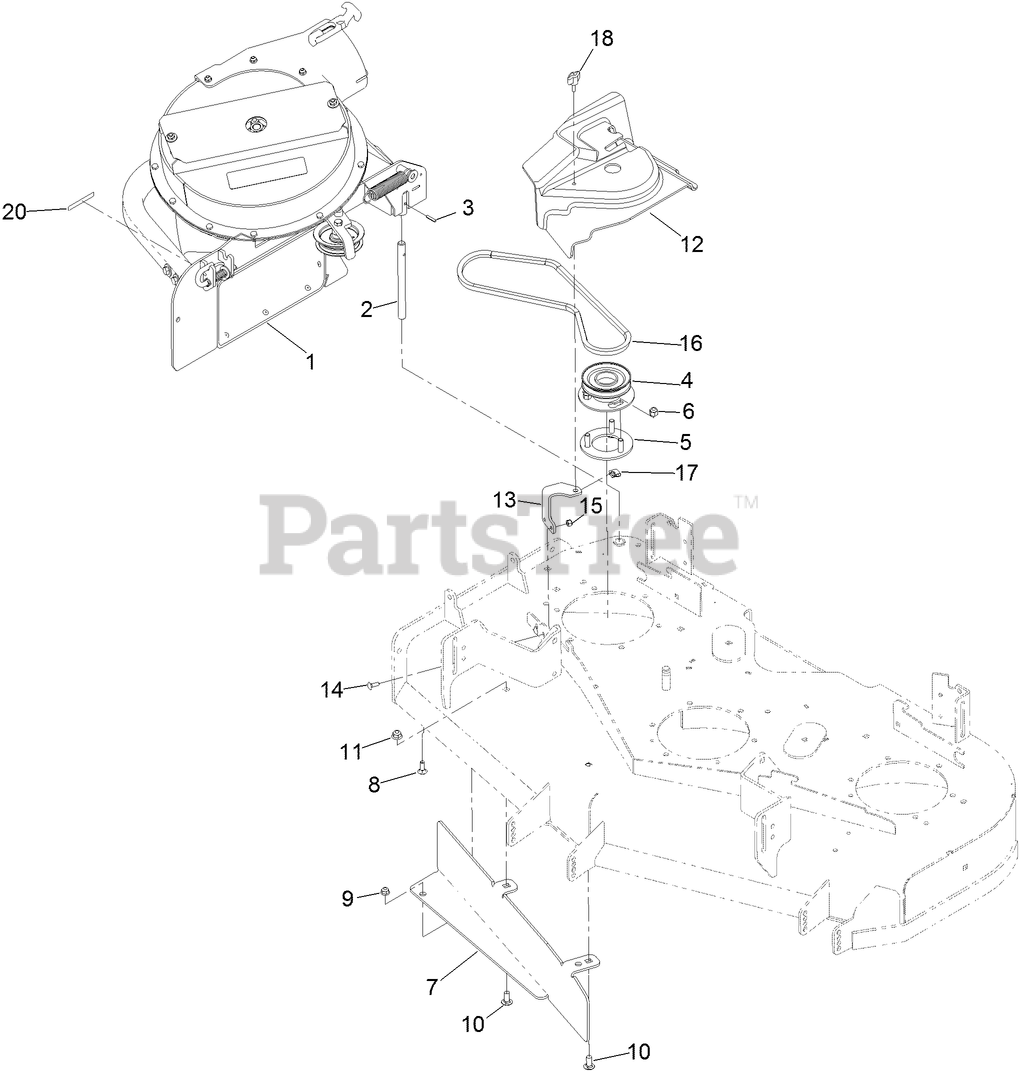

Blower and Drive Assembly Parts Diagram

  • Title

1

Toro 144-2689

ASM-BLOWERS DRIVE

$1961.99

$

Usually ships in 3-6 days

0

2

Toro 1-353050

SHAFT-CATCHER, GRASS

$18.99

$

In Stock, only 2 left!

0

3

Toro 1-806323

PIN-ROLL

$1.49

$

In Stock, Qty 5

0

4

Toro 112-8668-03

PULLEY-BLOWER

$181.99

$

Usually ships in 3-6 days

0

5

Toro 140-4906

PULLEY MOUNT ASM

$46.99

$

Usually ships in 3-6 days

0

6

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

7

Toro 135-0152-01

BAFFLE-BAGGER, 48 INCH

$104.99

$

Usually ships in 3-6 days

0

8

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

9

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 3231-27

SCREW-CARR

$4.99

$

In Stock, Qty 6

0

11

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Toro 144-6576

COVER-BELT

$168.99

$

Usually ships in 3-6 days

0

13

Toro 115-3637-01

BRACKET-COVER, BELT

$27.99

$

Usually ships in 3-6 days

0

14

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

15

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

16

Toro 135-0519

BELT-V, HI-TEMP

$100.99

$

Usually ships in 3-6 days

0

17

Toro 609900

NUT-SPEED

$9.49

$

Usually ships in 3-6 days

0

18

Toro 98-8332

KNOB

$5.49

$

In Stock, Qty 5

0

20

Toro 133-8061

DECAL-WARNING

$1.49

$

Usually ships in 3-6 days

0
