78466 - Toro 60" Completion Kit for Z Master 4000 Series Mower (SN: 411600000 - 999999999) Blower Assembly No. 126-7697 Parts Diagram

60" Completion Kit for Z Master 4000 Series Mower

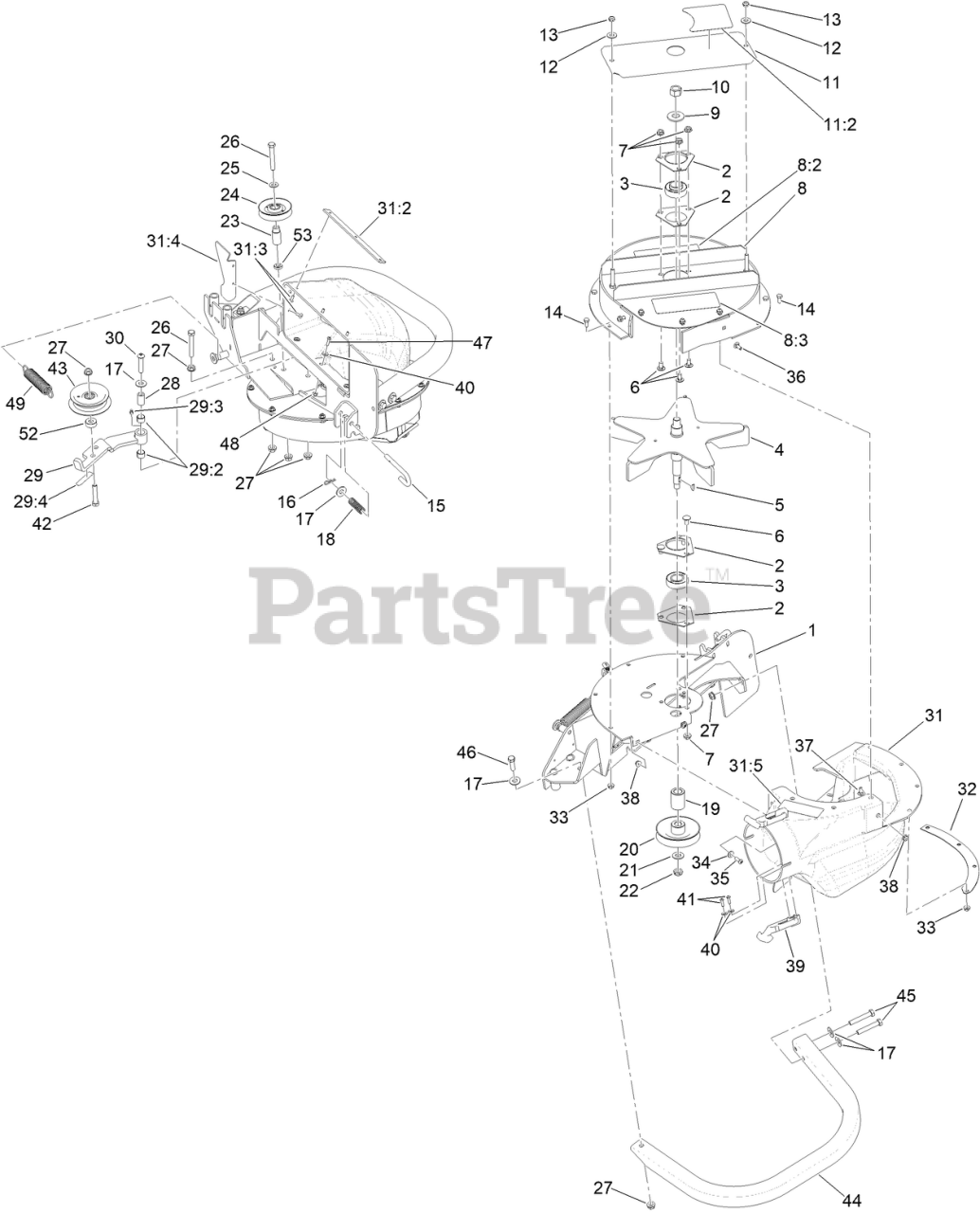

Blower Assembly No. 126-7697 Parts Diagram

  • Title

1

Toro 126-7613-03

MOUNT-BLOWER

$590.99

$

Usually ships in 3-6 days

0

2

Toro 1-513013

HOUSING-FLANGE

$5.49

$

In Stock, Qty 20+

0

3

Toro 1-653346

BEARING

$76.99

$

In Stock, Qty 20+

0

4

Toro 103-3815

IMPELLER

$328.99

$

In Stock, only 3 left!

0

5

Toro 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 20+

0

6

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 20+

0

7

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

8

Toro 126-9450

UPPER-HOUSING W/DECALS

$489.99

$

Usually ships in 3-6 days

0

8:2

Toro 126-9451

DECAL-WARNING

$9.49

$

Usually ships in 3-6 days

0

8:3

Toro 144-2629

DECAL - E-Z VAC

$10.99

$

Usually ships in 3-6 days

0

9

Toro 1-513208

WASHER-SPRING

$9.49

$

In Stock, Qty 20+

0

10

Toro 3219-6

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

11

Toro 126-9785

COVER-BEARING W/DECAL

$46.99

$

Usually ships in 3-6 days

0

11:2

Toro 126-9595

DECAL-WARNING

$9.49

$

Usually ships in 3-6 days

0

12

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

14

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 116-4356

PIN-LATCH

$18.99

$

Usually ships in 3-6 days

0

16

Toro 3290-307

See Supercession: 1-806003
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

17

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

18

Toro 121-3249

SPRING-COMPRESSION

$18.99

$

Usually ships in 3-6 days

0

19

Toro 1-653365

SPACER

$28.99

$

In Stock, only 2 left!

0

20

Toro 112-2345

PULLEY

$134.99

$

Usually ships in 3-6 days

0

21

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 3296-28

NUT-LOCK, NI

$1.99

$

In Stock, only 3 left!

0

23

Toro 1-653366

HUB

$26.99

$

In Stock, only 4 left!

0

24

Toro 1-653322

IDLER-INSIDE

$68.99

$

In Stock, only 4 left!

0

25

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

27

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

28

Toro 103-0130

BUSHING-PIVOT, IDLER

$19.99

$

In Stock, only 4 left!

0

29

Toro 117-0345

IDLER ARM ASM W/BUSHINGS

$190.99

$

Usually ships in 3-6 days

0

29:2

Toro 1-653600

BUSHING

$21.99

$

In Stock, only 2 left!

0

29:3

Toro 302-19

FITTING-GREASE

$2.99

$

In Stock, Qty 20+

0

29:4

Toro 126-4659

DECAL-WARNING

$6.49

$

Usually ships in 3-6 days

0

30

Toro 3274-107

SCREW-HSBH

$5.49

$

In Stock, Qty 13

0

31

Toro 116-6487

BLOWER CHUTE ASM

$375.99

$

Usually ships in 3-6 days

0

31:2

Toro 103-4752-03

PLATE-REINFORCEMENT

$14.99

$

Usually ships in 3-6 days

0

31:3

Toro 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

31:4

Toro 116-6486-03

PLATE-FILLER

$17.99

$

Usually ships in 3-6 days

0

31:5

Toro 126-4853

DECAL-WARNING

$7.49

$

Usually ships in 3-6 days

0

32

Toro 1-653596-03

PLATE-BACKING, BLOWER

$53.99

$

In Stock, only 1 left!

0

33

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

34

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

35

Toro 3274-69

SCREW-HSBH

$1.49

$

In Stock, Qty 8

0

36

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

37

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

38

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

39

Toro 103-4080

LATCH-RUBBER

$36.99

$

In Stock, Qty 10

0

40

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

41

Toro 3274-39

SCREW-HSBH

$6.49

$

In Stock, only 2 left!

0

42

Toro 323-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

43

Toro 103-1103

IDLER-FLAT

$72.99

$

In Stock, only 3 left!

0

44

Toro 109-1122-01

BUMPER

$126.99

$

In Stock, only 1 left!

0

45

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

46

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

47

Toro 104-2408

SCREW-HSBH

$2.99

$

Usually ships in 3-6 days

0

48

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

49

Toro 1-603693

SPRING-EXTENSION

$15.99

$

In Stock, only 3 left!

0

52

Toro 135-0456

SPACER

$16.99

$

Usually ships in 3-6 days

0

53

Toro 135-0457

SPACER

$15.99

$

Usually ships in 3-6 days

0
