78477 - Toro 48" Recycler Mower Deck (SN: 089000001 - 089000522) (1998)

48" Recycler Mower

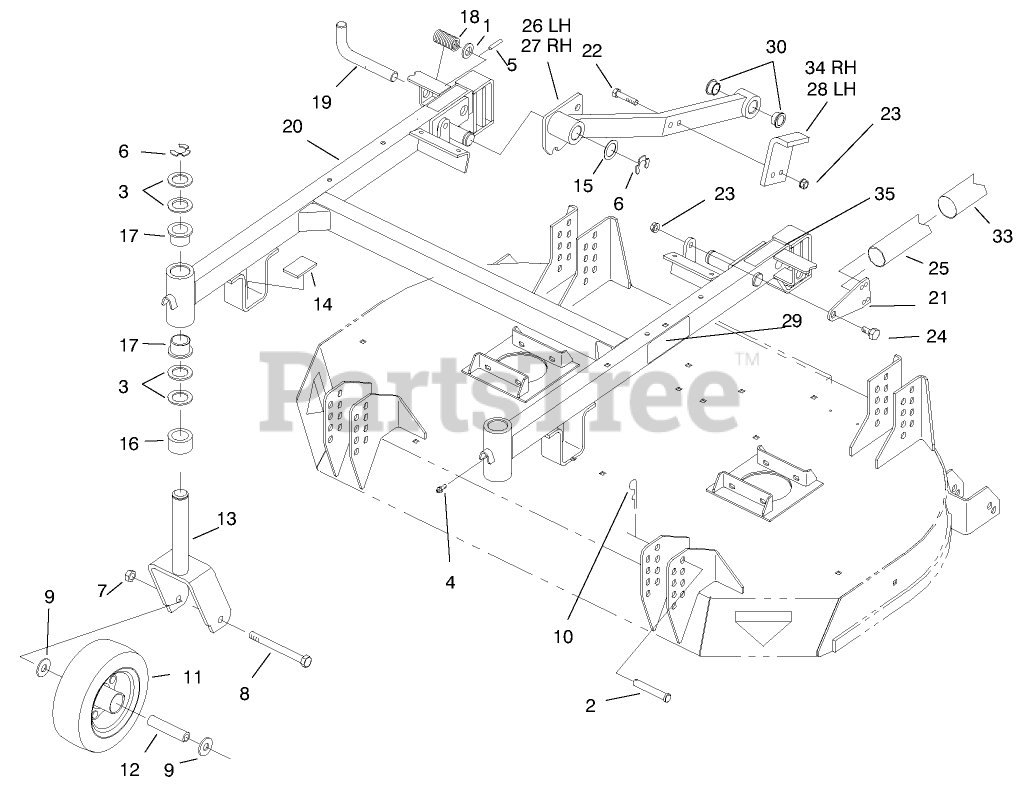

78477 - Toro 48" Recycler Mower Deck (SN: 089000001 - 089000522) (1998) > Parts Diagrams (5) > CARRIER FRAME

  • Title
257-8

1

WASHER-THRUST

Part# 257-8

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.25

283-55

2

PIN-CLEVIS

Part# 283-55

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $8.15

3-6781

3

WASHER-THRUST

Part# 3-6781

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.55

302-5

4

FITTING-GREASE

Part# 302-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.36

32121-79

5

PIN-ROLL

Part# 32121-79

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.23

32151-91

6

RING-RETAINING

Part# 32151-91

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.67

32153-5

7

NUT-HEX

Part# 32153-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.44

325-19

8

SCREW-HH

Part# 325-19

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $6.37

3256-6

9

WASHER-FLAT

Part# 3256-6

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.48

3290-355

10

PIN-HAIR

Part# 3290-355

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.57

68-8970

11

TIRE AND BEARING ASM

Part# 68-8970

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $88.31

68-8980

12

SPANNER-TIRE

Part# 68-8980

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $7.75

74-0251

13

Fork

Part# 74-0251 (Superseded to 74-0251-01)

OEM Warranty Repair Part for Toro

Not available

95-4303

14

CUSHION - RUBBER

Part# 95-4303

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.33

9202514

15

Washer

Part# 9202514 (Superseded to 920251)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.77

93-1167

16

SPACER-CASTOR

Part# 93-1167

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $23.38

94-1291

17

BUSHING

Part# 94-1291

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $8.93

98-1339

18

SPRING-COMPRESSION

Part# 98-1339

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.23

98-1337

19

PIN - PIVOT

Part# 98-1337

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $27.48

95-4304

20

Frame-Carrier

Part# 95-4304 (Superseded to 98-8074)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1837.38

95-4344

21

Plate-Spring

Part# 95-4344 (Superseded to 95-4344-01)

OEM Warranty Repair Part for Toro

Not available

323-9

22

SCREW-HH

Part# 323-9

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.88

3296-39

23

NUT-LOCK, NI

Part# 3296-39

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.00

46-3380

24

BOLT-SHOULDER

Part# 46-3380

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $15.13

94-4664

25

SPRING-EXTENSION

Part# 94-4664

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $88.34

94-4730-01

26

Push Arm LH

Part# 94-4730-01 (Superseded to 105-1645)

OEM Warranty Repair Part for Toro

Not available

94-4731-01

27

Push Arm RH

Part# 94-4731-01 (Superseded to 105-1646)

OEM Warranty Repair Part for Toro

Not available

94-9511

28

Stop-Pusharm

Part# 94-9511 (Superseded to 94-9511-01)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $31.75

98-0816

29

DECAL - HOC

Part# 98-0816

OEM Warranty Repair Part for Toro

Not available

27-9080

30

BEARING-FLANGE

Part# 27-9080

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.23

94-9550

33

COVER-SPRING

Part# 94-9550

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $51.67

94-9583

34

STOP - PUSH ARM,RH R

Part# 94-9583

OEM Warranty Repair Part for Toro

Not available

55-4300

35

DECAL-WARNING

Part# 55-4300

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.87
