78477 - Toro 48" Recycler Mower Deck (SN: 089000001 - 089000522) (1998)

48" Recycler Mower

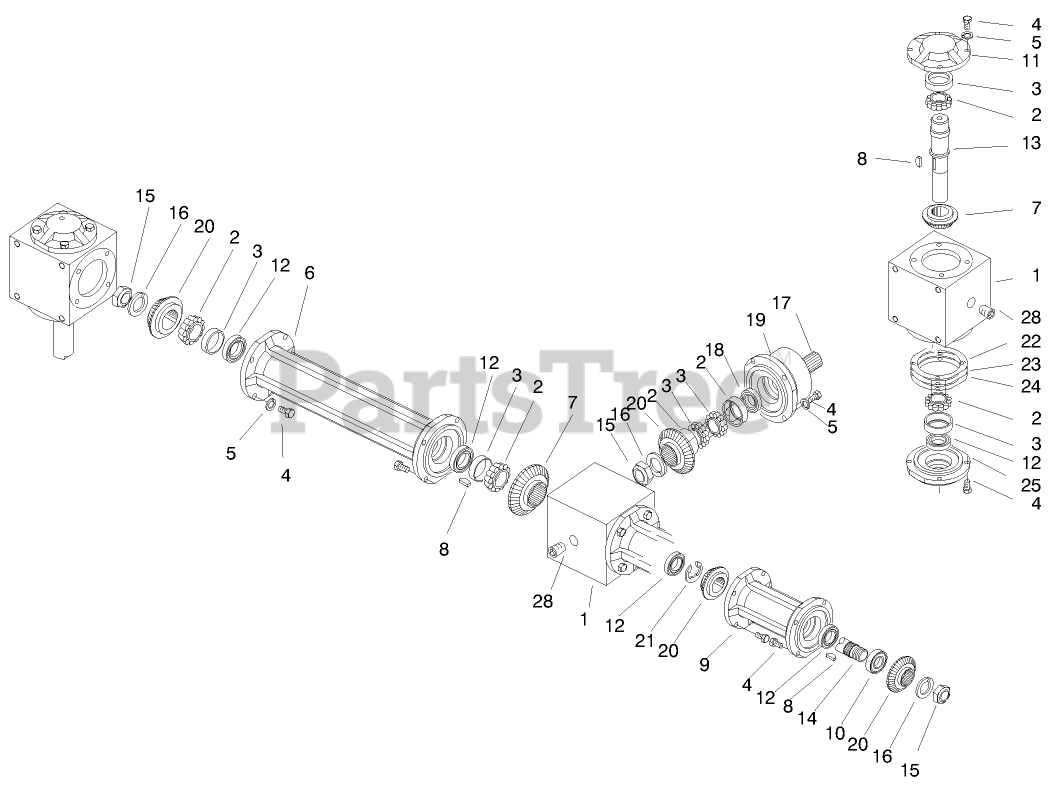

78477 - Toro 48" Recycler Mower Deck (SN: 089000001 - 089000522) (1998) > Parts Diagrams (5) > GEAR BOX

  • Title
98-3321

1

HOUSING

Part# 98-3321

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $473.09

98-1343

2

BEARING - CONE

Part# 98-1343

OEM Warranty Repair Part for Toro

Not available

62-3340

3

Cup

Part# 62-3340 (Superseded to 254-72)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $7.08

98-3324

4

SCREW - HH

Part# 98-3324

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.73

98-3325

5

WASHER - LOCK

Part# 98-3325

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.83

98-3326

6

Connector-Hub

Part# 98-3326

OEM Warranty Repair Part for Toro

Not available

98-3327

7

Gear-RH

Part# 98-3327

OEM Warranty Repair Part for Toro

Not available

98-3328

8

KEY

Part# 98-3328

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $10.83

98-3329

9

Connector-Hub

Part# 98-3329

OEM Warranty Repair Part for Toro

Not available

98-3330

10

BEARING - BALL

Part# 98-3330

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $157.08

98-3331

11

CAP - BLANK

Part# 98-3331

OEM Warranty Repair Part for Toro

Not available

62-3400

12

Seal

Part# 62-3400 (Superseded to 253-118)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $13.44

98-3333

13

Shaft-Thru

Part# 98-3333

OEM Warranty Repair Part for Toro

Not available

98-3334

14

SHAFT

Part# 98-3334

OEM Warranty Repair Part for Toro

Not available

98-3335

15

NUT - LOCK

Part# 98-3335

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $53.33

98-3336

16

WASHER - LOCK

Part# 98-3336

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $15.10

98-3337

17

SHAFT - HUB

Part# 98-3337

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $290.90

98-3338

18

SEAL

Part# 98-3338

OEM Warranty Repair Part for Toro

Not available

98-3339

19

HUB

Part# 98-3339

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $264.25

98-3340

20

PINION - LH

Part# 98-3340

OEM Warranty Repair Part for Toro

Not available

98-3341

21

RING - RETAINING

Part# 98-3341

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $10.83

98-3342

22

Gasket-.015

Part# 98-3342

OEM Warranty Repair Part for Toro

Not available

98-3343

23

Gasket-.005

Part# 98-3343

OEM Warranty Repair Part for Toro

Not available

98-3344

24

GASKET - .003

Part# 98-3344

OEM Warranty Repair Part for Toro

Not available

98-3345

25

CAP - THRU

Part# 98-3345

OEM Warranty Repair Part for Toro

Not available

98-3346

26

I.d. Tag

Part# 98-3346

OEM Warranty Repair Part for Toro

Currently unavailable

98-3347

27

I.d. Tag Cover

Part# 98-3347

OEM Warranty Repair Part for Toro

Currently unavailable

62-3490

28

PLUG (OBS, C/R TO 281-10)

Part# 62-3490 (Superseded to 281-10)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $10.51
