78477 - Toro 48" Recycler Mower Deck (SN: 089000001 - 089000522) (1998)

48" Recycler Mower

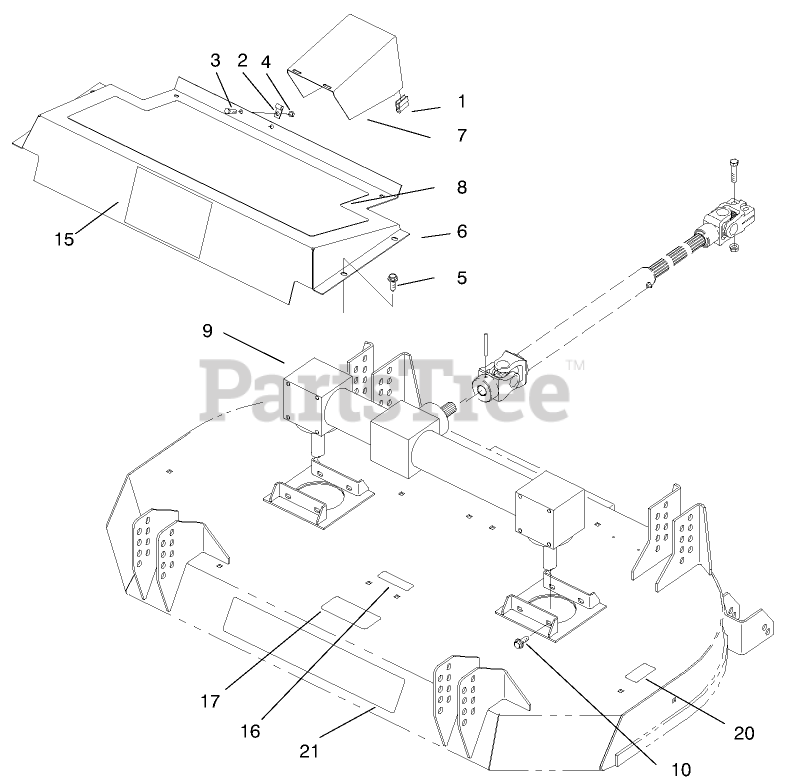

78477 - Toro 48" Recycler Mower Deck (SN: 089000001 - 089000522) (1998) > Parts Diagrams (5) > GEAR BOX AND COVERS

  • Title
98-0815

1

STRIP - SEAL

Part# 98-0815

OEM Warranty Repair Part for Toro

Not available

2412-72

2

CLIP-CLOSED, INSULATED

Part# 2412-72

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.97

321-2

3

SCREW-HH

Part# 321-2

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.93

32128-14

4

NUT-HF

Part# 32128-14

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.35

32144-14

5

SCREW-HWHTF

Part# 32144-14

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.57

95-4322

6

Footrest

Part# 95-4322 (Superseded to 98-8073)

OEM Warranty Repair Part for Toro

Not available

95-4340

7

COVER - DRIVESHAFT R

Part# 95-4340

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $35.06

95-4342

8

ABRASIVE - FOOTREST

Part# 95-4342

OEM Warranty Repair Part for Toro

Not available

93-4448

9

Gearbox ASM

Part# 93-4448 (Superseded to 105-6172)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2430.98

3234-5

10

SCREW-HHF

Part# 3234-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.81

62-5550

15

DECAL

Part# 62-5550

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $7.01

70-2560

16

DECAL-OIL

Part# 70-2560 (Superseded to 93-6697)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $10.58

68-8340

17

DECAL-TORQUE

Part# 68-8340

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $12.66

94-6407

21

DECAL - GUARDIAN 48"

Part# 94-6407

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $52.93

67-5360

22

DECAL-DANGER

Part# 67-5360

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.05
