78477 - Toro 48" Recycler Mower Deck (SN: 089001696 - 089999999) (1998) GEAR BOX AND COVERS Parts Diagram

48" Recycler Mower Deck

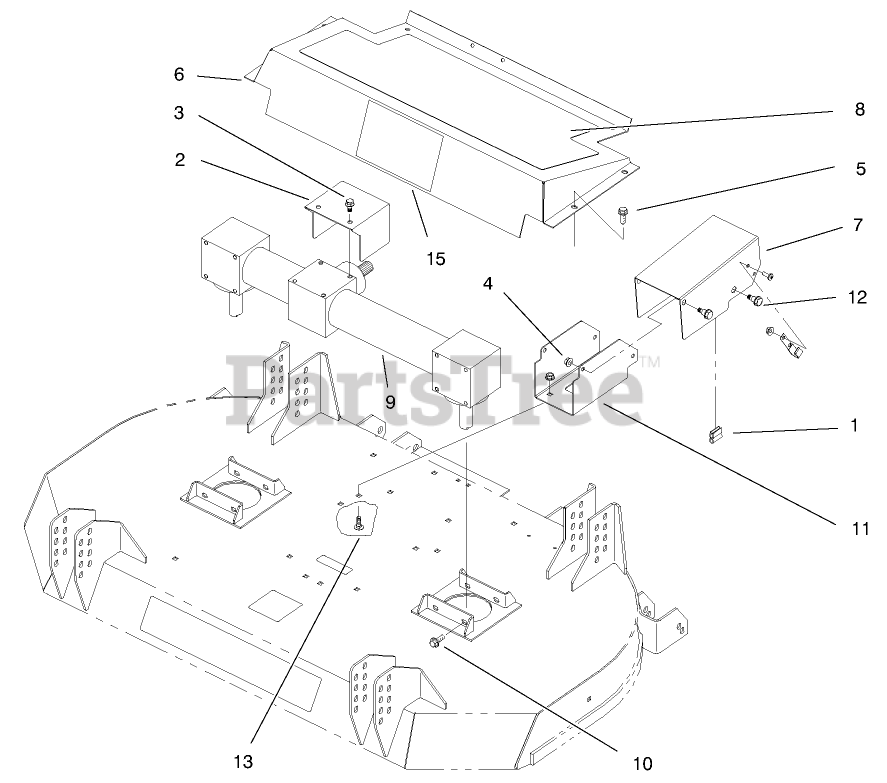

GEAR BOX AND COVERS Parts Diagram

  • Title

1

Toro 98-0815

STRIP - SEAL

$

$

Not available

2

Toro 98-7314

Cover-Gearbox
(Superseded to 98-7314-03)

$

$

Not available

3

Toro 3234-28

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

4

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

5

Toro 32144-14

SCREW-HWHTF

$4.99

$

Usually ships in 3-6 days

0

6

Toro 95-4322

Footrest
(Superseded to 98-8073)

$

$

Not available

7

Toro 99-0253

Cover-Driveshaft
(Superseded to 99-0253-01)

$89.99

$

Usually ships in 3-6 days

0

8

Toro 95-4342

ABRASIVE - FOOTREST

$

$

Not available

9

Toro 93-4448

Gearbox ASM
(Superseded to 105-6172)

$4093.99

$

Usually ships in 3-6 days

0

10

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

11

Toro 99-0254

Support-Cover
(Superseded to 99-0254-01)

$

$

Not available

12

Toro 92-6986

BOLT-SHOULDER

$13.99

$

Usually ships in 3-6 days

0

13

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

15

Toro 62-5550

DECAL

$11.99

$

In Stock, only 4 left!

0
