78490 - Toro Bagger for 100 Series Z Master (SN: 220000501 - 220999999) (2002) HOPPER ASSEMBLY Parts Diagram

Bagger for 100 Series Z Master

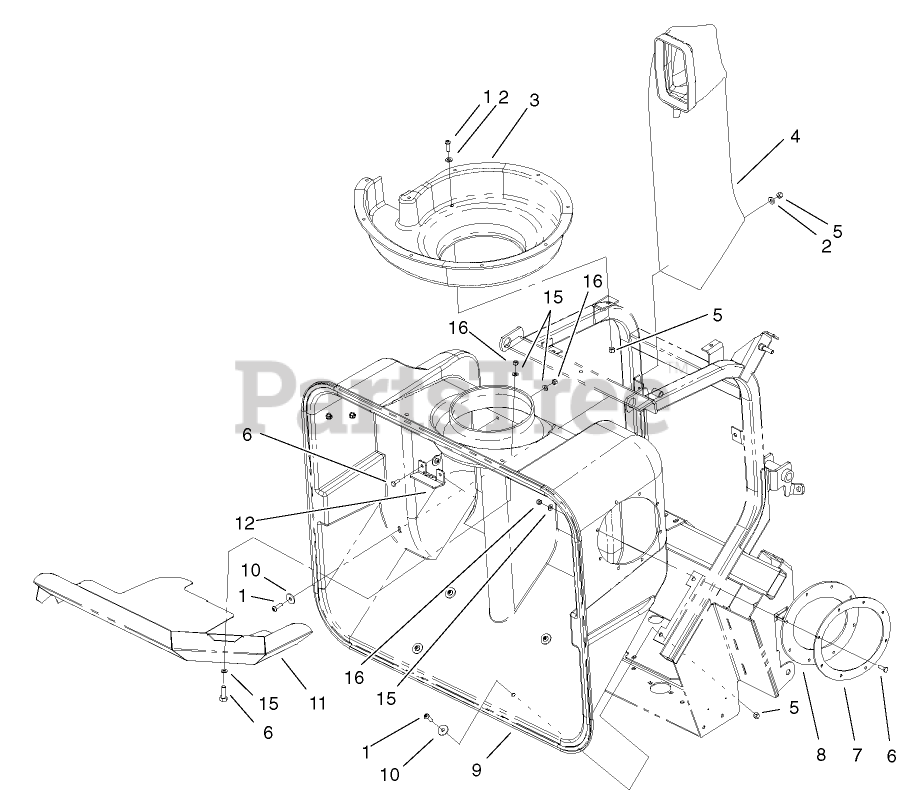

HOPPER ASSEMBLY Parts Diagram

  • Title

1

Toro 3274-104

SCREW-HSBH

$1.99

$

In Stock, Qty 5

0

2

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

3

Toro 105-8164

SCROLL-BOTTOM

$240.99

$

Usually ships in 3-6 days

0

4

Toro 105-5530

TUBE-EXHAUST

$369.99

$

Usually ships in 3-6 days

0

5

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

7

Toro 105-9681-03

PLATE-SEAL

$54.99

$

Usually ships in 3-6 days

0

8

Toro 105-9733

SEAL-RUBBER

$33.99

$

Usually ships in 3-6 days

0

9

Toro 105-5507

HOPPER-FRONT

$583.99

$

Usually ships in 3-6 days

0

10

Toro 3256-82

WASHER-FLAT

$0.99

$

In Stock, Qty 7

0

11

Toro 106-3307-03

SCREEN ASM

$275.99

$

Usually ships in 3-6 days

0

12

Toro 105-9738-03

BRACKET-SCREEN, LOWER

$59.99

$

Usually ships in 3-6 days

0

15

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0
