78491 - Toro Bagger for 200 Series Z Master (SN: 220000001 - 220999999) (2002) DOOR ASSEMBLY Parts Diagram

Bagger for 200 Series Z Master

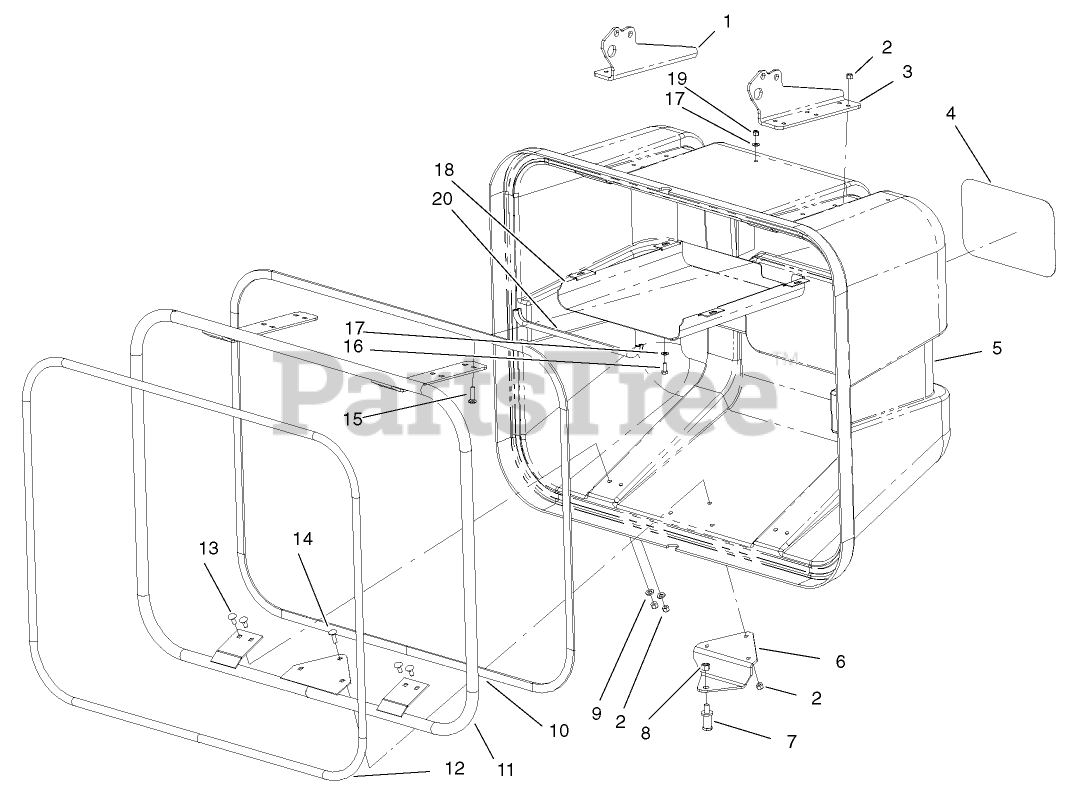

DOOR ASSEMBLY Parts Diagram

  • Title

1

Toro 105-8204-03

RH HINGE ASM

$

$

Not available

2

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

3

Toro 105-8205-03

LH HINGE ASM

$144.99

$

Usually ships in 3-6 days

0

4

Toro 67-7310

DECAL

$64.99

$

Usually ships in 3-6 days

0

5

Toro 105-5504

DOOR-200 SERIES

$

$

Not available

6

Toro 105-8238-03

BRACKET-LATCH, DOOR

$87.99

$

Usually ships in 3-6 days

0

7

Toro 105-9664

BOLT-STRIKER

$53.99

$

Usually ships in 3-6 days

0

8

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

9

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

10

Toro 105-8198

SEAL-HOPPER

$73.99

$

Usually ships in 3-6 days

0

11

Toro 105-5555-03

LARGE DOOR FRAME ASM

$

$

Not available

12

Toro 105-8199

SEAL-HOPPER, ROUND

$151.99

$

Usually ships in 3-6 days

0

13

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

14

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 7

0

15

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

16

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 106-3309-03

REAR SCREEN ASM

$222.99

$

Usually ships in 3-6 days

0

19

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

20

Toro 106-3319

SEAL-TRIM

$30.99

$

Usually ships in 3-6 days

0
