78495 - Toro Boot and Tube Kit for 200 Series Z Master 62" Mowers

Boot and Tube Kit for 200 Series Z Master 62" Mowers

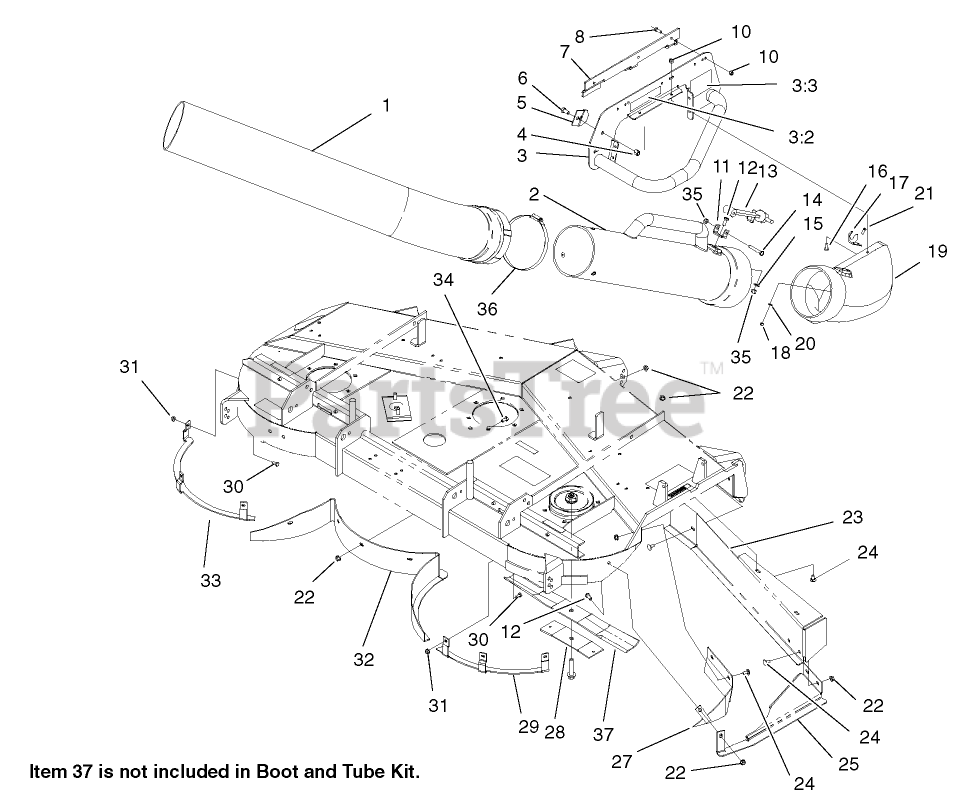

78495 - Toro Boot and Tube Kit for 200 Series Z Master 62" Mowers > Parts Diagrams (1) > BOOT ASSEMBLY

  • Title
105-8159

1

TUBE-ELBOW

Part# 105-8159

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $253.38

105-8160

2

TUBE-STRAIGHT

Part# 105-8160

OEM Warranty Repair Part for Toro

Not available

106-3340

3

Plate-Mounting

Part# 106-3340

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $154.81

104-8569

3:2

DECAL-WARNING

Part# 104-8569

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $10.91

106-3339

3:3

DECAL-WARNING

Part# 106-3339

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.20

3296-39

4

NUT-LOCK, NI

Part# 3296-39

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.00

104-8575

5

Bracket-Clamp

Part# 104-8575

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $20.78

323-4

6

SCREW-HH

Part# 323-4

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.86

104-8573-03

7

BRACKET-MOUNTING

Part# 104-8573-03

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $60.80

321-4

8

SCREW-HH

Part# 321-4

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.77

3296-42

10

NUT-LOCK, NI

Part# 3296-42

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.34

105-9707

11

BRACKET-ANCHOR

Part# 105-9707

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.96

322-3

12

SCREW-HH

Part# 322-3

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.66

105-8155

13

HOLDDOWN-HOOD

Part# 105-8155

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $51.25

322-10

14

SCREW-HH

Part# 322-10

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.68

3256-23

15

WASHER-PLAIN

Part# 3256-23

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.62

9114604

16

SCREW-HEAD, TRUSS

Part# 9114604

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.54

105-9709

17

BRACKET-HOOD

Part# 105-9709

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $20.20

3296-2

18

NUT-LOCK, NI

Part# 3296-2

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.22

105-5531

19

BOOT

Part# 105-5531

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $203.33

3256-14

20

WASHER-FLAT

Part# 3256-14

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.11

3290-500

21

SCREW-PPH

Part# 3290-500

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.75

32128-25

22

NUT-HF

Part# 32128-25

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.23

105-5535-01

23

BAFFLE-FRONT

Part# 105-5535-01

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $139.55

3230-18

24

SCREW-CARR

Part# 3230-18

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.93

105-9731-01

25

BAFFLE-CROSS

Part# 105-9731-01

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $143.33

105-8234-01

27

REAR BAFFLE ASM

Part# 105-8234-01

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $83.13

105-6198-03

28

STIFFENER-BLADE

Part# 105-6198-03

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $52.10

105-5884-01

29

PLATE-SHELF, RIGHT REAR

Part# 105-5884-01

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $115.26

321-3

30

SCREW-HH

Part# 321-3

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.94

32128-32

31

NUT-HHF

Part# 32128-32

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.11

105-8230-01

32

BOTTOM BAFFLE ASM

Part# 105-8230-01

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $140.28

105-5883-01

33

PLATE-SHELF, LEFT REAR

Part# 105-5883-01

OEM Warranty Repair Part for Toro

Not available

322-2

34

SCREW-HH

Part# 322-2

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.80

3296-29

35

NUT-LOCK, NI

Part# 3296-29

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.78

106-3318

36

CLAMP-HOSE

Part# 106-3318

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $42.53

77-6710-03

37

BLADE (21.5IN)

Part# 77-6710-03

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $21.75
