78496 - Toro 44" Finishing Kit for Z100 Twin Soft Bagger 44IN FINISHING ASSEMBLY Parts Diagram

44" Finishing Kit for Z100 Twin Soft Bagger

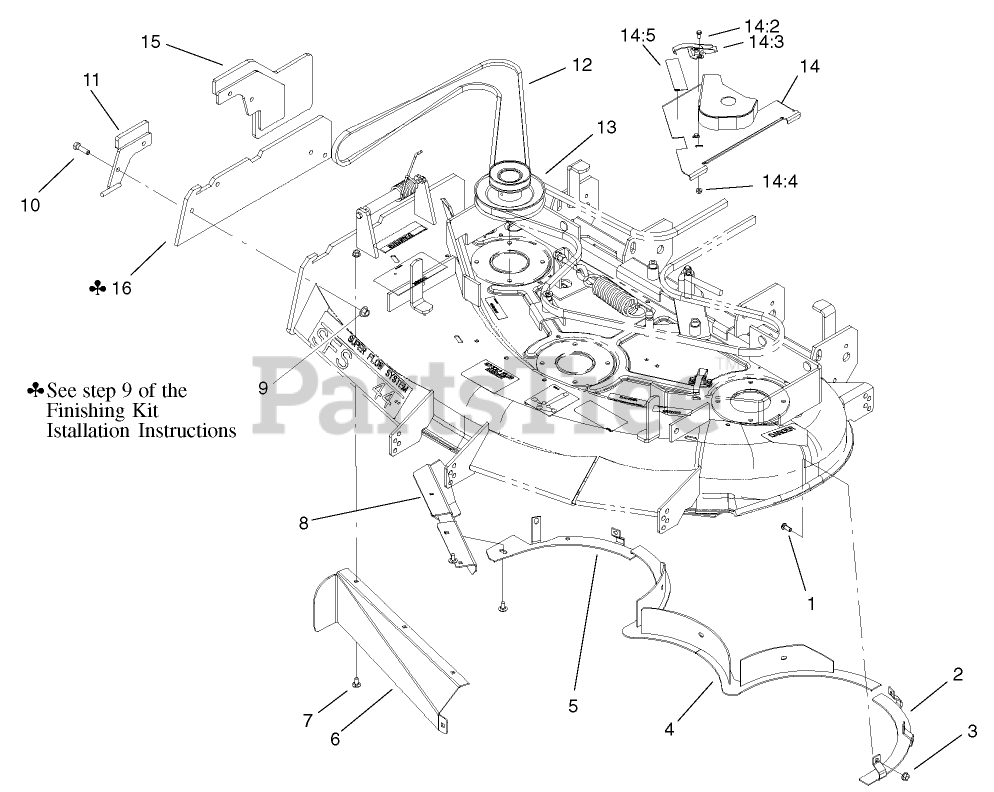

44IN FINISHING ASSEMBLY Parts Diagram

  • Title

1

Toro 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 6

0

2

Toro 106-3021-01

Baffle-Rear, LH

$103.99

$

Usually ships in 3-6 days

0

3

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 19

0

4

Toro 106-3015-01

Center Baffle ASM

$171.99

$

Usually ships in 3-6 days

0

5

Toro 106-3022-01

Baffle-Rear, RH

$103.99

$

Usually ships in 3-6 days

0

6

Toro 106-3023-01

Baffle-Discharge, Front

$119.99

$

Usually ships in 3-6 days

0

7

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 13

0

8

Toro 106-3020-01

Baffle-Discharge, Rear

$

$

Not available

9

Toro 32128-43

NUT-FLANGE

$1.49

$

In Stock, Qty 7

0

10

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

11

Toro 106-2098-03

Front Mounting Plate ASM

$

$

Not available

12

Toro 106-3038

Belt-V

$72.99

$

Usually ships in 3-6 days

0

13

Toro 105-5897

Double Pulley ASM

$548.99

$

Usually ships in 3-6 days

0

14

Toro 106-3078

Cover ASM

$

$

Not available

14:2

Toro 3290-321

SCREW-HWH

$4.49

$

In Stock, only 2 left!

0

14:3

Toro 249-21

CLAMP-SLOTTED

$19.99

$

In Stock, only 2 left!

0

14:4

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 20+

0

14:5

Toro 67-5360

DECAL-DANGER

$13.99

$

In Stock, only 1 left!

0

15

Toro 106-2099-03

Rear Mounting Plate ASM

$

$

Not available

16

Toro 106-2095-03

TEMPLATE

$

$

Not available

99

Toro 55-4940-03

BLADE-LIFT, HIGH

Note: Not illustrated

$34.99

$

In Stock, only 1 left!

0
