78498 - Toro 52" Twin Soft Bagger, 200 Series Z Master (SN: 230000001 - 230999999) (2003) BAG SUPPORT AND HOOD ASSEMBLY Parts Diagram

52" Twin Soft Bagger, 200 Series Z Master

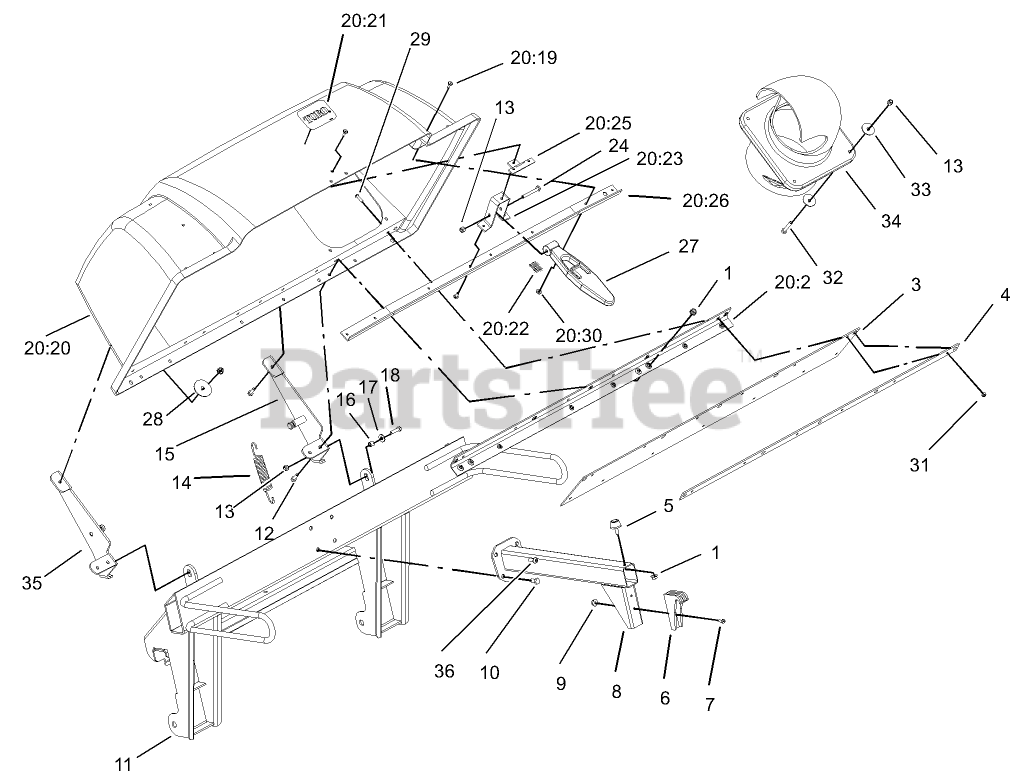

BAG SUPPORT AND HOOD ASSEMBLY Parts Diagram

  • Title

1

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 11

0

3

Toro 103-1346

SEAL-HOOD

$95.99

$

Usually ships in 3-6 days

0

4

Toro 1-653528-03

PLATE-BACKING

$75.99

$

Usually ships in 3-6 days

0

5

Toro 1-523420

BUMPER

$15.99

$

Usually ships in 3-6 days

0

6

Toro 1-653404

Catch

$41.99

$

In Stock, Qty 6

0

7

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

8

Toro 1-652414-03

BAG SUPPORT ASM
(Superseded to 103-5124-03)

$175.99

$

Usually ships in 3-6 days

0

9

Toro 3290-148

NUT-HF

$0.99

$

In Stock, Qty 5

0

10

Toro 322-2

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

11

Toro 103-1310-03

Bagger-Upright

$

$

Not available

12

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

14

Toro 106-3424

Spring-Extension

$

$

Not available

15

Toro 103-0825-03

HINGE-RH

$112.99

$

Usually ships in 3-6 days

0

16

Toro 1-633545

SPACER

$2.99

$

In Stock, Qty 20+

0

17

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 17

0

18

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

20:2

Toro 1-653397-03

STIFFENER-BAGGER, TOP

$87.99

$

Usually ships in 3-6 days

0

20:19

Toro 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

20:20

Toro 105-9100

Top-Bagger

$333.99

$

Usually ships in 3-6 days

0

20:21

Toro 99-2385

DECAL

$5.49

$

In Stock, Qty 11

0

20:22

Toro 114967

SCREEN-BAGGER

$42.99

$

In Stock, only 3 left!

0

20:23

Toro 1-653519

ANCHOR-LATCH

$96.99

$

Usually ships in 3-6 days

0

20:25

Toro 1-653535

REINFORCEMENT-LATCH

$53.99

$

Usually ships in 3-6 days

0

20:26

Toro 1-653400-03

SUPPORT-SCREEN

$93.99

$

Usually ships in 3-6 days

0

20:30

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 105-6188

Hood ASM
(Superseded to 112-2316)

$804.99

$

Usually ships in 3-6 days

0

24

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

27

Toro 1-653403

LATCH

$87.99

$

In Stock, Qty 6

0

28

Toro 1-653036

WASHER

$5.49

$

In Stock, only 2 left!

0

29

Toro 1-803075

SCREW-HEAD, TRUSS

$1.49

$

In Stock, Qty 5

0

31

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

32

Toro 321-9

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

33

Toro 3256-58

WASHER-FLAT
(Superseded to 3256-55)

$5.49

$

In Stock, only 1 left!

0

34

Toro 105-5873

Tube-Bagger, Upper

$

$

Not available

35

Toro 103-0826-03

HINGE-LH

$112.99

$

Usually ships in 3-6 days

0

36

Toro 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 8

0
