78498 - Toro 52" Twin Soft Bagger, 200 Series Z Master (SN: 250000001 - 250000151) (2005)

52" Twin Soft Bagger, 200 Series Z Master

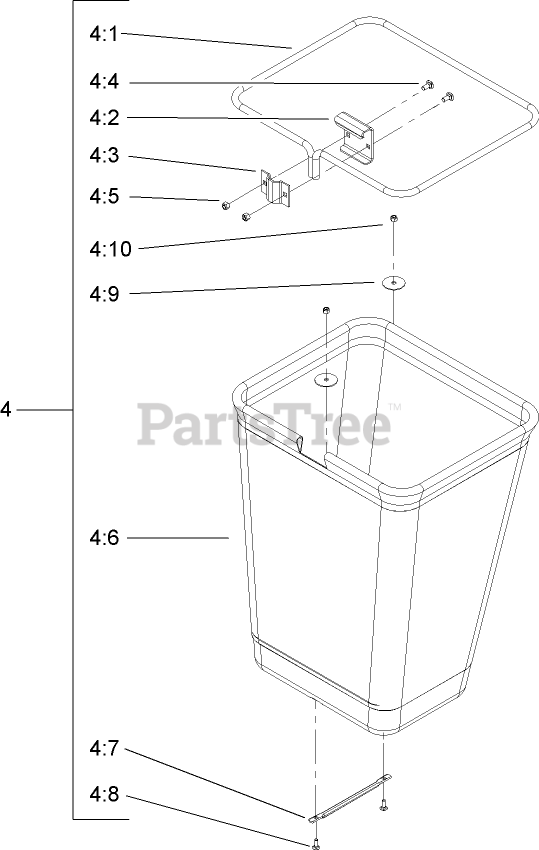

78498 - Toro 52" Twin Soft Bagger, 200 Series Z Master (SN: 250000001 - 250000151) (2005) > Parts Diagrams (6) > BAG ASSEMBLY

  • Title
103-0435

4

Bag And Frame ASM

Part# 103-0435 (Superseded to 116-0754)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $123.38

1-653529-03

4:1

FRAME-BAG

Part# 1-653529-03

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $78.18

114973-03

4:2

HANGER-BAG

Part# 114973-03

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $16.83

114974-03

4:3

CLAMP

Part# 114974-03

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $9.59

3230-1

4:4

BOLT-CARR

Part# 3230-1

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.22

3296-29

4:5

NUT-LOCK, NI

Part# 3296-29

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.78

103-0431

4:6

Bag ASM

Part# 103-0431 (Superseded to 116-0757)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $66.56

1-653566

4:7

HANDLE-BAG

Part# 1-653566

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $7.45

3229-1

4:8

BOLT-CARR

Part# 3229-1

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.56

1-653036

4:9

WASHER

Part# 1-653036

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.57

3296-42

4:10

NUT-LOCK, NI

Part# 3296-42

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.34
