78498 - Toro 52" Twin Soft Bagger, 200 Series Z Master (SN: 250000001 - 250000151) (2005)

52" Twin Soft Bagger, 200 Series Z Master

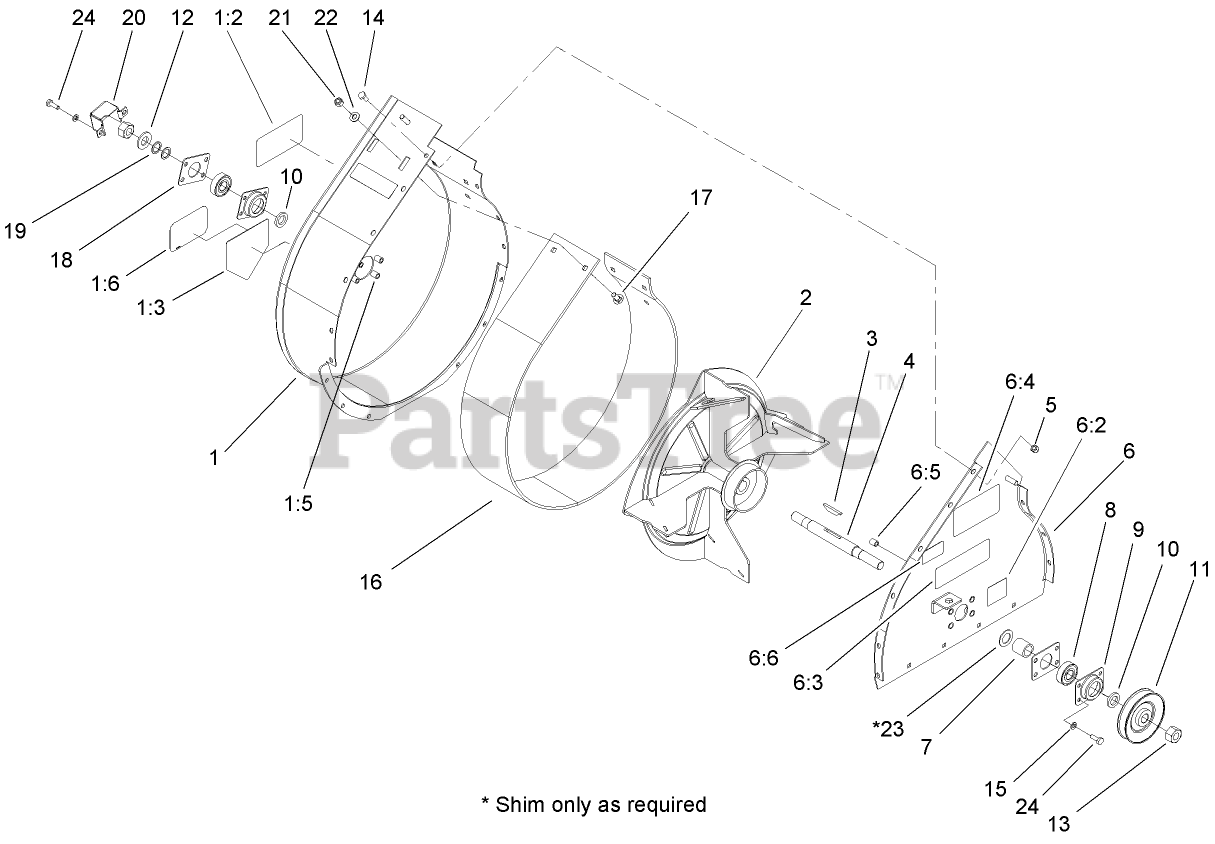

78498 - Toro 52" Twin Soft Bagger, 200 Series Z Master (SN: 250000001 - 250000151) (2005) > Parts Diagrams (6) > BLOWER HOUSING ASSEMBLY

  • Title
106-8016

1

BLOWER HOUSING ASM

Part# 106-8016

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $510.73

79-0360

1:2

DECAL-DANGER

Part# 79-0360

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $12.33

93-1122

1:3

DECAL-DANGER

Part# 93-1122

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $6.70

32148-6

1:5

INSERT-NUT

Part# 32148-6

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.87

99-2385

1:6

DECAL

Part# 99-2385

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.91

106-8022-03

2

IMPELLER ASM

Part# 106-8022-03

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $504.04

3257-40

3

KEY

Part# 3257-40

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $6.12

105-5893

4

Shaft-Blower

Part# 105-5893

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $90.70

3296-42

5

NUT-LOCK, NI

Part# 3296-42

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.34

106-8019

6

COVER PLATE ASM

Part# 106-8019

OEM Warranty Repair Part for Toro

Not available

88-8950

6:2

DECAL-WARNING

Part# 88-8950

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $10.51

79-0350

6:3

DECAL-DANGER

Part# 79-0350

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $18.88

79-0360

6:4

DECAL-DANGER

Part# 79-0360

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $12.33

32148-6

6:5

INSERT-NUT

Part# 32148-6

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.87

98-4387

6:6

DECAL-PROTECTION, EAR

Part# 98-4387

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.04

106-2097

7

Spacer

Part# 106-2097

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $21.54

38-7820

8

BEARING-BALL

Part# 38-7820

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $12.29

37-6730

9

CUP-BEARING

Part# 37-6730

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $12.95

63-9710

10

SPACER-BEARING

Part# 63-9710

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.70

105-5992

11

Pulley ASM

Part# 105-5992

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $98.53

9202604

12

WASHER-FLAT

Part# 9202604

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.81

3217-11

13

NUT-HEX

Part# 3217-11

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.48

321-3

14

SCREW-HH

Part# 321-3

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.94

3253-3

15

WASHER-LOCK

Part# 3253-3

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.10

106-3425

16

STRIP-WEAR

Part# 106-3425

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $202.65

3230-1

17

BOLT-CARR

Part# 3230-1

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.22

63-9700-03

18

PLATE-COVER

Part# 63-9700-03

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $14.57

9202154

19

WASHER-FLAT

Part# 9202154

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.00

106-3076-03

20

Cover-Shaft

Part# 106-3076-03

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $27.60

3296-29

21

NUT-LOCK, NI

Part# 3296-29

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.78

3256-23

22

WASHER-PLAIN

Part# 3256-23

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.62

1535

23

WASHER-THRUST

Part# 1535

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $6.98

321-4

24

SCREW-HH

Part# 321-4

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.77
