785016 - Gravely Plow, Cultivator for 2-Wheel Tractor PLOW/CULTIVATOR DRIVE Parts Diagram

Plow, Cultivator for 2-Wheel Tractor

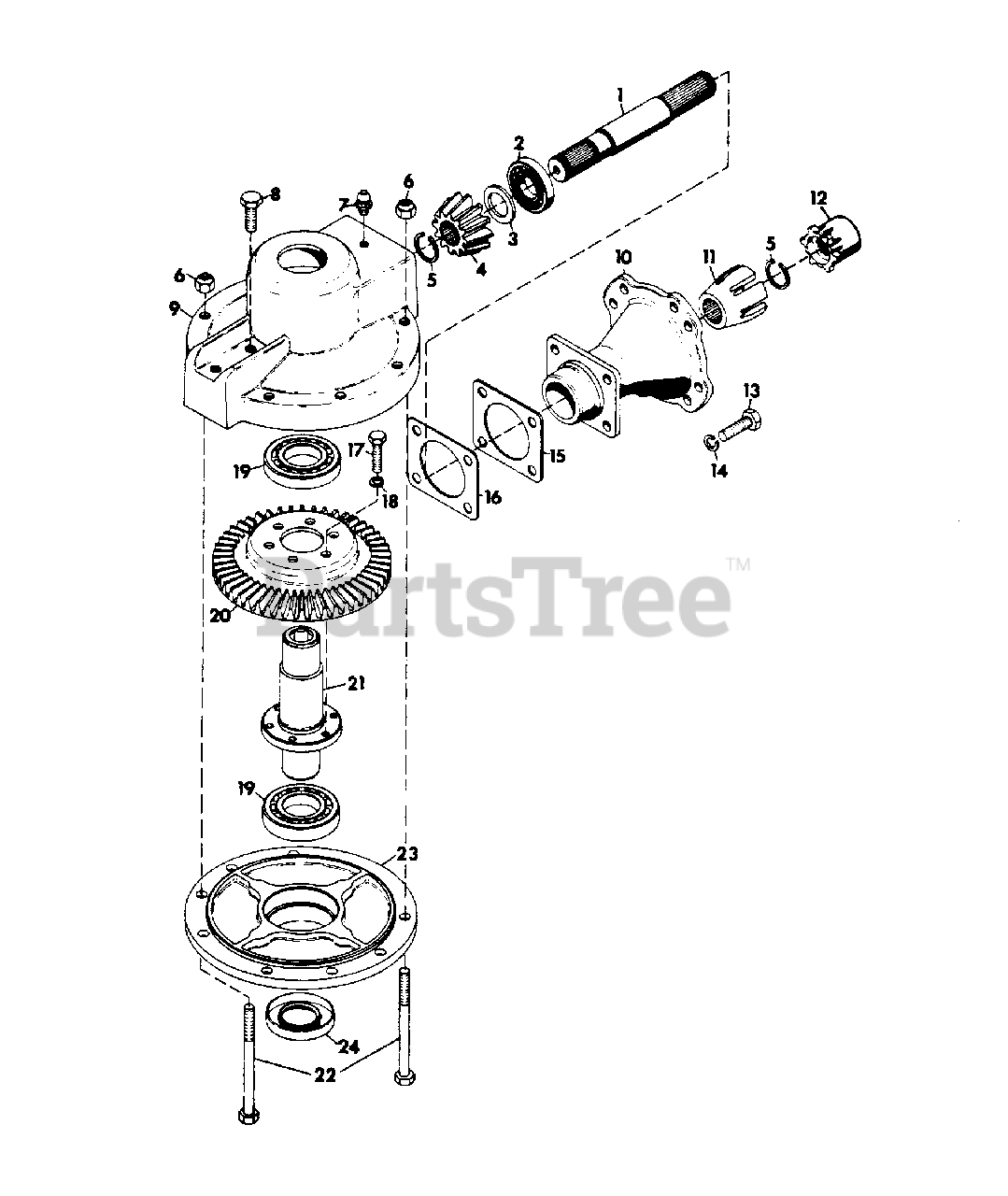

PLOW/CULTIVATOR DRIVE Parts Diagram

  • Title

1

Gravely 022225

SHAFT, DRIVE
(Superseded to 08521800)

$11.99

$

Usually ships in 4-12 days

0

2

Gravely 021929

BEARING, BALL .984X2.047X.591
(Superseded to 05422200)

$15.99

$

In Stock, only 1 left!

0

3

Gravely 022226

RACE, THRUST
(Superseded to 06433300)

$

$

Not available

4

Gravely 022227

PINION, BEVEL ROTARY PLOW
(Superseded to 08903700)

$

$

Not available

5

Gravely 022242

RING, RETAINING .937 SHAFT
(Superseded to 05714100)

$

$

Not available

6

Gravely 413534

NUT, LOCK 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 411027

FITTING, LUBE 1/4-28
(Superseded to 07012600)

$

$

Not available

8

Gravely 180171

BOLT, HEX 1/2-13X.75
(Superseded to 05971800)

$2.49

$

In Stock, only 1 left!

0

9

Gravely 022221

HOUSING, GEAR
(Superseded to 08521653)

$517.99

$

Usually ships in 4-12 days

0

10

Gravely 022228

HOUSING, DRIVE SHAFT
(Superseded to 08521900)

$216.99

$

Usually ships in 4-12 days

0

11

Gravely 022240

CLUTCH, DOG
(Superseded to 08522400)

$

$

Not available

12

Gravely 021343

DOG, ATTACHMENT
(Superseded to 08516400)

$249.99

$

Usually ships in 4-12 days

0

13

Gravely 180175

BOLT, HEX 1/2-13X1.25
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

14

Gravely 120384

WASHER, LOCK 1/2 REG.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 17

0

15

Gravely 022230

SHIM, .005
(Superseded to 08546000)

$

$

Not available

16

Gravely 022231

SHIM, .020
(Superseded to 08545900)

$

$

Not available

17

Gravely 180121

BOLT, HEX 3/8-16X.875
(Superseded to 05932600)

$2.49

$

In Stock, only 1 left!

0

18

Gravely 120382

WASHER, LOCK 3/8-REG.
(Superseded to 06300116)

$0.99

$

In Stock, Qty 19

0

19

Gravely 022241

BEARING, BALL 2.155X3.543X.709
(Superseded to 05422900)

$

$

Not available

20

Gravely 043904

GEAR, BEVEL
(Superseded to 08553500)

$

$

Not available

21

Gravely 022219

HUB, BEVEL GEAR
(Superseded to 08521500)

$68.99

$

Usually ships in 4-12 days

0

22

Gravely 180132

BOLT, HEX 3/8-16X2.25
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

23

Gravely 022222

PLATE, GEAR HOUSING
(Superseded to 08521753)

$

$

Not available

24

Gravely 022223

SEAL, OIL 2.165X3.250X.375
(Superseded to 05616100)

$35.99

$

Usually ships in 4-12 days

0
