78502 - Toro 60" Turbo Force Mower Finishing Kit for Z500 Triple Soft Bagger 60 INCH TRIPLE BAGGER FINISHING ASSEMBLY Parts Diagram

60" Turbo Force Mower Finishing Kit for Z500 Triple Soft Bagger

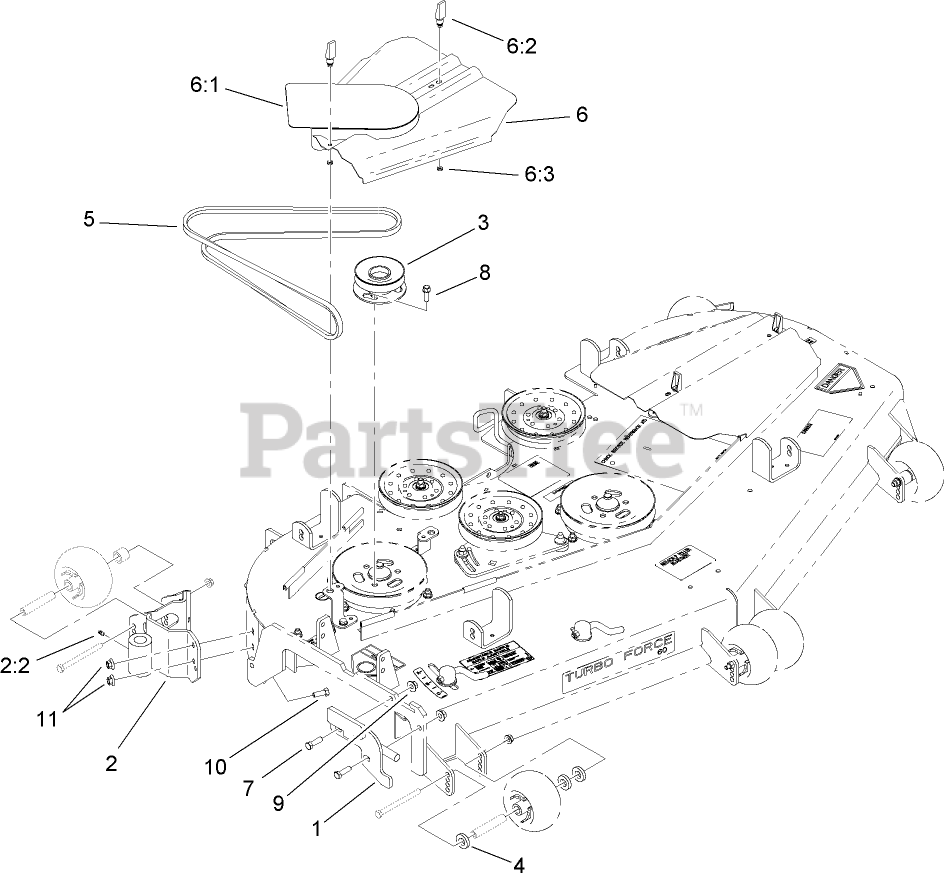

60 INCH TRIPLE BAGGER FINISHING ASSEMBLY Parts Diagram

  • Title

1

Toro 106-3448-03

FRONT HINGE ASM

$

$

Not available

2

Toro 110-3904

REAR HINGE ASM
(Superseded to 110-3941)

$367.99

$

Usually ships in 3-6 days

0

2:2

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 18

0

3

Toro 110-0349

PULLEY ASM

$193.99

$

Usually ships in 3-6 days

0

4

Toro 1-323539

SPACER

$2.49

$

In Stock, Qty 20+

0

5

Toro 106-3038

Belt-V

$72.99

$

Usually ships in 3-6 days

0

6

Toro 107-1628

LATCH AND COVER ASM

$

$

Not available

6:1

Toro 107-3217-01

BELT COVER ASM

$

$

Not available

6:2

Toro 74-5950

LATCH-SWELL

$22.99

$

In Stock, Qty 18

0

6:3

Toro 99-3058

WASHER

$3.49

$

In Stock, Qty 20+

0

7

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

8

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

9

Toro 32128-43

NUT-FLANGE

$1.49

$

In Stock, Qty 7

0

10

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

11

Toro 32128-19

NUT-HF

$1.49

$

In Stock, Qty 20+

0
