785037 - Gravely Head Light for 2-Wheel Tractor LIGHT KIT Parts Diagram

Head Light for 2-Wheel Tractor

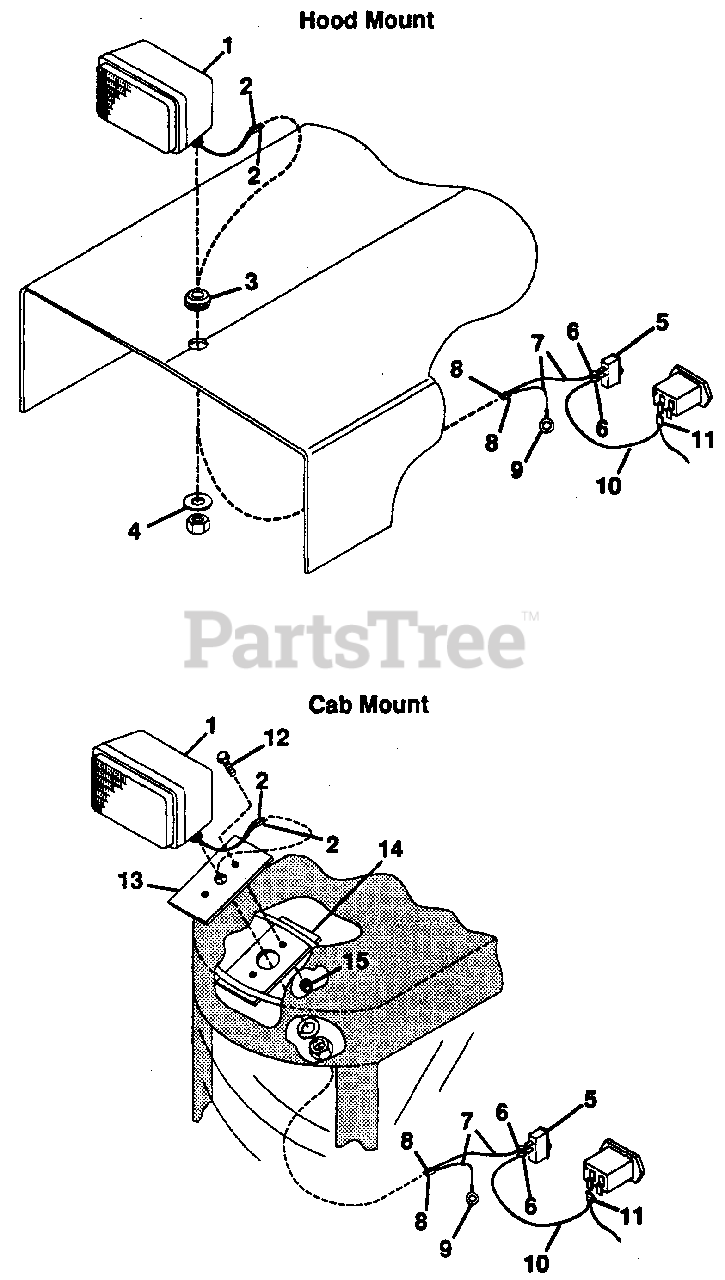

LIGHT KIT Parts Diagram

  • Title

1

Gravely 045513

Headlamp, 3x5x Halogen
(Superseded to 08969000)

$

$

Not available

2

Gravely 046136

Terminal, Male
(Superseded to 08973800)

$

$

Not available

3

Gravely 035518

Grommet
(Superseded to 07504200)

$6.49

$

Usually ships in 4-12 days

0

4

Gravely 417098

Washer, Flat .531x1.000x.063
(Superseded to 06401115)

$0.99

$

In Stock, only 2 left!

0

5

Gravely 046060

Switch, Light
(Superseded to 08973300)

$7.49

$

In Stock, Qty 7

0

6

Gravely 046184

Terminal, Female 1-Wire 16 Ga.
(Superseded to 08563300)

$

$

Not available

7

Gravely 046134

Wire, #1
(Superseded to 08563100)

$

$

Not available

8

Gravely 046137

Terminal, Female
(Superseded to 08973900)

$

$

Not available

9

Gravely 046133

Terminal, Ring Tongue
(Superseded to 08563000)

$

$

Not available

10

Gravely 046135

Wire, #2
(Superseded to 08563200)

$

$

Not available

11

Gravely 046132

Terminal, Female 2-Wire
(Superseded to 08973700)

$

$

Not available

12

Gravely 180022

Bolt, Hex 1/4-20x1.00
(Superseded to 05901639)

$1.99

$

In Stock, Qty 7

0

13

Gravely 045934

Bracket, Cab Top
(Superseded to 08562000)

$

$

Not available

14

Gravely 045935

Bracket, Cab Bottom
(Superseded to 08562100)

$

$

Not available

15

Gravely 419454

Nut, Lock 1/4-20
(Superseded to 06500832)

$5.49

$

In Stock, only 1 left!

0

NS

Gravely 010629

Tie, Cable
(Superseded to 07517300)

$1.49

$

Usually ships in 4-12 days

0
