78508 - Toro 44" Finishing Kit for Z100 and Z400 Twin Soft Bagger 44IN FINISHING KIT ASSEMBLY Parts Diagram

44" Finishing Kit for Z100 and Z400 Twin Soft Bagger

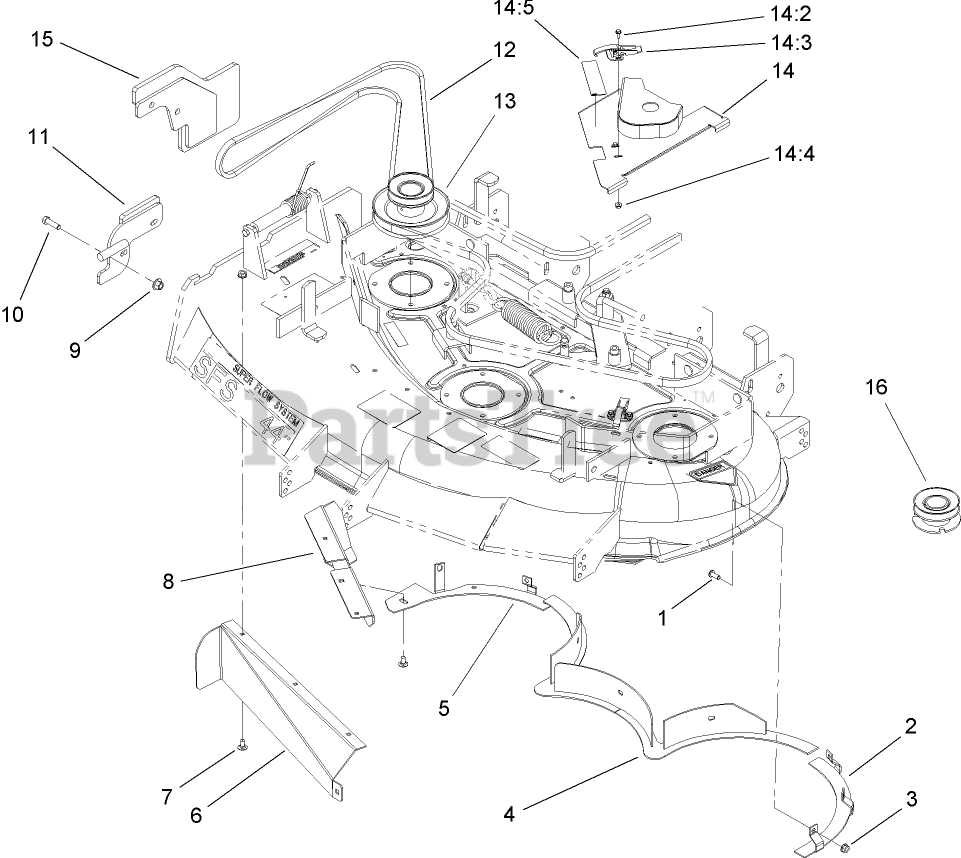

44IN FINISHING KIT ASSEMBLY Parts Diagram

  • Title

1

Toro 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 6

0

2

Toro 106-3021-01

Baffle-Rear, LH

$103.99

$

Usually ships in 3-6 days

0

3

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 19

0

4

Toro 106-3015-01

Center Baffle ASM

$171.99

$

Usually ships in 3-6 days

0

5

Toro 106-3022-01

Baffle-Rear, RH

$103.99

$

Usually ships in 3-6 days

0

6

Toro 106-3023-01

Baffle-Discharge, Front

$119.99

$

Usually ships in 3-6 days

0

7

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 13

0

8

Toro 106-3020-01

Baffle-Discharge, Rear

$

$

Not available

9

Toro 32128-43

NUT-FLANGE

$1.49

$

In Stock, Qty 7

0

10

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

11

Toro 106-3382-03

FRONT HINGE ASM

$

$

Not available

12

Toro 106-3038

Belt-V

$72.99

$

Usually ships in 3-6 days

0

13

Toro 105-5897

Double Pulley ASM

$548.99

$

Usually ships in 3-6 days

0

14

Toro 106-3078

Cover ASM

$

$

Not available

14:2

Toro 3290-321

SCREW-HWH

$4.49

$

In Stock, only 2 left!

0

14:3

Toro 249-21

CLAMP-SLOTTED

$19.99

$

In Stock, only 2 left!

0

14:4

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 20+

0

14:5

Toro 67-5360

DECAL-DANGER

$13.99

$

In Stock, only 1 left!

0

15

Toro 106-0830-03

REAR MOUNTING PLATE ASM

$

$

Not available

16

Toro 108-2760

PULLEY ASM (Extra pulley included for Z400 models)

$

$

Not available

17

Toro 106-2095-03

TEMPLATE (Not illustrated)

$

$

Not available
